Capacity: 160~2000×104Kcal/h
Pressure: 0.8-1.1MPa
Fuel: Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc.
Application: Chemical Industry, Plastics Industry, Textile Industry, Rubber Industry, Food Industry, Fores Product Industry, Paint Industry, Pharmaceutical Industry Distillation, etc.…

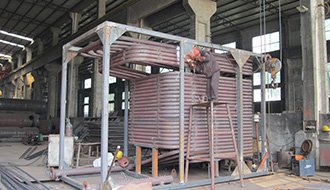

Boiler body adopts densely arranged coil structure with a large diameter combustion chamber, to ensure that the fuel has enough combustion space and can be burned more fully, the boiler has sufficient heating surface and enough output.

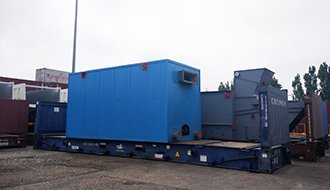

Horizontal chain grate coal fired thermal oil boiler is divided into upper body and lower grate. It is easy to install and has short installation time. As long as the upper body and lower grate are closed together, the installation cost of users are greatly reduced.

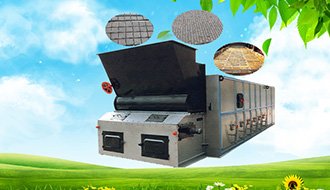

Boiler grate is made of high quality "medium and high silicon heat resistant nodular cast iron" material. It is suitable for burning all kinds of inferior bituminous coal, lignite, lean coal and biomass fuels, has strong burning resistance, oxidation resistance and long service life.

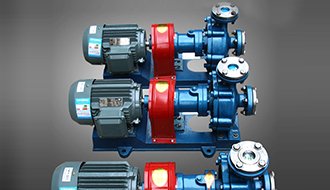

The thermal oil boiler system adopts high-quality circulating oil pump, which has good high temperature resistance and corrosion resistance, lower power consumption, lower failure rate, and can run steadily for a long time without leakage.

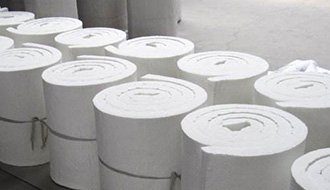

The boiler adopts special aluminium silicate insulation material and special construction technology to reduce the heat loss. An air preheater is installed at the tail to absorb the heat of the flue gas, reduce the exhaust gas temperature and improve the thermal efficiency.
Find the capacity of the coal fired thermal oil boiler you want and check other parameters of the boiler as a reference.
Item | Horizontal Chain Grate Coal Fired Thermal Oil Boiler | ||||||||||||||||
Rated thermal power | kw | 1900 | 2300 | 2900 | 3500 | 4100 | 4700 | 5900 | 7000 | 8200 | 9400 | 12000 | 14000 | 16500 | 17500 | 19000 | 23500 |
×104(Kcal/h) | 160 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | 1400 | 1500 | 1500 | 2000 | |
Boiler thermal efficiency % | 82 | 83 | 83 | 83 | 83 | 83 | 84 | 84 | 84 | 84 | 84 | 85 | 85 | 85 | 85 | 85 | |
Design pressure Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Medium circulation flow m3/h | 160 | 160 | 200 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 500 | 620 | 800 | 1000 | 1000 | 1000 | |
Medium volume m3 | 1.7 | 2.6 | 3 | 3.2 | 3.5 | 4.1 | 4.6 | 6.2 | 8.9 | 12.6 | 13.6 | 14.8 | 16.5 | 18.2 | 19.7 | 22.3 | |
Main pipe diameter DN | 150 | 150 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 350 | 400 | 400 | 400 | |
Installation capacity kw | 75 | 77 | 100 | 100 | 120 | 140 | 175 | 215 | 215 | 270 | 315 | 380 | 460 | 540 | 600 | 620 | |
Fuel type | Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc. | ||||||||||||||||
Fuel consumption | Coal kg/h | 307.01 | 367.17 | 462.95 | 558.73 | 654.51 | 750.30 | 930.65 | 1104.16 | 1293.44 | 1482.73 | 1892.84 | 2182.34 | 2572.04 | 2727.92 | 2961.74 | 3663.21 |
Biomass kg/h | 443.69 | 530.63 | 669.06 | 807.49 | 945.91 | 1084.34 | 1344.98 | 1595.74 | 1869.30 | 2142.86 | 2735.56 | 3153.94 | 3717.15 | 3942.43 | 4280.35 | 5294.12 | |
Boiler weight | ton | 25 | 32 | 33 | 39 | 41 | 67 | 70 | 80 | 98 | 108 | 115 | 130 | 140 | 170 | 197 | 225 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
