Capacity: 15~160×104Kcal/h
Pressure: 0.8-1.1MPa
Fuel: Soft Coal, Anthracite, Bituminous Coal, Lignite, Poor Coal, etc.
Application: Food Plant, Chemical Plant, Textile Mill, Plastic Products Factory, Pharmaceutical Factory, Rubber Processing Plant, Petroleum Industry...

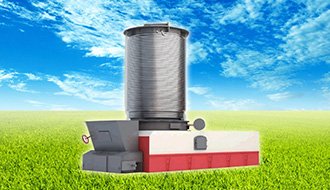

The heating surface of the boiler body adopts densely arranged coil structure, which consists of inner, middle and outer multi-layer circular coils. The flue gas is S-shaped flow, multi-pass heat transfer, with high heat transfer coefficient and high thermal efficiency.

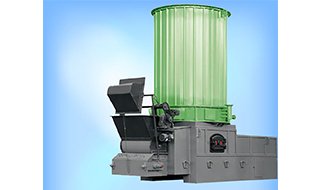

The boiler has its own new type coal feeder, and the fuel automatically enters the furnace to ensure the uninterrupted supply of coal. Feeding coal automatically and removing slag automatically, lower labor intensity, saving labor costs for enterprises.

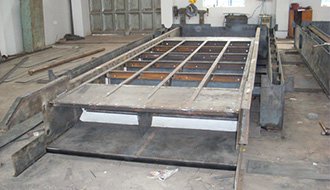

The grate of thermal oil boilers adopts independent air chamber, air flow is adjusted independently, so that coal combustion is more fully, and the boiler system does not emit black smoke, the environmental protection effect is good and it can save more fuel costs.

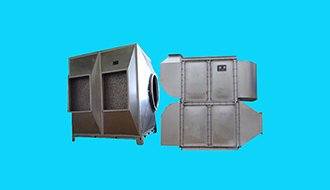

A high efficiency air preheater is installed at the tail of the boiler to absorb the heat of the flue gas from the tail of the boiler and preheat air, so as to reduce the temperature of the flue gas and heat loss, further improve the thermal efficiency of the boiler.

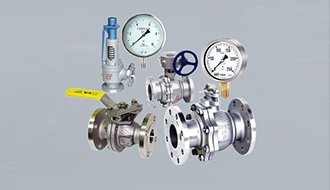

The boiler leaves the factory in the form of fast-assembled, the installation period is short, and it is equipped with high quality special instruments and valves for thermal oil boilers, which have good sealing, accurate measurement,stability and reliability, and long service life.
Find the capacity of the coal fired thermal oil boiler you want and check other parameters of the boiler as a reference.
Item/Type | Coal Fired Thermal Oil Boiler | ||||||||||
Rated thermal power | kw | 180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1600 | 1900 |
×104(Kcal/h) | 15 | 25 | 30 | 40 | 60 | 80 | 80 | 120 | 140 | 160 | |
Boiler thermal efficiency % | 73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 | |
Design pressure MPa | 1.1 | ||||||||||
Max. working temperature ℃ | 320 | ||||||||||
Medium circulation flow m3/h | 12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 | |
Main pipe diameter DN | 40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 | |
Installation capacity kw | 8.5 | 15 | 18/15 | 24/20 | 28/25 | 45/40 | 53/48 | 60/55 | 60 | 80/73 | |
Fuel type | Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc. | ||||||||||
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
