Capacity: 1~20T/h
Pressure: 1.0 ~ 2.5 MPa
Fuel: Biomass Pellets, Wood Chips, Rice Husk, Sawdust, Charcoal, Straw, Oat Hulls, Palm Kernel Shell, Coconut Shell, etc.
Application: Textile Mills, Garment Factories, Food Factories, Beverage Factories, Bean Products Factories, Meat Products Factories, Canneries, Pharmaceutical Factories, Packaging Factories, Building Materials Factories, Paint Factories…Biomass Fired Steam Boiler manufacturers

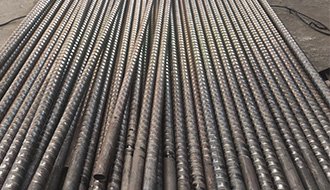

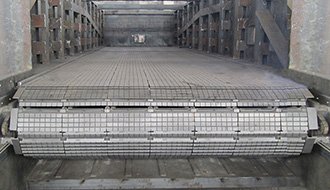

The chain grate biomass fired steam boiler uses high-efficiency heat transfer element-threaded flue gas tube with reasonable heating surface and flue gas velocity, which makes the boiler thermal efficiency 6-8 percentage points higher than the national standard. The boiler adopts a high-strength chain grate or scale-type grate. Roller wheel device is assembled for the large grate. The combustion efficiency reaches 99.9%, saving more than 10% of coal consumption.
According to different fuel properties, the boiler structure is customized. Let the boiler system perfectly conform to the three principles of EPCB boilers production: 1. No waste of fuel (no leakage and complete combustion); 2. No discharge of excess exhaust gas (micro negative pressure combustion, ensure complete combustion while controlling air volume to reduce heat loss); 3. No loss of heat (reasonable insulation layer, to lock the heat of boiler).
The large diameter of the drum makes the water volume of the boiler large, the steam-water separation easier, and there is almost no excess water in the steam. The drum is equipped with a threaded flue gas pipe, which can exchange heat more fully between high-temperature flue gas and water. Compared with ordinary boilers, steam quality can be improved by more than 50% and thermal efficiency can be increased by more than 20%.

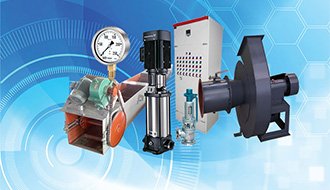

Boiler auxiliaries and accessories will be configured for you according to your actual needs. The dust removal effect meets your requirements. The boiler system is more in line with your factory's actual needs, saving you money in an all-round way! EPCB has designed boilers systems for more than 15000 enterprises, which has helped them save a lot of unnecessary expenses! They all recognize us very much.

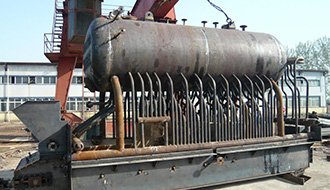

The large drum at the top connects with two headers at the bottom, and the water flow is more stable and uniform. Compared with ordinary boilers, this structure is more stable, compact and reasonable, which can be used for various fuels. Combined with reasonable air ducts, the heat exchange between the high-temperature flue gas and convection tube bundle and water wall is more sufficient. Produce the same unit of steam, save at least 30% of the fuel!
Find the capacity of the biomass fired steam boiler manufacturers you want and check other parameters of the boiler as a reference.
Item/Type | Single Drum Chain Grate Biomass Fired Steam Boiler | |||||||||
Rated capacity t/h | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | |
Rated steam pressure MPa | 0.7/1.25 | 0.7/1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | |
Rated steam temperature ℃ | 170/194 | 170/194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | |
Feed water temperature ℃ | 20 | |||||||||
Boiler thermal efficiency % | 78.1 | 80.2 | 82.3 | 82.5 | 82.5 | 82.9 | 82.9 | 83.1 | 83.1 | |
Body heating area m2 | 22.99 | 48.7 | 96.34 | 148.15 | 174.4 | 226.2 | 276 | 374.5 | 669 | |
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, | ||||||||
Coal kg/h | 118.76 | 231.30 | 450.79 | 674.54 | 899.39 | 1118.81 | 1342.57 | 1674.18 | 2232.23 | |
Biomass kg/h | 171.63 | 334.27 | 651.48 | 974.85 | 1299.81 | 1616.92 | 1940.30 | 2419.54 | 3226.05 | |
Size of boiler largest parts | Length | 4600 | 5800 | 6700 | 7000 | 7300 | 7600 | 7600 | 8500 | 9500 |
Width | 1900 | 2600 | 2700 | 3000 | 3000 | 3200 | 3200 | 3400 | 3800 | |
Height | 2900 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 7100 | |
Weight of boiler | 18 | 22 | 30.1 | 40 | 21/14 | 23/17 | 23/19 | 21/24 | 25/24 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
