EPCB Coal Steam Boiler series, adopts new boiler design, with large heating surface. Advanced steam-water separation technology, high efficiency economizer and other auxiliary machines are adopted to save energy and protect the environment. The highest thermal efficiency can reach 84.61%.
More >>
EPCB coal fired thermal oil boiler series, new structure, complete combustion, fast heating, less heat loss, automatic control system can better control the operation of the boiler. It can save at least 3% of the fuel cost every year.
More >>
EPCB coal fired hot water boiler series, with the advantages of full combustion, high thermal efficiency and fewer pollution emissions, etc., has won many world standards certifications and has been recognized by the majority of users.
More >>
EPCB oil/gas fired steam boiler, with 3-pass wet back structure, equipped with automatic control system, is easy to operate, fully saves manpower costs, installs high-efficiency economizer, saves fuel costs, and is widely used in textile, printing and dyeing, food, chemical industry, medicine and other industries.
More >>
EPCB oil/gas thermal oil boiler, using imported Italian burner, burning more fully; The internal structure of the boiler with high heat transfer efficiency can raise the temperature more quickly. Adequate heating surface, small heat loss, complete testing instruments, with a safe and reliable, simple operation, wide application industry and other characteristics.
More >>
EPCB oil/gas fired hot water boiler series, equipped with original imported burner, combines corrugated furnace and threaded flue pipe perfectly, greatly increases the heating area, equipped with high-standard energy-saving equipment, the thermal efficiency of the boiler can reach more than 96%.
More >>
EPCB biomass fired steam boilers series, adopts threaded flue pipes with high heat transfer efficiency, three-pass boiler structure, reasonable water circulation circuit, strong radiation arch design, etc. to make the boiler more efficient, more energy-saving and more environmentally friendly.
More >>

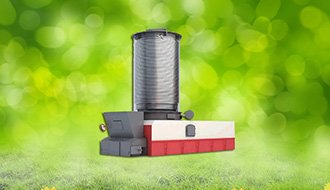

EPCB Biomass Thermal Oil Boiler series, has reasonable arrangement of radiation heating surface and convection heating surface, higher heat transfer efficiency and longer service life of boilers. Boiler adopts three-pass coil structure, closed cycle heating, compact structure, high degree of assembly, more safe to use.
More >>
EPCB Biomass Hot Water Boiler series, can use a variety of biomass fuels, and fully burned. Reasonable boiler structure and heating surface arrangement can effectively improve the thermal efficiency of the boiler! Now it is widely used in heating, bathing, laundry and other fields!
More >>
Electric steam boiler is a new type of electric heating equipment which converts electric energy into heat energy. It is also manufactured in accordance with boiler safety supervision regulations and boiler industry standards in design. It has the advantages of high intelligence, fast heating, high thermal efficiency, no noise, no pollution and so on.
More >>
Industrial Electric Hot Water Boiler is a kind of mechanical equipment which uses electric power as energy and metal tubular electric heater to heat water, so that electric energy can be directly converted into heat energy to produce hot water. It is widely used in hotels, houses, laundries, swimming pools, hospitals and other places requiring heating supply.
More >>
Capacity: 15~160×104Kcal/h
Pressure: 0.8-1.1MPa
Fuel: Biomass Pellet, Wood Chips, Sawdust, Palm Hulls, Oat Hulls, Rice Husks, Biomass Particles, Sunflower Seed Hulls, Coconut Hulls, etc.
Application: Food Plant, Chemical Plant, Textile Printing & Dyeing Plant, Plastic Products Factory, Pharmaceutical Factory, Rubber Processing Plant, Petroleum Industry, Building Materials Industry...

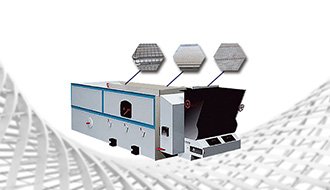

This series of chain grate biomass fired thermal oil boilers are vertical coil pipes packages boilers. The grate and the main body are integrated when delivery. After installing the valves, instruments auxiliaries, and pipelines, it can be put into use directly.
With biomass as fuel, the boiler can customize suitable grate patterns according to the size of different solid fuels, such as chain grate, reciprocating grate, small scale grate, etc., to meet the user's requirements for the adaptability of various fuels.

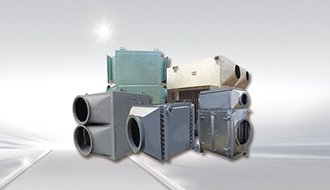

A high efficiency air preheater is installed at the tail of the boiler to absorb the heat of the flue gas from the tail of the boiler and preheat air, so as to reduce the temperature of the flue gas and heat loss, further improve the thermal efficiency of the boiler.

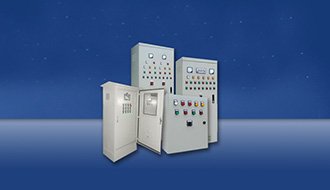

Boiler uses high-end intelligent control cabinet, using world-renowned electrical components such as Siemens/Schneider, can automatically implement protective alarm in normal, accident and unusual conditions, to ensure the safe and stable operation of the boiler.
Boiler can obtain high working temperature under low pressure, and can control medium temperature with high precision, can meet the precise temperature requirements of various industries. It is widely used in petrochemical industry, synthetic fiber industry, textile printing and dyeing industry, plastics &rubber industry, etc.
Find the capacity of the biomass-fired hot oil boilers system you want and check other parameters of the boiler as a reference.
Item/Type | Vertical Chain Grate Biomass Fired Thermal Oil Boiler | ||||||||||
Rated thermal power | kw | 180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1600 | 1900 |
×104(Kcal/h) | 15 | 25 | 30 | 40 | 60 | 80 | 80 | 120 | 140 | 160 | |
Boiler thermal efficiency % | 73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 | |
Design pressure MPa | 1.1 | ||||||||||
Max. working temperature ℃ | 320 | ||||||||||
Medium circulation flow m3/h | 12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 | |
Main pipe diameter DN | 40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 | |
Installation capacity kw | 8.5 | 15 | 18/15 | 24/20 | 28/25 | 45/40 | 53/48 | 60/55 | 60 | 80/73 | |
Fuel type | Biomass Pellet, Wood Chips, Sawdust, Palm Hulls, Oat Hulls, Rice Husks, Biomass Particles, Sunflower Seed Hulls, Coconut Hulls, etc. | ||||||||||
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
