Capacity: 50~500kg/h
Pressure: 0.4 MPa~0.7 MPa
Application: Food Factory, Candy Factory, Knitting Mill, Textile Mill, Garment Plant, Printing & Dyeing Mill, Chemical Plant, Packing Plant, Laundry Room, Sauna Room, Laboratory, School...
Capacity: 50~500kg/h
Pressure: 0.4 MPa~0.7 MPa
Application: Food Factory, Candy Factory, Knitting Mill, Textile Mill, Garment Plant, Printing & Dyeing Mill, Chemical Plant, Packing Plant, Laundry Room, Sauna Room, Laboratory, School...

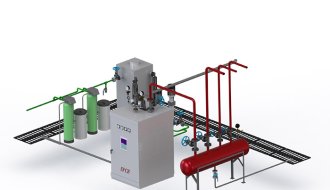

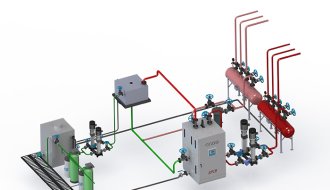

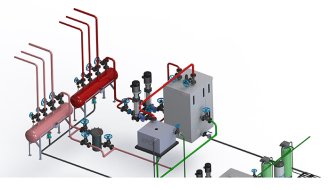

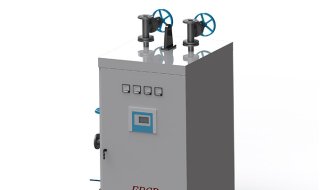

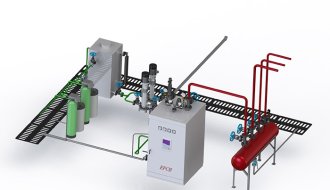

The square design, the electric heating tube is installed from the side of the industrial most efficient electric steam boiler, the entire heating process is completed inside the drum, the steam-water separation system design is reasonable, and the steam quality is further improved. Boiler pressure, water level, temperature, and other monitoring instruments are placed on the front. The whole structure is more reasonable and more compact and only takes up very little space. Save the design cost of the boiler room.
The industrial most efficient electric steam boiler electric heating tube is a well-known brand in China, which has better heating effect. The reasonable arrangement of boiler electrode tubes promotes the internal water circulation of the boiler, allowing boiler water to form high-quality steam more quickly. EPCB electric steam boiler can effectively save energy for you 3 %, Has the advantages of fast operation and high steam production efficiency, and is loved by the majority of users.
The boiler safety always is the first position in the manufacture of EPCB boilers! Various data can be reflected in time through the instrument panel of the display screen, and the boiler's ultra-high pressure interlock protection system is effectively used to control the use of the boiler. Stop the furnace in time when there is a situation. For more than 30 years, we have been consistent and loved by users!
In order to allow users in more countries to use fully automatic energy-saving industrial most efficient electric steam boiler, EPCB has passed a variety of standard tests. Now it has passed ISO9001, AEME, CE, and other standards. Whether it is energy-saving or safe and convenient, there are proofs! Buy boiler? Choose the EPCB boiler!
EPCB has always been committed to "manufacture the boiler more suitable for you and make you and your company more dynamic", customize the boiler system suitable for their actual situation for users, and will save more costs for customers from multiple aspects. We now serve more than 15,000 companies and factories. Some have expanded the company's scale and bought a lot of boilers again! Because we really care about our customers, we always stay here.
Find the capacity of the industrial most efficient electric steam boiler you want and check other parameters of the boiler as a reference.
Item\Type | Automatic Vertical Electric Heating Steam Boiler | |||||
Rated heat capacity kw | 36 | 75 | 144 | 216 | 360 | |
Rated steam capacity t/h | 0.05 | 0.1 | 0.2 | 0.3 | 0.5 | |
Rated working pressure MPa | 0.4 | 0.4/0.7 | 0.4/0.7 | 0.7 | 0.7 | |
Power * class number Kw * n | 12*3 | 15*5 | 24*6 | 24*9 | 24*15 | |
Saturated steam temperature °C | 154 | 154/170 | 154 | 154/170 | 170 | |
Designed thermal efficiency (%) | ≥98 | |||||
Rated operational voltage | ~ 380 V | |||||
Mode of connection | three-phase three-wire system | |||||
Steam caliber DN | 20 | 25 | 40 | 40 | 50 | |
Inlet diameter DN | 20 | 25 | 25 | 25 | 25 | |
Safe valve diameter DN | 25 | 40 | 40 | 40 | 40 | |
Blowdown valve diameter DN | 25 | 40 | 40 | 40 | 40 | |
Boiler Weight Kg | 160 | 220 | 420 | 500 | 1980 | |
Outlook size | Length mm | 700 | 890 | 1180 | 1220 | 1916 |
Width mm | 470 | 700 | 960 | 980 | 1336 | |
Height mm | 1250 | 1310 | 1470 | 1520 | 2700 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
