Product Advantage

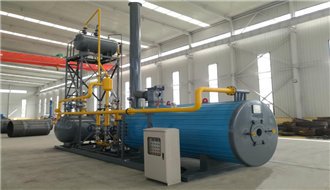

  • Skid-mounted-Hot-Oil-Heater-System

    The assembly of the skid-mounted hot oil heater system is designed by professional technicians in the factory and completed by professional boiler manufacturing technicians. Through the quality inspection of the 8 quality assurance system of Dongneng boiler, the installation workload of the user is very small, and it can be directly put into use after connecting the pipeline and wiring. It has the characteristics of a quick start and a reliable system. And the use site can be transferred at will.

  • Skid-mounted-Hot-Oil-Heater-Feature

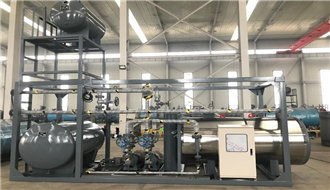

    Most of the equipment of the boiler system is installed on the same base, which has all the functions of the traditional nonskid boiler system, and is easy to move as a whole, compact in structure, and occupies less space than the traditional boiler installation. Do not need using a boiler room, save a cost of investment, construction cost.

  • Skid-mounted-Hot-Oil-Heater-Installation

    During the installation of the skid-mounted boiler, all welding is carried out by high-level workers in the factory, ensuring the welding quality, and debugging all equipment before leaving the factory, making the boiler system safer than the traditional hot oil heater system.

  • Skid-mounted-Hot-Oil-Heater-Control-System

    The boiler control system provides a variety of detection means for heat transfer oil flow, temperature, pressure; fuel flow, temperature, pressure, liquid level, exhaust, air multi-point temperature, combustion state, etc., and conducts various matching degree tests to achieve complete matching and ensure the safe and normal use of the boiler.

  • Skid-mounted-Hot-Oil-Heater-Auxiliary

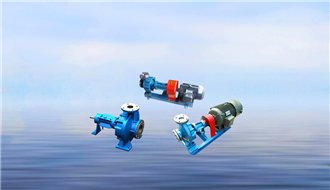

    Equipped with high-quality air-cooled and water-cooled high-temperature circulating oil pump. The pump body and motor are installed on the base, and the system is reasonable in accordance with the technical principles, so as to avoid in complete compliance of the installed parts on site. The utility model has the advantages of strong thermal adaptability, good sealing performance, high-temperature corrosion resistance, etc. Reliable use, saving operation cost.

Product Video
Technical Parameters

Find the capacity of the ski-mounted type oil/gas-fired hot oil heater you want and check other parameters of the boiler as a reference.

Item\Model

Skid-mounted (Modular) Type Oil/Gas Thermal Oil Boiler

Rated thermal power

KW

350

500

700

930

1200

1400

2000

×104 Kcal/h

30

40

60

80

100

120

160

Boiler thermal efficiency %

92

Design pressure MPa

1.1

Max.temperature of medium ℃

300

Medium circulation flow m3/h

30

30

60

80

100

100

160

Medium volume m3

0.25

0.4

0.51

0.68

0.74

1

1.6

Installation capacity KW

9

9

16.5

23.5

23.5

38.5

46.5

Fuel & consumption

Diesel kg/h

27.11

38.73

54.22

72.04

92.95

108.44

154.92

Natural gas Nm3/h

32.43

46.33

64.86

86.17

111.18

129.71

185.31

Boiler body size mm

Length

2526

2935

3665

3950

4325

4750

5000

Width

1510

1510

1910

1910

2135

2135

2150

Height

1656

1656

2080

2080

2250

2250

2560

Boiler body weight kg

1600

1800

3160

3490

4630

5000

7535

Overall dimension of modular type mm

Length

6200

6800

8200

9500

Width

2100

2100

2100

2400

Height

5500

5500

5700

6000

Overall weight of modular type kg

4000

5000

7000

12000

No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set
