Product Advantage

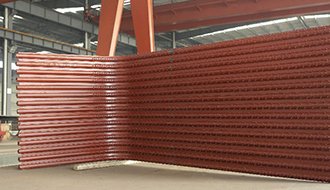

  • EPCB water tube steam boiler special water wall

    In order to allow the textile mill to be put into production faster, we increased the density of the tubes and at the same time increased the number of tubes. The water pipe of the steam boiler is in better contact with the high-temperature flue gas. This can make the boiler temperature rise faster.

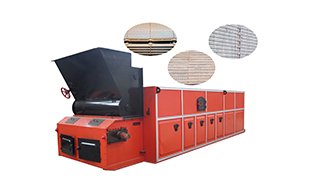

  • Special chain grate for EPCB water tube steam boiler.

    The chain grate is more flexible and can be applied to a variety of fuels. The air duct layout is more reasonable, and the speed control is more intelligent. The water tube steam boiler has a higher fuel utilization rate and your textile factory is more energy-efficient.

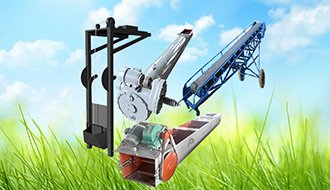

  • Special auxiliary equipment for water tube steam boiler in textile mill.

    The fuel delivery system has a high degree of automation, which can reduce labor costs. Dust and slag removal equipment for textile mills. Can make the environment cleaner. Improve product quality.

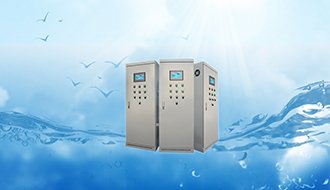

  • Smarter water tube steam boiler control system

    The Water tube boiler is equipped with full automatic PLC liquid crystal display touch screen electronic control system, with multiple interlocking protection program, which can digitally monitor the operation of the boiler and accurately feedback various data of the boiler.

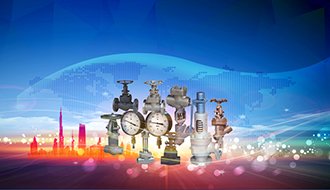

  • Valves & Instruments of What tube Boiler

    The valves and instruments for the boiler system are well-known brands in the world or in China. They have superior performance, high precision and long service life, help users monitor the various indicators of the boiler better and ensure that the boiler operates in a safe state.

Technical Parameters

Choose the right parameters and let us design a more suitable water tube steam boiler solution for you. If you have no good ideas, you can contact us. Let us find a way together.

Item/Type

Water Tube Steam Boiler for Textile Factory

Rated capacity t/h

4

6

8

10

12

15

20

25

Rated steam pressure MPa

1.25/1.6/2.5

Rated steam temperature ℃

194/204/226

Feed water temperature ℃

20

20

60

60

60

104

104

104

Thermal efficiency %

81.54

81.6

81.8

82.2

82.5

82.5

82.8

83.7

Heating surface m2

Boiler body

99.68

155.5

181.63

233.6

298

316.7

456

625.3

Economizer

69.76

140.6

183.1

209.3

209.3

225

242.4

267.8

Fuel & consumption

Fuel type

Class II Soft Coal, Biomass, Wood Chips, Wood Pellets,
 Rice Husk, Palm Kernel Shell, etc.

Coal kg/h

454.99

681.98

907.08

1128.34

1349.08

1686.35

2240.32

2770.29

Biomass kg/h

657.55

985.61

1310.93

1630.69

1949.71

2437.14

3237.74

4003.66

Size of boiler largest parts mm

Length

7500

6800

6900

7900

8100

9300

11500

11500

Width

2800

3200

3100

3400

3100

3300

3300

3300

Height

3500

3500

3500

3500

3500

3500

3500

3500

Weight of largest
parts of boiler ton

30

40

55

45/30

50/30

52/31

55/34

56/37



No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set



Company Strength

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
