EPCB Coal Steam Boiler series, adopts new boiler design, with large heating surface. Advanced steam-water separation technology, high efficiency economizer and other auxiliary machines are adopted to save energy and protect the environment. The highest thermal efficiency can reach 84.61%.
More >>
EPCB coal fired thermal oil boiler series, new structure, complete combustion, fast heating, less heat loss, automatic control system can better control the operation of the boiler. It can save at least 3% of the fuel cost every year.
More >>
EPCB coal fired hot water boiler series, with the advantages of full combustion, high thermal efficiency and fewer pollution emissions, etc., has won many world standards certifications and has been recognized by the majority of users.
More >>
EPCB oil/gas fired steam boiler, with 3-pass wet back structure, equipped with automatic control system, is easy to operate, fully saves manpower costs, installs high-efficiency economizer, saves fuel costs, and is widely used in textile, printing and dyeing, food, chemical industry, medicine and other industries.
More >>
EPCB oil/gas thermal oil boiler, using imported Italian burner, burning more fully; The internal structure of the boiler with high heat transfer efficiency can raise the temperature more quickly. Adequate heating surface, small heat loss, complete testing instruments, with a safe and reliable, simple operation, wide application industry and other characteristics.
More >>
EPCB oil/gas fired hot water boiler series, equipped with original imported burner, combines corrugated furnace and threaded flue pipe perfectly, greatly increases the heating area, equipped with high-standard energy-saving equipment, the thermal efficiency of the boiler can reach more than 96%.
More >>
EPCB biomass fired steam boilers series, adopts threaded flue pipes with high heat transfer efficiency, three-pass boiler structure, reasonable water circulation circuit, strong radiation arch design, etc. to make the boiler more efficient, more energy-saving and more environmentally friendly.
More >>

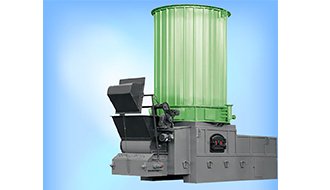

EPCB Biomass Thermal Oil Boiler series, has reasonable arrangement of radiation heating surface and convection heating surface, higher heat transfer efficiency and longer service life of boilers. Boiler adopts three-pass coil structure, closed cycle heating, compact structure, high degree of assembly, more safe to use.
More >>
EPCB Biomass Hot Water Boiler series, can use a variety of biomass fuels, and fully burned. Reasonable boiler structure and heating surface arrangement can effectively improve the thermal efficiency of the boiler! Now it is widely used in heating, bathing, laundry and other fields!
More >>
Electric steam boiler is a new type of electric heating equipment which converts electric energy into heat energy. It is also manufactured in accordance with boiler safety supervision regulations and boiler industry standards in design. It has the advantages of high intelligence, fast heating, high thermal efficiency, no noise, no pollution and so on.
More >>
Industrial Electric Hot Water Boiler is a kind of mechanical equipment which uses electric power as energy and metal tubular electric heater to heat water, so that electric energy can be directly converted into heat energy to produce hot water. It is widely used in hotels, houses, laundries, swimming pools, hospitals and other places requiring heating supply.
More >>
System type: high temp heating circulating conveying system in the food industry
Boiler fuel: solid fuel, coal, biomass, etc.
System features: fuel saving, stable heating, customized design, easy to install and debug.
Boiler application: pasta factory, meat factory, sugar factory, etc.
Help you save more fuel costs. The internal coil of the system adopts 3 layers or close-packed coils to allow the flue gas to fully exchange heat with the hot oil. Fully absorb the heat in the flue gas to avoid the waste of fuel. Compared with the ordinary structure, less fuel can meet the production needs.
Avoid shutting down the boiler due to insufficient fuel and affecting production. When the fuel supply is insufficient, the system will alarm and turn on the fuel supply system by itself to replenish fuel. Avoid the uncontrollable factors of manual feeding.
In order to help you save the cost of buying a thermal oil boiler. We even take into account the process of fuel combustion. Combining with the fuel you provide, we optimize the combustion system to make the fuel burn more fully to help you save fuel costs.
To help you reduce product costs, we increase fuel utilization and reduce fuel purchase costs. We put our idea on the exhaust gas of the heat-conducting oil boiler, lowering the temperature of the exhaust gas to 130°C, and then using the recovered heat energy for the production of the entire factory. And in operation.
In order to meet your production needs, the thermal oil boiler system can operate stably for a longer period of time. We have set up more than 10 system protection measures. Let the system self-protect and self-adjust due to operating errors, and continue to supply heat to the factory.
Find the capacity of the coal fired thermal oil boiler you want and check other parameters of the boiler as a reference.
Item/Type | Thermal Oil Boiler for Food Industry Coal Fired | ||||||||||
Rated thermal power | kw | 180 | 300 | 350 | 460 | 700 | 1000 | 1200 | 1400 | 1600 | 1900 |
×104(Kcal/h) | 15 | 25 | 30 | 40 | 60 | 80 | 80 | 120 | 140 | 160 | |
Boiler thermal efficiency % | 73 | 73 | 73 | 73 | 76 | 76 | 76 | 76 | 78 | 78 | |
Design pressure MPa | 1.1 | ||||||||||
Max. working temperature ℃ | 320 | ||||||||||
Medium circulation flow m3/h | 12.5 | 40 | 40 | 60 | 80 | 100 | 100 | 100 | 100 | 160 | |
Main pipe diameter DN | 40 | 80 | 80 | 100 | 100 | 125 | 125 | 125 | 125 | 150 | |
Installation capacity kw | 8.5 | 15 | 18/15 | 24/20 | 28/25 | 45/40 | 53/48 | 60/55 | 60 | 80/73 | |
Fuel type | Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc. | ||||||||||
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
