System type: fuel gas industrial hot oil boiler system
Boiler fuel: gas fuel, liquid fuel
System features: fuel saving, labor saving, stable heat supply.
Boiler application: drying, extraction, heating and other processes.
System type: fuel gas industrial hot oil boiler system
Boiler fuel: gas fuel, liquid fuel
System features: fuel saving, labor saving, stable heat supply.
Boiler application: drying, extraction, heating and other processes.

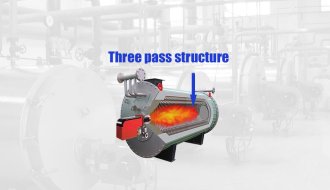

Use less fuel to generate more heat, and use this heat to the greatest extent in factory production. The fuel is almost fully burned, the heat is absorbed by the hot oil to the greatest extent, and the exhaust gas is fully recovered and reused. The cost of fuel used by factories has plummeted.

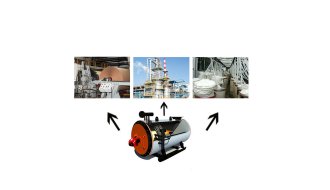

Lightning heating technology, the hot oil circulation speed is increased to the extreme, and quickly heated to the required temperature, and then transported to the factory production line. The industrial hot oil boiler system, customized according to the production process, can be more in line with the heat use scene and save more fuel.

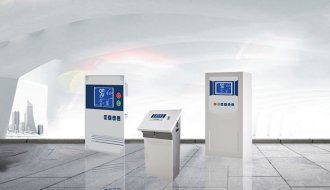

According to the characteristics of the industry, modern intelligent technology is used to optimize the operation process of the hot oil boiler system. The controller can use the program to control and operate the overall operation of the boiler system. Purchasing this system is as if you have purchased a robot that will help you work.

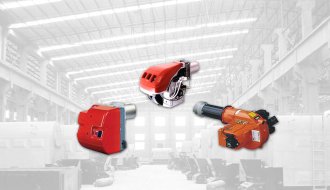

The amount of air entering is basically the same as that required for complete combustion of the fuel. The combustion process of the hot oil boiler system has also been further optimized. The fuel completely releases heat. In the flue gas emitted, nitrogen oxides and sulfur oxides are less than 20mg/m³.

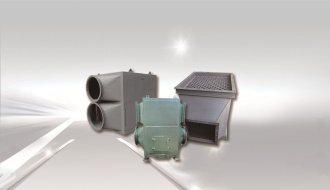

The energy-saving system of the hot oil boiler can fully recover the heat in the high-temperature flue gas and apply it to factory production. Factory power generation, factory life, etc., use the heat released by the fuel to the maximum extent in your factory. To enhance your potential competitiveness.
Choose the parameters that suit your industrial hot oil boiler and contact us. We can help you design a cost-saving and reliable hot oil boiler system. If you are not sure, it does not matter, contact us directly and we will assist you in your choice.
Item/Type | Industrial Hot Oil Boiler Oil Gas Fired Fuel Saving | |||||||||||||||||||
Rated thermal power | kw | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 15000 | 16000 |
×104(Kcal/h) | 30 | 50 | 75 | 100 | 130 | 150 | 250 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1400 | |
Boiler thermal efficiency % | 92 | 92 | 92 | 92 | 92 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 94 | 94 | 94 | 94 | 94 | |
Design pressure MPa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Medium circulation flow m3/h | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | 800 | |
Medium volume m3 | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 21 | 23 | |
Main pipe diameter DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 350 | |
Installation capacity kw | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | 341 | |
Fuel type | Diesel, Fuel Oil, Heavy Oil, Natural Gas, LPG, City Gas, Coke Oven Gas, Methane Gas, Biogas, Furnace Oil, etc. | |||||||||||||||||||
Fuel consumption | Diesel kg/h | 29.79 | 51.06 | 76.59 | 102.12 | 127.65 | 151.54 | 193.63 | 244.15 | 294.66 | 395.68 | 496.71 | 589.32 | 690.34 | 791.37 | 874.57 | 999.51 | 1166.09 | 1249.39 | 1332.68 |
Natural gas Nm³/h | 36.42 | 62.44 | 93.66 | 124.88 | 156.11 | 185.31 | 236.79 | 298.56 | 360.33 | 483.87 | 607.41 | 720.66 | 844.20 | 967.74 | 1069.49 | 1222.27 | 1425.98 | 1527.84 | 1629.70 | |
Boiler size m | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | 3.23×6.7 | 3.26×7.45 | 3.26×7.9 | 3.62×9 | 3.6×9.48 | 3.65×10.4 | 3.65×10.6 | 3.98×11.5 | 4×12.2 | 4.06×12.5 | |
Circulating oil pump | Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | 125-100-257 | 125-100-260 | 150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 125-100-260 | 150-125-270A | 150-125-280A | 150-125-280 |
Flow m³/h | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 200×2 | 260×2 | 300×2 | 300×2 | 340×2 | 400×2 | 400×2 | |
Head m | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | 78 | |
Power kw | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | 75 | 90 | 110 | 55×2 | 75×2 | 90×2 | 90×2 | 110×2 | 132×2 | 132×2 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
