Boiler Type:High Temp Special Thermal Oil Boiler System
Boiler Certification: CE, EAC, GB, ASME, Every you want to get.
Boiler Performance: Durable, Reliable,
Boiler Fuel: Diesel, Natural Gas, heavy oil, LPG, etc.
Boiler Type:High Temp Special Thermal Oil Boiler System
Boiler Certification: CE, EAC, GB, ASME, Every you want to get.
Boiler Performance: Durable, Reliable,
Boiler Fuel: Diesel, Natural Gas, heavy oil, LPG, etc.

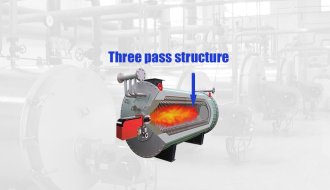

The close-packed coil structure of the high-temperature thermal oil boiler uses the inner part of the boiler as a multi-level heating environment, and the high-temperature hot oil gradually enters the inner layer from the outer layer of the coil through the oil separator. The hot oil flows at high speed, and the temperature can still be kept stable at the temperature required by the factory. Provide continuous and stable high temp environment for factory production.

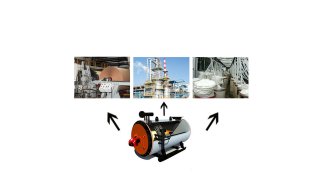

According to the factory's application of thermal energy, a high-temperature thermal oil boiler system can be customized, and the maximum thermal oil temperature can reach 340°C. And it can effectively use the heat released by the fuel in all aspects of factory production. At the same time, we provide comprehensive services. Let the whole system create a more stable and continuous high temperature environment for your factory production.

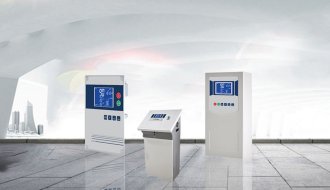

Integrate the electronic components of world-class brands, such as Siemens, Schneider, etc., into a control system. Through programming, the chip collects the operating data of the thermal oil boiler system and aggregates it into a computer or LED display. Intuitive feedback on the use of high-temperature thermal oil boilers. System control is simpler.

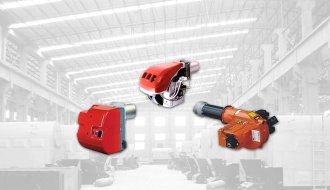

The combustion system of the high-temperature thermal oil boiler is determined according to the physical and chemical properties of the fuel, but they have several common characteristics: the supplier is a world brand, such as Riello, Patek, etc. The degree of intelligence is high, and it can be well connected with the control system. The fuel will burn more thoroughly and release more heat energy.

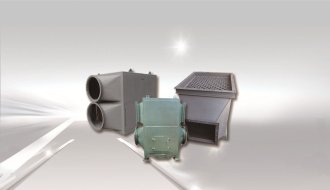

Combined with the production process of the factory, we can convert the heat energy released by the fuel into various energy required by the factory, which can be used in production to maximize the fuel utilization rate. In addition to heating hot oil, it can also produce steam, hot water, and power generation. Form a comprehensive system solution. Reduce your costs when processing orders.
Find the capacity of the high-temp 340℃ thermal oil boilers system you want and check other parameters of the boiler as a reference.
Item/Type | 340℃ Thermal Oil Boiler System | |||||||||||||||||||
Rated thermal power | kw | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 15000 | 16000 |
×104(Kcal/h) | 30 | 50 | 75 | 100 | 130 | 150 | 250 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1400 | |
Boiler thermal efficiency % | 92 | 92 | 92 | 92 | 92 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 94 | 94 | 94 | 94 | 94 | |
Design pressure MPa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. working temperature ℃ | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | |
Medium circulation flow m3/h | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | 800 | |
Medium volume m3 | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 21 | 23 | |
Main pipe diameter DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 350 | |
Installation capacity kw | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | 341 | |
Fuel type | Diesel, Fuel Oil, Heavy Oil, Natural Gas, LPG, City Gas, Coke Oven Gas, Methane Gas, Biogas, Furnace Oil, etc. | |||||||||||||||||||
Fuel consumption | Diesel kg/h | 29.79 | 51.06 | 76.59 | 102.12 | 127.65 | 151.54 | 193.63 | 244.15 | 294.66 | 395.68 | 496.71 | 589.32 | 690.34 | 791.37 | 874.57 | 999.51 | 1166.09 | 1249.39 | 1332.68 |
Natural gas Nm³/h | 36.42 | 62.44 | 93.66 | 124.88 | 156.11 | 185.31 | 236.79 | 298.56 | 360.33 | 483.87 | 607.41 | 720.66 | 844.20 | 967.74 | 1069.49 | 1222.27 | 1425.98 | 1527.84 | 1629.70 | |
Boiler size m | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | 3.23×6.7 | 3.26×7.45 | 3.26×7.9 | 3.62×9 | 3.6×9.48 | 3.65×10.4 | 3.65×10.6 | 3.98×11.5 | 4×12.2 | 4.06×12.5 | |
Circulating oil pump | Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | 125-100-257 | 125-100-260 | 150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 125-100-260 | 150-125-270A | 150-125-280A | 150-125-280 |
Flow m³/h | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 200×2 | 260×2 | 300×2 | 300×2 | 340×2 | 400×2 | 400×2 | |
Head m | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | 78 | |
Power kw | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | 75 | 90 | 110 | 55×2 | 75×2 | 90×2 | 90×2 | 110×2 | 132×2 | 132×2 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
