Capacity: 0.35~14MW
Pressure: 0.7~2.5MPa
Fuel: Diesel, Natural Gas, City Gas, LPG, Heavy Oil, CNG, LNG, Fuel Oil, Light Oil, Biogas, etc.
Application: Hotel, School, Greenhouse, Swimming Pool, Departments, Catering Industry, Service Industry, Bathing Industry, Fitness Center, Pharmaceutical Industry, Metallurgical Industry, Food Industry...

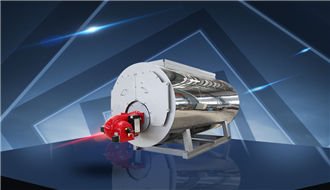

This series of hot water boiler is atmospheric pressure hot water boiler. Compared with pressurized hot water boiler, the service life of atmospheric pressure hot water boiler is much longer, the maintenance is very simple, and the use is safer, without explosion risk.

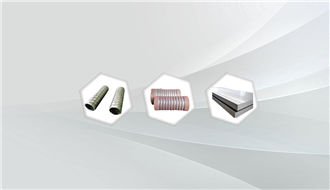

The heating surface is composed of corrugated furnace, smooth pipe and threaded pipe symmetrically. The high temperature flue gas flows through three pass, then is discharged into the atmosphere, which enhances the heat transfer efficiency of the boiler.
The boiler system is equipped with world famous brand burner, and the fuel can be fully burned; meanwhile, it is equipped with full automatic water treatment equipment and high-quality circulating water pump to effectively guarantee the stable operation of the boiler system.

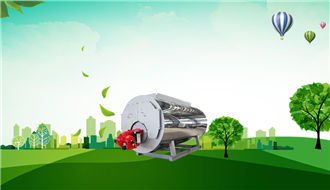

The series of hot water boilers have been tested by the national environmental protection department, The blackness of the flue gas is lower than the Greenman blackness Level-I standard, which meets the national environmental protection requirements, and is an ideal environmental protection product.

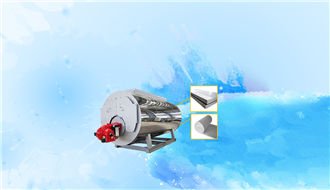

This series of hot water boiler adopts ceramic fiber with high thermal insulation performance as the thermal insulation layer, and the shell adopts stainless steel plate or color steel plate as the furnace cover, which is small in size and beautiful in appearance, and is suitable for installation and use in various workshops.
Find the capacity of the fire tube gas-fired hot water boilers you want and check other parameters of the boiler as a reference.
Item | Automatic Horizontal Atmospheric Pressure Fire Tube Oil Gas Fired Hot Water Boiler | ||||||||||||||||
Capacity MW | 0.35 | 0.48 | 0.58 | 0.7 | 0.94 | 1.05 | 1.2 | 1.4 | 1.75 | 2.1 | 2.45 | 2.8 | 3.5 | 4.2 | 5.6 | 7 | |
Rated working pressure MPa | 0 | ||||||||||||||||
Supply/return water temperature ℃ | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | 85/60 | |
Design efficiency ％ | ≥ 96 | ||||||||||||||||
Heating surface of boiler m2 | 11.7 | 16.6 | 16.6 | 19.64 | 33.5 | 33.5 | 37.17 | 39.59 | 45 | 58.78 | 70.33 | 76.8 | 95.1 | 114.4 | 190.2 | 224 | |
Boiler water capacity m³ | 0.98 | 1.465 | 1.47 | 1.95 | 2.02 | 2.215 | 2.85 | 2.85 | 2.95 | 3.5 | 5.1 | 5.15 | 6.9 | 8.3 | 11.8 | 13.1 | |
Supply water diameter DN | 65 | 80 | 80 | 100 | 100 | 125 | 100 | 125 | 200 | 150 | 150 | 200 | 150 | 200 | 200 | 200 | |
Return water diameter DN | 65 | 80 | 80 | 100 | 100 | 125 | 100 | 125 | 200 | 150 | 150 | 200 | 150 | 200 | 200 | 200 | |
Atmospheric pipe diameter DN | 65 | 65 | 65 | 80 | 100 | 100 | 100 | 125 | 200 | 125 | 150 | 150 | 180 | 180 | 200 | 200 | |
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 40 | 50 | 50 | 50 | 50 | 50 | |
Fuel consumption | Diesel kg/h | 33.2 | 54.1 | 55.2 | 64.2 | 85.4 | 96.1 | 112.2 | 133.2 | 165.5 | 195 | 190.8 | 264.2 | 330.5 | 384.1 | 516.9 | 667.5 |
Natural gas Nm³/h | 39.8 | 64.2 | 65.8 | 76.9 | 102.5 | 115.6 | 134.4 | 156.8 | 193.5 | 193.5 | 228.7 | 317.2 | 388.5 | 463.1 | 620.1 | 775.7 | |
Transportation weight ton | 1.3 | 2 | 2.2 | 2.6 | 3.2 | 3.5 | 4 | 4.1 | 4.5 | 4.6 | 6.55 | 8.5 | 8.2 | 10 | 13.3 | 14.85 | |
Largest transportation size | L (mm) | 2200 | 2800 | 2850 | 3000 | 3100 | 3190 | 3500 | 3550 | 3800 | 4080 | 4370 | 4600 | 5200 | 5600 | 5950 | 6900 |
W (mm) | 1200 | 1320 | 1350 | 1420 | 1550 | 1550 | 1650 | 1650 | 1700 | 1750 | 2050 | 1880 | 2100 | 2300 | 2400 | 2600 | |
H (mm) | 1500 | 1660 | 1680 | 1850 | 1950 | 1950 | 2100 | 2200 | 2200 | 2250 | 2450 | 2300 | 2550 | 2700 | 2800 | 2900 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
