Capacity: 0.35~4.2MW
Pressure: 0~1.0MPa
Fuel: Wood, Biomass, Charcoal, Coconut Shell, Corncob, Waste Fabric, Jute, etc.
Application: Hospitals, Hotels, Schools, Beverage Factories, Farms, Laundries, Swimming Pools, Canneries, Beauty Salons, Bathing Centers, Office Buildings, District Heating...

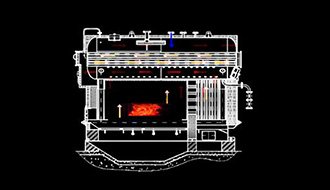

The series of hot water boilers adopt horizontal three-pass structure, equipped with large diameter boiler drum, effectively increase the area of the radiation heating surface, make the boiler heating up quickly, and ensure enough hot water output.

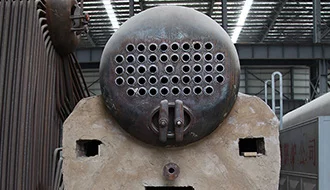

Boiler adopts arched tube sheet and threaded flue gas tube, which transforms quasi-steel structure into quasi-elastomer structure. It enhances heat transfer, improves thermal efficiency, reduces welding stress and avoids cracking of tube sheet.

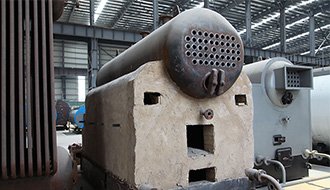

The boiler wall is made of heat-resistant concrete and high-temperature refractory bricks, which have good leak-proof performance and no air leakage. Moreover, the boiler is insulated by aluminium silicate plate, which greatly reduces the heat loss of the boiler.

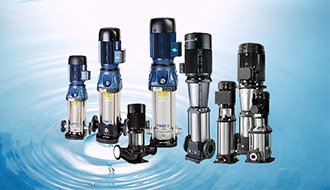

Boiler system runs steadily, water supply is sufficient, equipped with the world-famous brand Groudfos or CNP feed water pump and circulating water pump, effectively control the water circulation of boiler system, making the system run more stable.

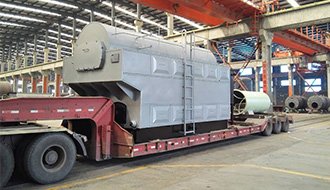

The series of manual biomass fired hot water boilers are packages boilers, they have compact and reasonable structure, convenient to hoist and transport. And they are simple and fast for installation, which can save a lot of installation and transportation costs for users.
Find the capacity of the biomass fired hot water boiler you want and check other parameters of the boiler as a reference.
Item\Type | Single Drum Fixed Grate Manual Biomass Fired Hot Water Boiler | |||
Rated capacity MW | 0.35 | 0.7 | 1.4 | |
Rated steam pressure MPa | 0.7 | 0.7 | 0.7 | |
Supply water temperature ℃ | 95 | 95 | 95 | |
Return water temperature ℃ | 70 | 70 | 70 | |
Heated area m2 | radiation / convection | 2.3/16.2 | 4.55/20.12 | 6.17/39.5 |
Suitable fuel type | Coal / Wood / Charcoal / Jute / Fabric, ect. | |||
Boiler heat efficiency % | 79.6 | 81 | 81.6 | |
Fuel consumption kg/h | 84.2 | 165.48 | 227.33 | |
Effective area of grate m2 | 0.98 | 1.5 | 2.4 | |
Transportation size of boiler mm | length | 2970 | 3782 | 4900 |
width | 1950 | 1800 | 2130 | |
height | 2660 | 2870 | 3222 | |
Weight of boiler largest parts (ton) | 7 | 11 | 15.5 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
