Product Advantage

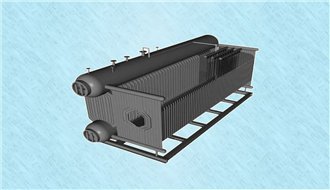

  • D-type-Water-Tube-Boilers

    The series of boilers are double drums D-type water tube boilers. The furnace is formed by covering membrane water wall, which effectively increases the heating surface, makes the water in the boiler fully contact with the flue gas, heat up fast with high thermal efficiency.

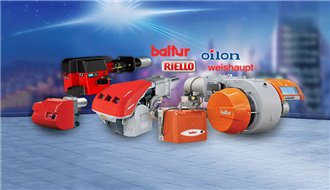

  • Oil-Gas-Fired-Steam-Boiler-Burner

    Equipped with Italian/German/Finnish well-known brand burners, such as Italy's Rello, Baltur; Germany's Weishaupt; Finland's Oilon, etc., make fuel burn more fully, and the emission indicators of pollutants are far below the national emission standards. Nitrogen oxide emissions can be as low as 30 mg/Nm3.

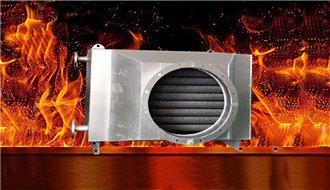

  • Oil-Gas-Fired-Steam-Boiler-Finned-Tube-Economizer

    Equipped with spiral finned tube type high-efficiency economizer, effectively recovering heat energy in flue gas and heating boiler feed water. It can save more fuel costs for users and improve the boiler thermal efficiency!

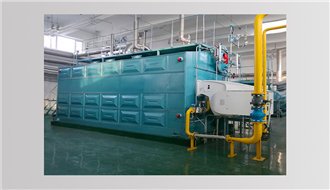

  • Oil-Gas-Fired-Water-Tube-Steam-Boiler

    According to the capacity of the boiler, this series of boilers adopt assembly and semi-assembly structure, which can shorten the installation period effectively, and have compact structure, small installation volume so that they can save users’ investment.

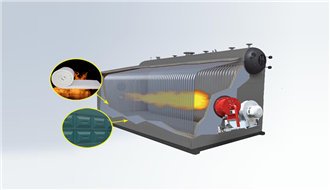

  • Water-Tube-Boiler-Thermal-Insulation-Material

    Boiler body adopts double-layer aluminium silicate material with good thermal insulation performance. The exterior of the boilers adopts concave and convex pressing guard plate, which has beautiful appearance and good air tightness.

Technical Parameters

Find the capacity of the oil/gas fired steam boiler you want and check other parameters of the boiler as a reference.

Item\Model

Automatic Horizontal Water Tube Oil Gas Fired Steam Boiler

Rated steam capacity (Ton/h)

4

6

8

10

15

20

25

30

35

Rated steam pressure MPa

1.25/1.6/2.5

Rated steam temperature ℃

194/203/225/400

Design efficiency %

92.26

92.23

92.22

92.26

92.26

91.99

91.82

91.99

92.17

Feed water temperature ℃

20

105

105

105

105

105

105

105

105

Available fuel

Diesel, heavy oil, natural gas, LPG, city gas, fuel oil, CNG, etc

Fuel consumption

Diesel kg/h

267.45

402.68

535.2

668.6

1002.6

1337.3

1671.6

2005.9

2336.8

Natural gas Nm3/h

329.4

425.9

567.9

709.6

1064.3

1418.4

1773.1

2127.6

2477.4

Overall dimension

Length m

5.2

5.9

7.2

7.8

8.5

9.2

11.4

11

11.2

Width m

2.7

2.7

3.4

3.4

3.6

3.7

3.7

3.9

4.6

Height m

3.2

3.2

3.5

3.6

3.6

3.7

3.8

4.6

5.2

No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set

Auxiliaries
