Product Advantage

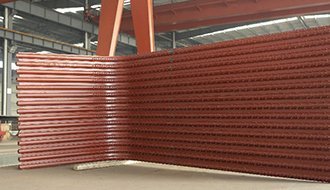

  • The water wall of the special water tube steam boiler in the paper mill.

    Water wall Exclusive patent: Redefine the density of the water wall and increase more heated area. Fully absorb heat from the high-temperature flue gas, and exhaust gas temperature is effectively reduced. Your factory will use less fuel to produce more products than your peers.

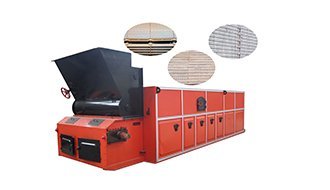

  • Intelligent hearth system dedicated to EPCB boilers.

    The hearth system will be customized according to the characteristics of the fuel. The thickness of the fuel, the feeding speed, and the ratio with the air are all in line with the steam consumption, and can be operated by the intelligent control system. The thermal environment is more stable, and the product qualification rate and quality are improved accordingly.

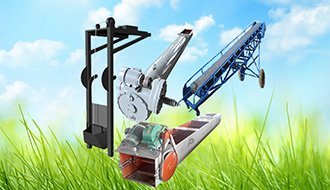

  • Dedicated fuel filling and delivery equipment for paper mills

    Fuel filling and feeding will be more automated, using a control system to automatically control the feeding speed and times according to the fuel situation in the hopper, without manual feeding. Can help you save more labor costs,iImprove the quality of the fuel filling and delivery system, which can last longer and become more stable.

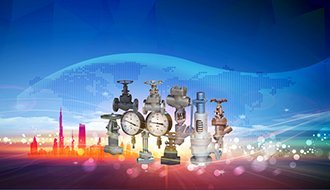

  • Smarter control Water tube steam boiler high quality link valve instrument to manage paper mill and water tube steam boiler system

    Equipped with pressure gauge, safety valve, water level gauge and other protective devices. The pressure gauge shows the pressure of the boiler, the safety valve opens automatically and relieves pressure when the boiler reaches a certain pressure, to ensure the safe and reliable operation of the boiler

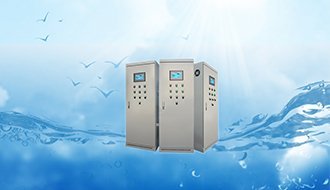

  • Smarter control system to manage paper mill and water tube steam boiler system

    The operation process of the water tube steam boiler is organically combined with the factory production process to form a more intelligent control system. Through intelligent programming and feedback from the electronic display, you can more intuitively make more correct judgments. The boiler system is more reliable. The operation of the factory is more stable.

Technical Parameters

Select the parameters of the Water Tube Steam Boiler that suits your Paper Factory and contact us. We can help you design a cost-saving and reliable heat transfer oil boiler system. If you are not sure, it does not matter, contact us directly and we will assist you in your choice.

Item/Type

EPCB Soap Factory Special Low NOx Emission Biomass Fired Steam Boiler

Rated capacity t/h

4

6

8

10

12

15

20

25

Rated steam pressure MPa

1.25/1.6/2.5

Rated steam temperature ℃

194/204/226

Feed water temperature ℃

20

20

60

60

60

104

104

104

Thermal efficiency %

81.54

81.6

81.8

82.2

82.5

82.5

82.8

83.7

Heating surface m2

Boiler body

99.68

155.5

181.63

233.6

298

316.7

456

625.3

Economizer

69.76

140.6

183.1

209.3

209.3

225

242.4

267.8

Fuel & consumption

Fuel type

Class II Soft Coal, Biomass, Wood Chips, Wood Pellets,
 Rice Husk, Palm Kernel Shell, etc.

Coal kg/h

454.99

681.98

907.08

1128.34

1349.08

1686.35

2240.32

2770.29

Biomass kg/h

657.55

985.61

1310.93

1630.69

1949.71

2437.14

3237.74

4003.66

Size of boiler largest parts mm

Length

7500

6800

6900

7900

8100

9300

11500

11500

Width

2800

3200

3100

3400

3100

3300

3300

3300

Height

3500

3500

3500

3500

3500

3500

3500

3500

Weight of largest
parts of boiler ton

30

40

55

45/30

50/30

52/31

55/34

56/37



No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set



Auxiliaries
Company Strength

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!

  • Send You Inquiry

  • Give You Boiler Solution

  • Place The Order

  • Get Your Boiler

Ask for Boiler Solution Suited Your Condition!

Tell us your need about boiler capacity in your industry, we will recommend the most suitable boiler model for you!
