System type: Three Pass Steam Boiler for Textile Industrial.
Boiler fuel: natural gas, LPG, diesel, gasoline, heavy oil, etc.
System features: saving fuel costs in the Sugar industry, high degree of automation and environmental protection.
Boiler application: Cane sugar, white granulated sugar, brown sugar, candy factory, jelly sugar, etc.

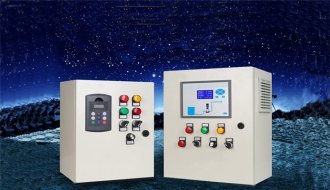

A customized boiler control system makes fire tube steam boiler control more arbitrary. We will configure the electronic control system for you according to your local furnace workers. However, with the development of technology, the operation of the boiler system is becoming more and more intelligent.

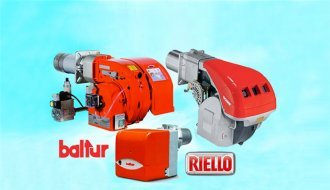

It is equipped with world-class brand burners such as Riello and UNIGAS. Fuel combustion is more in line with your factory production. Use a smaller flame to maintain the boiler temperature when the need of your food factory for steam is low. The fuel loss caused by purging the furnace chamber when starting the boiler system is avoided.

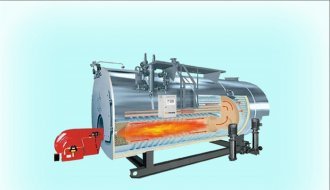

Because the 3-pass fire tube steam boiler system has a more compact structure, it occupies a smaller footprint than other furnace types. Also because of the dense arrangement of fire tubes, the boiler heats up faster. Given the production characteristics of the food industry, this boiler will be more suitable.
We provide professional and comprehensive boiler technical support for every EPCB boiler user. We have been engaged in boiler solution design in the sugar industry for more than 10 years, and thousands of companies have used our boiler system. The boiler system is more in line with your factory production. Combined with perfect after-sales service to help you run the boiler system better.

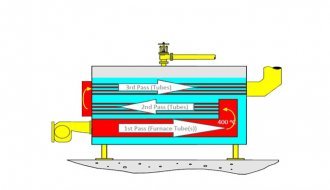

On the basis of the three-pass boiler structure, the flow method of flue gas in the boiler is improved. The direct-flow type is upgraded to the vortex type, and the boiler water will absorb the heat in the high-temperature flue gas more thoroughly. The same boiler capacity can meet the boiler operation requirements with less fuel.
The following are the different parameters corresponding to different boiler capacities of fire tube steam boilers in the food industry. If you are not sure about the boiler capacity you need, you can contact us. We will provide you with the corresponding technical support.
Item/Type | EPCB Special Oil Gas steam boiler for Textile Industry | ||||||||||||
Rated capacity t/h | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 10 | 15 | 20 | |
Rated steam pressure MPa | 0.7/1.0/1.25/1.6 | ||||||||||||
Rated steam temperature ℃ | 170/184/194/204 | ||||||||||||
Boiler thermal efficiency % | 91.2 | 91.8 | 91.7 | 92.4 | 92.55 | 92.6 | 92.5 | 92.9 | 93.1 | 93.4 | 93.5 | 93.7 | |
Body heating area m2 | Boiler body | 13.05 | 21.15 | 33.14 | 45.1 | 67.87 | 80.37 | 110.5 | 140.13 | 194.27 | 142.3 | 218.5 | 275.3 |
Economizer | 10.4 | 18.6 | 20.4 | 26.1 | 30.4 | 43.41 | 46.5 | 57.1 | 74.4 | 112.6 | 155 | 225.5 | |
Boiler water volume m3 | 1.19 | 2.49 | 3.96 | 5.6 | 6.25 | 7.54 | 8.9 | 8.5 | 13.9 | 19.5 | 24.5 | 31.5 | |
Flue diameter mm | φ250 | φ350 | φ380 | φ420 | φ450 | φ520 | 750×410 | 800×410 | 940×520 | 850×500 | 1200×600 | 1500×600 | |
Water inlet diameter DN | 25 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | 50 | 50 | 65 | 80 | |
Main steam valve diameter DN | 50 | 65/25 | 65/40 | 80/40 | 100/40 | 100/40 | 125/40 | 125/40 | 150/40 | 150/40 | 200/50 | 200/65 | |
Safety valve diameter DN | 40 | 50 | 2×40 | 2×40 | 2×40 | 50+40 | 2×50 | 2×65 | 2×65 | 2×80 | 2×100 | 2×100 | |
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 2×50 | 2×50 | 2×50 | |
Fuel consumption | Diesel kg/h | 30.03 | 59.70 | 89.65 | 118.63 | 177.65 | 236.74 | 296.25 | 353.97 | 470.95 | 586.79 | 879.25 | 1169.83 |
Natural gas Nm³/h | 36.72 | 73.01 | 109.63 | 145.07 | 217.25 | 289.51 | 362.28 | 432.40 | 573.44 | 717.57 | 1075.21 | 1430.55 | |
Largest transportation size | Length mm | 2550 | 3100 | 3750 | 3660 | 4600 | 4900 | 5250 | 5850 | 6500 | 6240 | 8500 | 9200 |
Width mm | 1450 | 2200 | 1950 | 2700 | 2200 | 2300 | 2350 | 2400 | 2600 | 2850 | 3500 | 3950 | |
Height mm | 1740 | 2200 | 2250 | 2630 | 2500 | 2650 | 2680 | 2700 | 2850 | 3100 | 4000 | 4350 | |
Largest transportation weight kg | 2300 | 3600 | 4400 | 5300 | 8000 | 8700 | 11200 | 12500 | 17800 | 22000 | 32500 | 40500 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
