Product Advantage

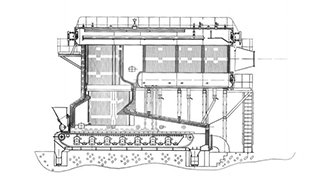

  • Double-Drums-Boiler-Body-Layout

    The layout of grate and arch is more reasonable, ensuring the heating area of grate, improving the reliability of grate operation, making coal burn more fully, fully reducing the heat loss and fly ash loss of incomplete combustion, and effectively improving the furnace temperature.

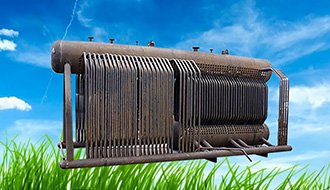

  • Convection-Tube-Bundles

    The convection tube bundles of the boiler body are staggered, and the heating area is larger. It can effectively improve the heat transfer coefficient, so that the boiler can absorb heat more quickly and transfer it to the medium, thereby improving the thermal efficiency of the boiler.

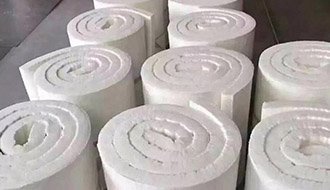

  • Coal-Hot-Water-Boiler-Aluminum-Silicate

    Boiler adopts light aluminium silicate fiber insulation layer, which effectively insulates the outward transfer of heat energy, reduces heat loss of boiler, keeps more heat energy in the boiler system and transfers it to the medium to make the medium temperature rise faster.

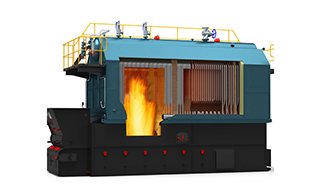

  • Water-Tube-Coal-Fired-Boiler-Layout

    The boiler is equipped with double drums, and large diameter boiler drum, water tube structure and water-cooled combustion chamber design, so that the radiation heating surface can be increased by more than 50%, and the output of the boiler is more sufficient.

  • EPCB-Boiler-Certificate

    EPCB’s boiler products have passed many world standards certification, such as ASME, CE, ISO 9001, EAC, etc. Emissions of boilers can meet the environmental standards of most countries, so that users can buy comfortably and use it with confidence.

Technical Parameters

Find the capacity of the coal fired hot water boiler you want and check other parameters of the boiler as a reference.

Item/Type

Double Drums Chain Grate Coal Fired Hot Water Boiler

Rated capacity MW

2.8

4.2

5.6

7

8.4

10.5

14

Rated working pressure MPa

1

1

1

1

1

1

1.25

Supply water temperature ℃

95

115

115

115

115

115

130

Return water temperature ℃

70

70

70

70

70

70

70

Boiler thermal efficiency %

81

81.2

82.5

83.1

83.2

83.2

83.5

Heating area m2

Boiler body

146.8

155.5

196.7

300

279

322

415.8

Economizer

/

104.6

157

174.4

210

218

413

Fuel & consumption

Fuel type

Class II Soft Coal, etc.

Coal kg/h

458.02

685.34

899.39

1116.12

1337.73

1672.16

2221.54

Biomass kg/h

661.94

990.46

1299.81

1613.03

1933.31

2416.63

3210.60

Size of boiler largest parts
mm

Length

6100

6300

6900

7900

8100

9300

11500

Width

2500

2700

3100

3100

3100

3300

3300

Height

3500

3500

3500

3500

3500

3500

3500

Weight of boiler
largest parts ton

30

43

54

46/29

48/30

49/31

49/37


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Auxiliaries

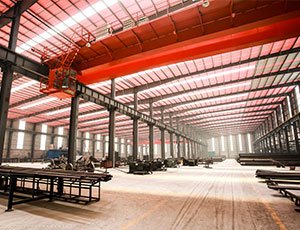

Company Strength

EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
