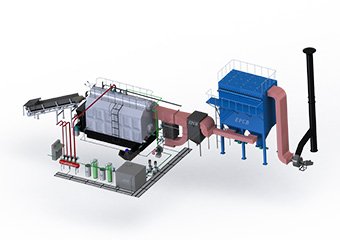

EPCB Coal Steam Boiler series, adopts new boiler design, with large heating surface. Advanced steam-water separation technology, high efficiency economizer and other auxiliary machines are adopted to save energy and protect the environment. The highest thermal efficiency can reach 84.61%.
More >>

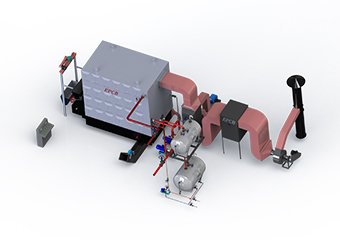

EPCB coal fired thermal oil boiler series, new structure, complete combustion, fast heating, less heat loss, automatic control system can better control the operation of the boiler. It can save at least 3% of the fuel cost every year.
More >>
EPCB coal fired hot water boiler series, with the advantages of full combustion, high thermal efficiency and fewer pollution emissions, etc., has won many world standards certifications and has been recognized by the majority of users.
More >>

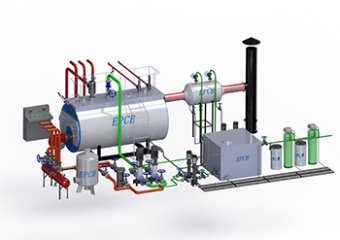

EPCB oil/gas fired steam boiler, with 3-pass wet back structure, equipped with automatic control system, is easy to operate, fully saves manpower costs, installs high-efficiency economizer, saves fuel costs, and is widely used in textile, printing and dyeing, food, chemical industry, medicine and other industries.
More >>

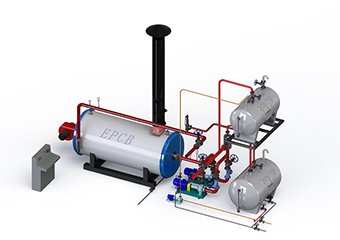

EPCB oil/gas thermal oil boiler, using imported Italian burner, burning more fully; The internal structure of the boiler with high heat transfer efficiency can raise the temperature more quickly. Adequate heating surface, small heat loss, complete testing instruments, with a safe and reliable, simple operation, wide application industry and other characteristics.
More >>

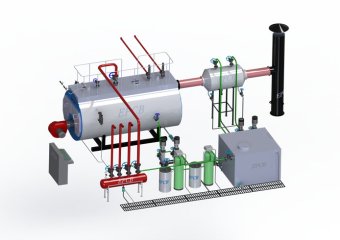

EPCB oil/gas fired hot water boiler series, equipped with original imported burner, combines corrugated furnace and threaded flue pipe perfectly, greatly increases the heating area, equipped with high-standard energy-saving equipment, the thermal efficiency of the boiler can reach more than 96%.
More >>

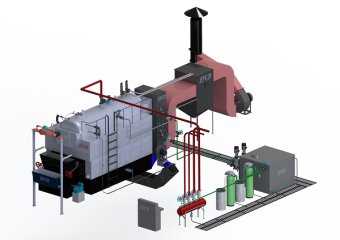

EPCB biomass fired steam boilers series, adopts threaded flue pipes with high heat transfer efficiency, three-pass boiler structure, reasonable water circulation circuit, strong radiation arch design, etc. to make the boiler more efficient, more energy-saving and more environmentally friendly.
More >>
EPCB Biomass Thermal Oil Boiler series, has reasonable arrangement of radiation heating surface and convection heating surface, higher heat transfer efficiency and longer service life of boilers. Boiler adopts three-pass coil structure, closed cycle heating, compact structure, high degree of assembly, more safe to use.
More >>
EPCB Biomass Hot Water Boiler series, can use a variety of biomass fuels, and fully burned. Reasonable boiler structure and heating surface arrangement can effectively improve the thermal efficiency of the boiler! Now it is widely used in heating, bathing, laundry and other fields!
More >>

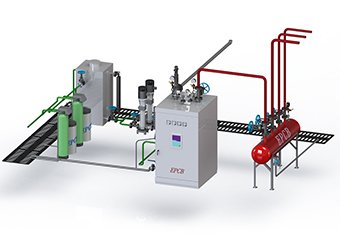

Electric steam boiler is a new type of electric heating equipment which converts electric energy into heat energy. It is also manufactured in accordance with boiler safety supervision regulations and boiler industry standards in design. It has the advantages of high intelligence, fast heating, high thermal efficiency, no noise, no pollution and so on.
More >>
Industrial Electric Hot Water Boiler is a kind of mechanical equipment which uses electric power as energy and metal tubular electric heater to heat water, so that electric energy can be directly converted into heat energy to produce hot water. It is widely used in hotels, houses, laundries, swimming pools, hospitals and other places requiring heating supply.
More >>
Capacity: 1~20T/h
Pressure: 1.0 ~ 2.5 MPa
Fuel: Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc.
Application: Textile Mill, Food Processing Plant, Chemical Plant, Pharmaceutical Factory, Printing and Dyeing Plant, Paper Mill, Oil Processing Plant, Power Plant...

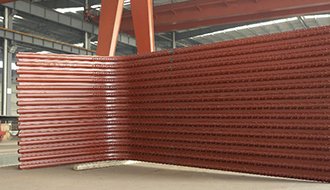

Membrane water wall is adopted to ensure good tightness of the furnace, improve combustion conditions in the furnace, avoid slagging and less air leakage, reduce heat loss of flue gas, improve thermal efficiency of the boiler, and increase the effective radiation heating area.

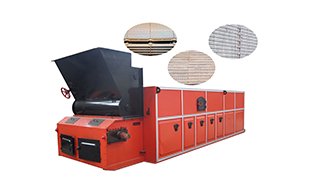

Adopt movable chain grate. According to different fuel characteristics of users, appropriate grate pieces are selected, such as small scale grate, reciprocating grate, etc. The grate has small gap, low coal leakage and high temperature resistance up to 1200℃.

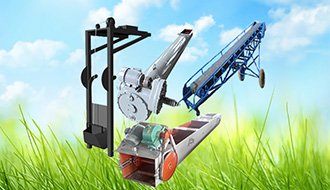

Adopt the mechanical lifting type or belt conveyor type coal feeder, which saves time and labor in coal feeding, and equipped with spiral or scraper type slag remover, automatically conveys ash to the preset position, more convenient to handle, save more manpower costs.

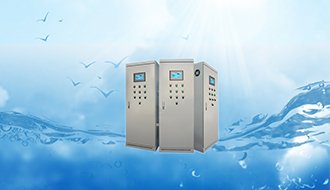

The boiler is equipped with full automatic PLC liquid crystal display touch screen electronic control system, with multiple interlocking protection program, which can digitally monitor the operation of the boiler and accurately feedback various data of the boiler.

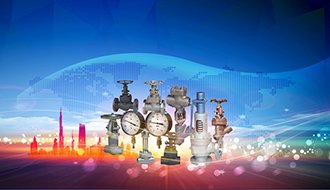

The valves and instruments for the boiler system are well-known brands in the world or in China. They have superior performance, high precision and long service life, help users monitor the various indicators of the boiler better and ensure that the boiler operates in a safe state.
Find the capacity of the coal fired steam boiler you want and check other parameters of the boiler as a reference.
Item/Type | Double Drums Chain Grate Coal Fired Steam Boiler | ||||||||
Rated capacity t/h | 4 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | |
Rated steam pressure MPa | 1.25/1.6/2.5 | ||||||||
Rated steam temperature ℃ | 194/204/226 | ||||||||
Feed water temperature ℃ | 20 | 20 | 60 | 60 | 60 | 104 | 104 | 104 | |
Thermal efficiency % | 81.54 | 81.6 | 81.8 | 82.2 | 82.5 | 82.5 | 82.8 | 83.7 | |
Heating surface m2 | Boiler body | 99.68 | 155.5 | 181.63 | 233.6 | 298 | 316.7 | 456 | 625.3 |
Economizer | 69.76 | 140.6 | 183.1 | 209.3 | 209.3 | 225 | 242.4 | 267.8 | |
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, | |||||||
Coal kg/h | 454.99 | 681.98 | 907.08 | 1128.34 | 1349.08 | 1686.35 | 2240.32 | 2770.29 | |
Biomass kg/h | 657.55 | 985.61 | 1310.93 | 1630.69 | 1949.71 | 2437.14 | 3237.74 | 4003.66 | |
Size of boiler largest parts mm | Length | 7500 | 6800 | 6900 | 7900 | 8100 | 9300 | 11500 | 11500 |
Width | 2800 | 3200 | 3100 | 3400 | 3100 | 3300 | 3300 | 3300 | |
Height | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |
Weight of largest | 30 | 40 | 55 | 45/30 | 50/30 | 52/31 | 55/34 | 56/37 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
