Product Advantage
  • EPCB water tube steam boiler special water wall

    The structure of the packaged hot oil heater is designed by the factory's professional technicians and is manufactured and assembled by experienced boiler manufacturers. Through the quality inspection of Dongneng Boiler's 8 quality assurance system, installation-free. It has the characteristics of a fast start-up and reliable system. It is convenient to transport and can adjust the use scene at will.

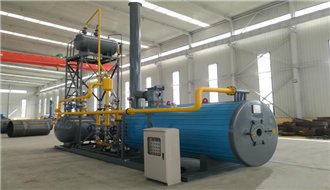

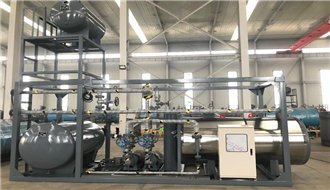

  • Skid-mounted-Hot-Oil-Heater-Feature

    The entire Hot-Oil-Heater system is installed on the same base. Easier to move. The system is more compact, the floor space is smaller, and the storage location is more random. The function is very comprehensive. No need for a dedicated boiler room. Save construction costs and site costs.

  • Control-system-of-Hot-Oil-Heater

    The electronic control system that saves fuel consumption is more automatic and smarter. Through programming, the combustion process of the boiler can be continuously optimized, and some small emergency situations can be automatically handled. Avoid causing greater losses.

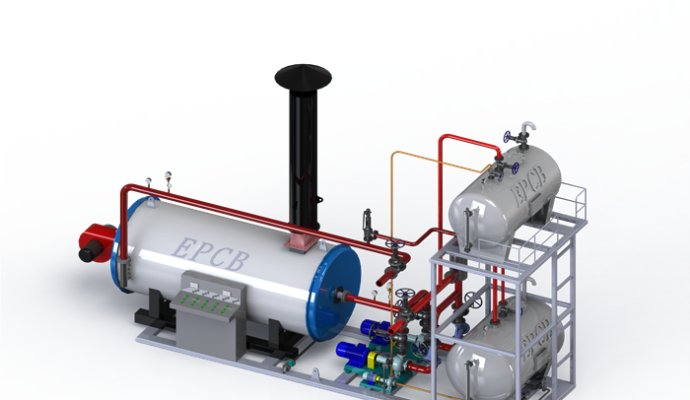

  • Structure-of-Hot-Oil-Heater-System

    The hot oil heater has stronger heat absorption capacity, less energy waste, and lower operating cost. We adopt a multi-layer coil structure, and the high-temperature flue gas can fully exchange heat with the hot oil. At the same time, it is equipped with higher quality insulation materials. Prevent heat loss.

  • Free Installation-Hot-Oil-Heater-Auxiliary

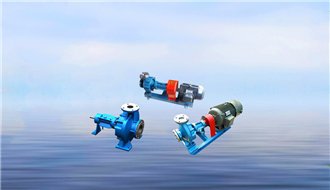

    Equipped with world-class auxiliary equipment and systems to promote more stable operation of the hot oil heater system. The hot oil circulating pump is of better quality to deliver the hot oil to the production line better and faster. The whole system is more resistant to high temperature corrosion. It is more reliable, more durable, and saves maintenance costs.

Product Video
Technical Parameters

Choose the right parameters and let us design a more suitable Free Installation Hot Oil Heater for your Food Industry. If you have no good ideas, you can contact us. Let us find a way together.

Item\Model

Free Installation Hot Oil Heater for Food Industry

Rated thermal power

KW

350

500

700

930

1200

1400

2000

×104 Kcal/h

30

40

60

80

100

120

160

Boiler thermal efficiency %

92

Design pressure MPa

1.1

Max.temperature of medium ℃

300

Medium circulation flow m3/h

30

30

60

80

100

100

160

Medium volume m3

0.25

0.4

0.51

0.68

0.74

1

1.6

Installation capacity KW

9

9

16.5

23.5

23.5

38.5

46.5

Fuel & consumption

Diesel kg/h

27.11

38.73

54.22

72.04

92.95

108.44

154.92

Natural gas Nm3/h

32.43

46.33

64.86

86.17

111.18

129.71

185.31

Boiler body size mm

Length

2526

2935

3665

3950

4325

4750

5000

Width

1510

1510

1910

1910

2135

2135

2150

Height

1656

1656

2080

2080

2250

2250

2560

Boiler body weight kg

1600

1800

3160

3490

4630

5000

7535

Overall dimension of modular type mm

Length

6200

6800

8200

9500

Width

2100

2100

2100

2400

Height

5500

5500

5700

6000

Overall weight of modular type kg

4000

5000

7000

12000


No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set


Auxiliaries
