Capacity: 0.5~6T/h
Pressure: 0.7~2.5MPa
Type: Steam Boiler
Fuel: Liquid&Gas
Application:Textile Industry
Advantage: Free Installation
Capacity: 0.5~6T/h
Pressure: 0.7~2.5MPa
Type: Steam Boiler
Fuel: Liquid&Gas
Application:Textile Industry
Advantage: Free Installation

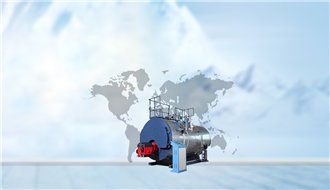

This kind of installation-free steam boiler system has been installed before leaving the factory. It can be used directly after arriving at the site of use. Same time to produce more textile.

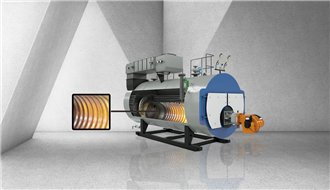

The boiler body adopts the wet back three-pass structure with the center symmetrically arranged. This kind of steam boiler structure can be dedicated to the textile industry and can save more energy. Reduce your plant operating costs.

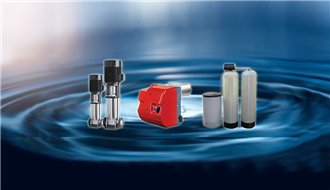

Equipped with an artificial intelligence control system and world-class brand auxiliary machines. The boiler can run automatically without being controlled by anyone. No need for professional firemen.

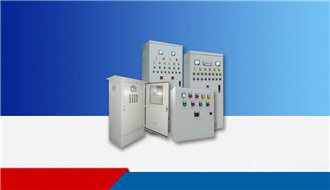

Digital control system. Allows you to control the operation of the boiler at home. With the feedback of the data, the operation process of the entire boiler can be optimized. Make the boiler system more energy-efficient.

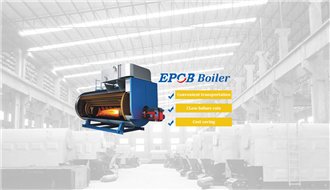

The use of necessary raw materials for special equipment makes the steam boiler more durable and reliable. The production process is even more stringent. Each EPCB boiler undergoes multiple inspections. Only qualified products will be issued for use.
Select the parameters that Free Installation Steam Boiler steam boiler. Make the boiler system more suitable for your textile factory.
Item/Type | Free Installation Steam Boiler for Textile Industry | ||||||||
Rated capacity t/h | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | |
Rated steam pressure MPa | 0.7/1.0/1.25/1.6 | ||||||||
Rated steam temperature ℃ | 170/184/194/204 | ||||||||
Boiler thermal efficiency % | 91.2 | 91.8 | 91.7 | 92.4 | 92.55 | 92.6 | 92.5 | 92.9 | |
Body heating area m2 | Boiler body | 13.05 | 21.15 | 33.14 | 45.1 | 67.87 | 80.37 | 110.5 | 140.13 |
Economizer | 10.4 | 18.6 | 20.4 | 26.1 | 30.4 | 43.41 | 46.5 | 57.1 | |
Boiler water volume m3 | 1.19 | 2.49 | 3.96 | 5.6 | 6.25 | 7.54 | 8.9 | 8.5 | |
Flue diameter mm | φ250 | φ350 | φ380 | φ420 | φ450 | φ520 | 750x410 | 800x410 | |
Water inlet diameter DN | 25 | 40 | 40 | 40 | 40 | 50 | 50 | 50 | |
Main steam valve diameter DN | 50 | 65/25 | 65/40 | 80/40 | 100/40 | 100/40 | 125/40 | 125/40 | |
Safety valve diameter DN | 40 | 50 | 2x40 | 2x40 | 2x40 | 50+40 | 2x50 | 2x65 | |
Blowdown diameter DN | 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |
Fuel consumption | Diesel kg/h | 30.03 | 59.70 | 89.65 | 118.63 | 177.65 | 236.74 | 296.25 | 353.97 |
Natural gas Nm³/h | 36.72 | 73.01 | 109.63 | 145.07 | 217.25 | 289.51 | 362.28 | 432.40 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
