Boiler Type: Single Drum Coal Biomass Fired Steam Boiler
Capacity: 1~20 T/h
Pressure: 0.7~ 1.6 M Pa
Fuel: Any Type of Coal you want to use.
Application: Chemical factory.
Boiler Type: Single Drum Coal Biomass Fired Steam Boiler
Capacity: 1~20 T/h
Pressure: 0.7~ 1.6 M Pa
Fuel: Any Type of Coal you want to use.
Application: Chemical factory.

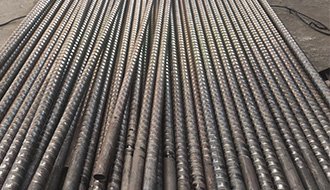

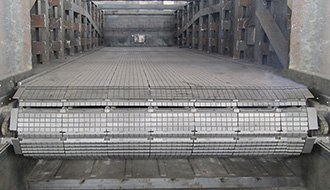

The coal-fired steam boiler uses a high-efficiency heat transfer element-threaded flue gas tube with reasonable heating surface and flue gas velocity, which makes the boiler thermal efficiency 6-8 percentage points higher than the national standard. At the same time, the furnace and air ducts are arranged more reasonably to allow the fuel to burn more fully.
Calculate the price of coal first, determine the type of coal, and determine the boiler structure according to the type. There are three criteria: 1. No waste of fuel (complete combustion) 2. No excess exhaust gas (micro-negative pressure combustion, the air is just enough for the fuel to burn completely) 3. Insulate heat loss (high-quality insulation layer, lock the boiler heat )

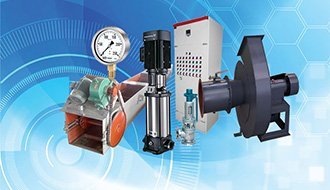

The auxiliary boiler accessories will be configured for you according to your actual needs. The dust removal effect meets your requirements. The boiler system is more in line with the actual needs of your factory, saving you money in all aspects! EPCB has designed boiler systems for more than 15,000 companies, helping them save a lot of unnecessary expenses! They all recognize us very much.
The drum of a coal-fired steam boiler has a large volume, a larger water storage capacity, easier separation of steam and water, and a higher degree of dryness of the steam. The drum is equipped with a threaded flue gas pipe, which can make the high-temperature flue gas and water conduct more sufficient heat exchange. Compared with ordinary boilers, the steam quality can be improved by more than 50%, and the thermal efficiency can be increased by more than 20%.

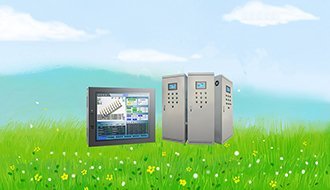

The boiler is more simple and convenient to use. We will provide you with a suitable electronic control system based on the boiler operators in your local market, add automation programs to the electronic control, and use programming for some professional and complex operations.
Choose the right parameters and let us design a more suitable coal-fired steam boiler solution for you. If you have no good ideas, you can contact us. Let us find a way together.
Item/Type | Special coal-fired biomass fired steam boiler for chemical industry | |||||||||
Rated capacity t/h | 1 | 2 | 4 | 6 | 8 | 10 | 12 | 15 | 20 | |
Rated steam pressure MPa | 0.7/1.25 | 0.7/1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | 1.25/1.6 | |
Rated steam temperature ℃ | 170/194 | 170/194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | 194/204 | |
Feed water temperature ℃ | 20 | |||||||||
Boiler thermal efficiency % | 78.1 | 80.2 | 82.3 | 82.5 | 82.5 | 82.9 | 82.9 | 83.1 | 83.1 | |
Body heating area m2 | 22.99 | 48.7 | 96.34 | 148.15 | 174.4 | 226.2 | 276 | 374.5 | 669 | |
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, | ||||||||
Coal kg/h | 118.76 | 231.30 | 450.79 | 674.54 | 899.39 | 1118.81 | 1342.57 | 1674.18 | 2232.23 | |
Biomass kg/h | 171.63 | 334.27 | 651.48 | 974.85 | 1299.81 | 1616.92 | 1940.30 | 2419.54 | 3226.05 | |
Size of boiler largest parts | Length | 4600 | 5800 | 6700 | 7000 | 7300 | 7600 | 7600 | 8500 | 9500 |
Width | 1900 | 2600 | 2700 | 3000 | 3000 | 3200 | 3200 | 3400 | 3800 | |
Height | 2900 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 7100 | |
Weight of boiler | 18 | 22 | 30.1 | 40 | 21/14 | 23/17 | 23/19 | 21/24 | 25/24 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
