System type: Water Tube Steam Boiler for Textile Factory
Boiler fuel: Soft Coal, Coal.
System Features: Environmental protection, fuel saving, high degree of automation.
Boiler application: Textile mills, knitting mills, spinning mills, etc.
System type: Water Tube Steam Boiler for Textile Factory
Boiler fuel: Soft Coal, Coal.
System Features: Environmental protection, fuel saving, high degree of automation.
Boiler application: Textile mills, knitting mills, spinning mills, etc.

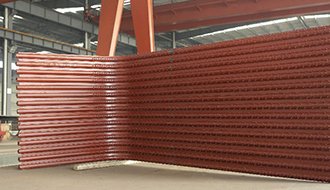

On the basis of the existing water tube steam boiler structure, we optimized the arrangement of the water wall and the convection tube bundle, and changed the flow mode of high-temperature flue gas in the boiler. Changing from a direct flow to a vortex is conducive to the heat exchange of high-temperature flue gas and water. You only need less fuel to run the same capacity boiler system to save more fuel costs.

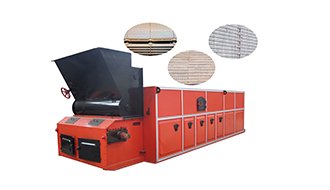

We use the most advanced combustion system to provide a heat source for the system. Through the air duct, the rational layout of the grate is optimized, making the ratio of air and fuel more reasonable. It can promote the rapid and full combustion of the fuel, combined with the dust removal system to reduce the suspended dust, nitrogen oxides and sulfur oxides in the flue gas, your fuel will be fully utilized.

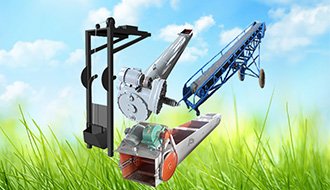

We provide the most suitable fuel delivery system for every EPCB boiler user, which can quickly refuel the boiler, ensure that the boiler has sufficient fuel supply and the steam generation rate is more stable. Simple, easy to operate, combined with the electric control system, can better complete the use and management of the boiler.

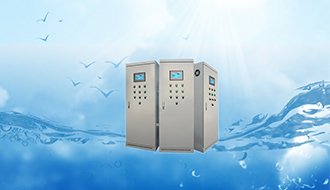

The water tube steam boiler control system will be programmed in accordance with the characteristics of the textile industry, and adjusted according to user habits and conditions, and continuously optimize the application process of the system to make the system more suitable for your food factory production, so as to achieve a more fuel-saving effect. You can save More fuel expenditures.
The steam boiler system will be customized design and production according to the different technology of the textile industry. Make the combustion process and steam supply more in line with the production needs of the food industry. Choose the best materials to ensure the stability and safety of the boiler body. You can therefore have a safe and stable boiler system suitable for your plant.
We will recommend your Steam Boiler for Textile Factory Water Tube Coal Fired boiler system model according to your actual needs. Of course we can provide you with comprehensive technical support。
Item/Type | Steam Boiler for Textile Factory Water Tube Coal Fired | ||||||||
Rated capacity t/h | 4 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | |
Rated steam pressure MPa | 1.25/1.6/2.5 | ||||||||
Rated steam temperature ℃ | 194/204/226 | ||||||||
Feed water temperature ℃ | 20 | 20 | 60 | 60 | 60 | 104 | 104 | 104 | |
Thermal efficiency % | 81.54 | 81.6 | 81.8 | 82.2 | 82.5 | 82.5 | 82.8 | 83.7 | |
Heating surface m2 | Boiler body | 99.68 | 155.5 | 181.63 | 233.6 | 298 | 316.7 | 456 | 625.3 |
Economizer | 69.76 | 140.6 | 183.1 | 209.3 | 209.3 | 225 | 242.4 | 267.8 | |
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, | |||||||
Coal kg/h | 454.99 | 681.98 | 907.08 | 1128.34 | 1349.08 | 1686.35 | 2240.32 | 2770.29 | |
Biomass kg/h | 657.55 | 985.61 | 1310.93 | 1630.69 | 1949.71 | 2437.14 | 3237.74 | 4003.66 | |
Size of boiler largest parts mm | Length | 7500 | 6800 | 6900 | 7900 | 8100 | 9300 | 11500 | 11500 |
Width | 2800 | 3200 | 3100 | 3400 | 3100 | 3300 | 3300 | 3300 | |
Height | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |
Weight of largest | 30 | 40 | 55 | 45/30 | 50/30 | 52/31 | 55/34 | 56/37 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
EPCB Boiler is a professional boiler manufacturer in China. Focus on industrial boiler production and sales for 68 years. Our main products are coal-fired boilers, oil gas boilers, biomass boilers, electric boilers, and power plant boilers. EPCB Boiler has more than 15000 users, and the users are covering more than 100 countries and regions. EPCB Boiler is well received by users, because of its features energy saving, environmental protection, helping users save money and High quality After services. We have professional boiler engineers to customize the boiler system for you so that you and your enterprise can produce higher quality products at a lower cost! Make your enterprise more competitive!
Send You Inquiry
Give You Boiler Solution
Place The Order
Get Your Boiler
Our products mainly include boiler system solutions, boiler products, and boiler-related services. Among the boiler products are thermal oil boilers, steam boilers, hot water boilers, and industrial electric boilers. We will match you with a suitable system solution according to your needs and assist you in completing the matching, installation and commissioning of related equipment.
