System type: high temperature heat energy circulation conveying system
Boiler fuel: gas fuel, liquid fuel, solid fuel
System features: fuel saving, labor saving, stable heat supply.
Boiler application: latex product industry, tire industry, rubber product industry, etc.

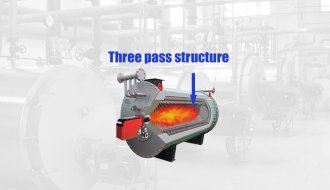

In order to help customers in the rubber industry save more fuel, we started with the thermal oil boiler itself and optimized the boiler structure. Increase the heat exchange time and method of high temperature flue gas and hot oil. With the same type of fuel and boiler model, the boiler uses less fuel and saves money.

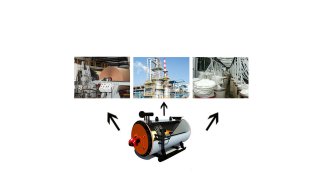

In order to make the high temperature environment required for the production of rubber products more stable, we have optimized the circulation process of the high temperature thermal energy circulation transmission system, and the hot oil supply is more stable. At the same time, the operating system of the thermal oil boiler is simplified, making the system easier and more convenient to use.

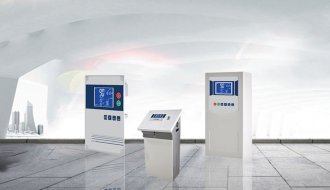

In order to let friends in the rubber industry start the factory faster, we optimized the control system of the thermal oil boiler system. It is more intelligent to operate, and at the same time, we also include an instruction manual for the thermal oil boiler. Help your operators get started quickly.

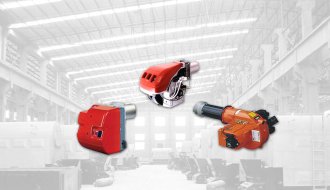

In order to help customers save more fuel costs, we help customers choose the fuel with the lowest operating cost and equip them with more durable and cost-effective burners according to the fuel combustion situation. While helping customers save operating costs, they also save purchase costs.

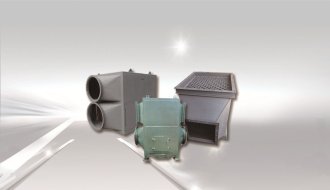

In order to save more fuel costs, we equip customers with EPCB dedicated energy-saving equipment, and use the heat energy in the exhaust gas in every detail of factory production. The final exhaust smoke temperature can reach 130°C. Save at least 10% of fuel.
Choose the boiler parameters suitable for your rubber industry and contact us. We can help you design a cost-saving and reliable thermal oil boiler system. If you are not sure, it does not matter, contact us directly and we will assist you in your choice.
Item/Type | Thermal Oil Boiler System for Rubber Industry | |||||||||||||||||||
Rated thermal power | kw | 350 | 600 | 900 | 1200 | 1500 | 1800 | 2300 | 2900 | 3500 | 4700 | 5900 | 7000 | 8200 | 9400 | 10500 | 12000 | 14000 | 15000 | 16000 |
×104(Kcal/h) | 30 | 50 | 75 | 100 | 130 | 150 | 250 | 250 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1400 | |
Boiler thermal efficiency % | 92 | 92 | 92 | 92 | 92 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 93 | 94 | 94 | 94 | 94 | 94 | |
Design pressure MPa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Medium circulation flow m3/h | 40 | 58 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 600 | 600 | 680 | 800 | 800 | |
Medium volume m3 | 0.4 | 0.6 | 0.6 | 0.8 | 1.2 | 2.1 | 2.6 | 3.5 | 7.8 | 8.4 | 8.8 | 10.5 | 11.2 | 11.5 | 13 | 15 | 18 | 21 | 23 | |
Main pipe diameter DN | 100 | 100 | 125 | 125 | 125 | 150 | 150 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 300 | 350 | 350 | 350 | |
Installation capacity kw | 14.5 | 18 | 31 | 37.5 | 49.5 | 57.5 | 61.5 | 75 | 75 | 98.5 | 121.5 | 148.5 | 155 | 195 | 235 | 235 | 295 | 341 | 341 | |
Fuel type | Diesel, Fuel Oil, Heavy Oil, Natural Gas, LPG, City Gas, Coke Oven Gas, Methane Gas, Biogas, Furnace Oil, etc. | |||||||||||||||||||
Fuel consumption | Diesel kg/h | 29.79 | 51.06 | 76.59 | 102.12 | 127.65 | 151.54 | 193.63 | 244.15 | 294.66 | 395.68 | 496.71 | 589.32 | 690.34 | 791.37 | 874.57 | 999.51 | 1166.09 | 1249.39 | 1332.68 |
Natural gas Nm³/h | 36.42 | 62.44 | 93.66 | 124.88 | 156.11 | 185.31 | 236.79 | 298.56 | 360.33 | 483.87 | 607.41 | 720.66 | 844.20 | 967.74 | 1069.49 | 1222.27 | 1425.98 | 1527.84 | 1629.70 | |
Boiler size m | 1.2×2.4 | 1.7×3 | 1.82×3.5 | 1.92×4 | 1.95×4.3 | 2.4×4.3 | 2.52×5.3 | 2.8×6.3 | 2.92×6 | 3.23×6.7 | 3.26×7.45 | 3.26×7.9 | 3.62×9 | 3.6×9.48 | 3.65×10.4 | 3.65×10.6 | 3.98×11.5 | 4×12.2 | 4.06×12.5 | |
Circulating oil pump | Model WRY | 80-50-180 | 100-65-190 | 100-65-230 | 100-65-240 | 100-65-257 | 125-80-250 | 125-80-250 | 125-100-250 | 125-100-250 | 125-100-257 | 125-100-260 | 150-125-270 | 125-100-250 | 125-100-257 | 125-100-260 | 125-100-260 | 150-125-270A | 150-125-280A | 150-125-280 |
Flow m³/h | 40 | 60 | 100 | 100 | 100 | 160 | 160 | 200 | 200 | 260 | 300 | 340 | 200×2 | 260×2 | 300×2 | 300×2 | 340×2 | 400×2 | 400×2 | |
Head m | 40 | 38 | 55 | 70 | 80 | 60 | 60 | 60 | 60 | 70 | 70 | 76 | 60 | 70 | 70 | 70 | 76 | 78 | 78 | |
Power kw | 7.5 | 11 | 22 | 30 | 37 | 45 | 45 | 55 | 55 | 75 | 90 | 110 | 55×2 | 75×2 | 90×2 | 90×2 | 110×2 | 132×2 | 132×2 | |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
