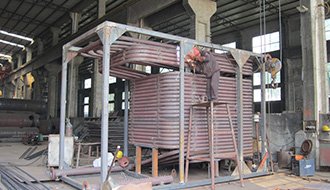

EPCB Biomass Thermal Oil Boiler series, has reasonable arrangement of radiation heating surface and convection heating surface, higher heat transfer efficiency and longer service life of boilers. Boiler adopts three-pass coil structure, closed cycle heating, compact structure, high degree of assembly, more safe to use.
More >>
EPCB Biomass Hot Water Boiler series, can use a variety of biomass fuels, and fully burned. Reasonable boiler structure and heating surface arrangement can effectively improve the thermal efficiency of the boiler! Now it is widely used in heating, bathing, laundry and other fields!
More >>
Electric steam boiler is a new type of electric heating equipment which converts electric energy into heat energy. It is also manufactured in accordance with boiler safety supervision regulations and boiler industry standards in design. It has the advantages of high intelligence, fast heating, high thermal efficiency, no noise, no pollution and so on.
More >>
Industrial Electric Hot Water Boiler is a kind of mechanical equipment which uses electric power as energy and metal tubular electric heater to heat water, so that electric energy can be directly converted into heat energy to produce hot water. It is widely used in hotels, houses, laundries, swimming pools, hospitals and other places requiring heating supply.
More >>
System Type: high temperature heating circulating transmission system in chemical industry
Boiler Fuel : solid fuel, coal, biomass, etc.
System Features: Save the running cost of chemical plants, stable, reliable, and environmentally friendly.
Boiler application: chemical raw material extraction, chemical synthesis, fertilizer plant, chemical preparation plant, etc.

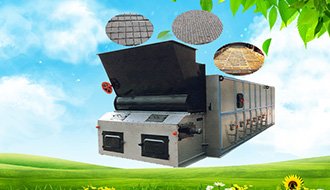

Save every portion of fuel and reduce fuel costs. To avoid the waste of insufficient fuel combustion, we optimized the fuel and air ratio of the combustion system, and the adjustment method, as well as the contact method and contact time of the fuel and air, and adjusted the combustion system structure of the air supply system, so that the fuel is fully burned and converted into The heat that can be absorbed by the hot oil.
Increase system stability and increase product output. Avoid boiler start and stop caused by operating errors. We have set up a safety interlock protection system in every important link of the entire heat conduction boiler system, and provide feedback for the safe operation of the system by monitoring various important values to avoid system problems caused by human operation errors.

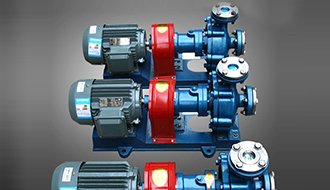

Ensure the continuity of heat transfer and increase the product qualification rate. Avoid the unstable heating of the product production line due to the problem of the heat transfer system. We optimized the composition of the boiler transportation system, combined with the monitoring system, and optimized the heat energy transportation process through data feedback, so that "heat" is available at any time in the heating section.
Ensure that the system pipeline is filled with hot oil at any time to avoid spontaneous combustion, oxidation and coking of hot oil, which may cause problems in the boiler system itself. We optimized the hot oil replenishment system to extract the coking and oxides in the hot oil at any time, while slowly replenishing the hot oil, extending the service life of the boiler system and saving system replacement costs.
Recover the valuable heat energy in the entire chemical plant and put it back into the thermal energy cycle system to achieve full energy conservation throughout the plant. We optimized the heat recovery system. The flue gas in the high-temperature flue gas is recovered through various methods and used in the production and life of the factory. Then recover the recoverable heat energy and put it back into circulation. Save plant operating costs.
We will recommend your Thermal Oil boiler for Chemical Industry Coal Fuel boiler system model according to your actual needs. Of course we can provide you with comprehensive technical support。
Item | Thermal Oil boiler for Chemical Industry Coal Fuel | ||||||||||||||||
Rated thermal power | kw | 1900 | 2300 | 2900 | 3500 | 4100 | 4700 | 5900 | 7000 | 8200 | 9400 | 12000 | 14000 | 16500 | 17500 | 19000 | 23500 |
×104(Kcal/h) | 160 | 200 | 250 | 300 | 350 | 400 | 500 | 600 | 700 | 800 | 1000 | 1200 | 1400 | 1500 | 1500 | 2000 | |
Boiler thermal efficiency % | 82 | 83 | 83 | 83 | 83 | 83 | 84 | 84 | 84 | 84 | 84 | 85 | 85 | 85 | 85 | 85 | |
Design pressure Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |
Max. working temperature ℃ | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Medium circulation flow m3/h | 160 | 160 | 200 | 200 | 200 | 260 | 300 | 340 | 400 | 520 | 500 | 620 | 800 | 1000 | 1000 | 1000 | |
Medium volume m3 | 1.7 | 2.6 | 3 | 3.2 | 3.5 | 4.1 | 4.6 | 6.2 | 8.9 | 12.6 | 13.6 | 14.8 | 16.5 | 18.2 | 19.7 | 22.3 | |
Main pipe diameter DN | 150 | 150 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 300 | 300 | 350 | 350 | 400 | 400 | 400 | |
Installation capacity kw | 75 | 77 | 100 | 100 | 120 | 140 | 175 | 215 | 215 | 270 | 315 | 380 | 460 | 540 | 600 | 620 | |
Fuel type | Bituminous Coal, Soft Coal, Anthracite, Lignite, Poor Coal, etc. | ||||||||||||||||
Fuel consumption | Coal kg/h | 307.01 | 367.17 | 462.95 | 558.73 | 654.51 | 750.30 | 930.65 | 1104.16 | 1293.44 | 1482.73 | 1892.84 | 2182.34 | 2572.04 | 2727.92 | 2961.74 | 3663.21 |
Biomass kg/h | 443.69 | 530.63 | 669.06 | 807.49 | 945.91 | 1084.34 | 1344.98 | 1595.74 | 1869.30 | 2142.86 | 2735.56 | 3153.94 | 3717.15 | 3942.43 | 4280.35 | 5294.12 | |
Boiler weight | ton | 25 | 32 | 33 | 39 | 41 | 67 | 70 | 80 | 98 | 108 | 115 | 130 | 140 | 170 | 197 | 225 |
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
