Product Advantage

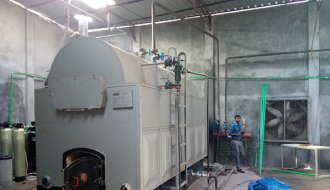

  • Fixed Grate Boiler System

    Equipped with high-quality dust collectors, economizers and other auxiliary equipment, it achieves low emissions, prolongs the service life of the boiler, and produces good economic benefits.

  • Fixed Grate of Manual Coal Fired Steam Boiler

    The high-temperature-resistant fixed grate used in the boiler grate has a wide range of applicable fuels, a long service life, and is not easy to deform and damage.

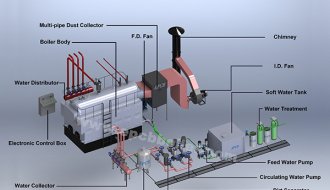

  • Fixed-Grate-Coal-Fired-Hot-Water-Boiler-Diagram

    Boiler adopts water-fire tube structure, two-wing flue duct design, and has a large furnace and combustion chamber. The high-efficiency heat transfer threaded flue tubes are placed in the drum of the boiler, which makes the heating rate shorter by about 1/3 than that of the water-pipe boiler.

  • Heating Surface of Manual Coal Boiler

    The internal design of the boiler is reasonable, and the reasonable distribution of flue pipes and convection tube bundles increases the radiation and convection heating surface and improves the thermal efficiency of the boiler.

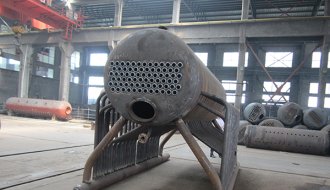

  • Manual Coal Fired Boiler Body.JPG

    The boiler has a compact structure, and the system occupies a small area, which can reduce the investment in the boiler room.

Technical Parameters

Find the capacity of the coal fired hot water boiler you want and check other parameters of the boiler as a reference.

  Item\Type

Fixed Grate Manual Coal Fired Hot Water Boiler

Rated capacity MW

0.35

0.7

1.4

Rated working pressure MPa

0.7

0.7

0.7

Supply water temperature ℃

95

95

95

Return water temperature ℃

70

70

70

Heated surface area m²

radiation / convection

2.3/16.2

4.55/20.12

6.17/39.5

Suitable fuel type

Coal / Wood / Charcoal / Jute / Fabric, ect.

Boiler heat efficiency %

79.6

81

81.6

Fuel consumption  kg/h

76

146

290

Effective area of grate m²

0.98

1.5

2.4

Transportation size of boiler mm

length

2970

3782

4900

width

1950

1800

2130

heigth

2660

2870

3222

Weight of larggest parts of boiler transportation (ton)

8.3

11

15.5

Notes: 1.This form is only for reference, if any changed, please refer to factory's technical documents.
          2.The calorific value of fuel in this form is based on the calorific value as follows: biomass-18800KJ/kg.



No.

Item

Example/Issuer

Qty

Unit

1

Boiler Drawings

General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing.

1

Set

2

Boiler Quality Certificate

Issued by the boiler inspection department of China government.

1

Set

3

Certificate of Origin

Such as CO, Form E, Form F, Form A, etc.

1

Set

4

Boiler Thermodynamic Calculation Book

Issued by the boiler supplier.

1

Set

5

Boiler Strength Calculation Book

Issued by the boiler supplier.

1

Set

6

Installation & Operation Instruction

Issued by the boiler supplier.

1

Set



Auxiliaries
