More >>Boiler Type: Water Tube Steam Boiler for Food Industry
Boiler Certification: ASME, CE, EAC, GB, Every you want.
Performance: Fuel-saving, Durable, Reliable, Economic
Boiler Fuel: Coal, Biomass, Wood Chips, etc.
Like this product? Share it with your friends!

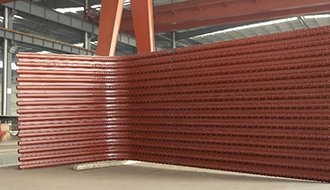

We redefine the density of the water wall and add more heated area. This means that high-temperature flue gas can more fully exchange heat with water to produce more water vapor per unit time. You will have a water tube steam boiler system that uses less fuel to heat the plant.

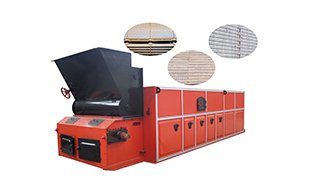

We redesign the fuel platform. The thickness of the fuel on the platform, the speed of fuel input, and the ratio of air can all be completed through the intelligent control system. We can define the operation process of the combustion platform based on the user's use time of steam and usage habits. Fuel can be more fully utilized.

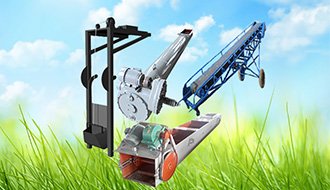

Fuel filling and feeding will be more automated. We use a control system to control the feeding speed and times according to the fuel situation in the hopper, without manual feeding. No more labor is required to complete the management of the water tube steam boiler. Save more labor costs. In turn, reduce product costs. Improve factory competitiveness.

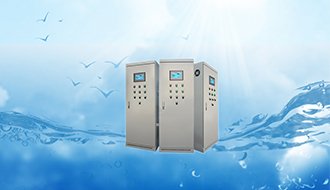

The operation process of the water tube steam boiler is organically combined with the factory production process to form a more intelligent control system. Through intelligent programming and feedback from the electronic display, you can more intuitively understand the current operating conditions of the boiler system and make more correct judgments. The boiler system is more reliable. The operation of the factory is more stable.

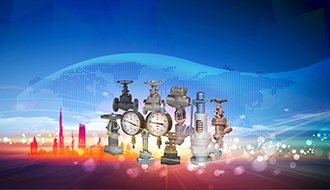

We have put forward higher requirements for the valve and instrument of the water tube steam boiler while meeting the GB certification, and it will be used for the connection of the boiler system only after the EPCB standard is passed. To improve the security of the system. At the same time, we use well-known brand instrument valves to increase the corresponding service life.
Select the parameters of the Water Tube Steam Boiler for that suits your food factory and contact us. We can help you design a cost-saving and reliable heat transfer oil boiler system. If you are not sure, it does not matter, contact us directly and we will assist you in your choice.
Item/Type | Water Tube Steam Boiler for Food Factory | ||||||||
Rated capacity t/h | 4 | 6 | 8 | 10 | 12 | 15 | 20 | 25 | |
Rated steam pressure MPa | 1.25/1.6/2.5 | ||||||||
Rated steam temperature ℃ | 194/204/226 | ||||||||
Feed water temperature ℃ | 20 | 20 | 60 | 60 | 60 | 104 | 104 | 104 | |
Thermal efficiency % | 81.54 | 81.6 | 81.8 | 82.2 | 82.5 | 82.5 | 82.8 | 83.7 | |
Heating surface m2 | Boiler body | 99.68 | 155.5 | 181.63 | 233.6 | 298 | 316.7 | 456 | 625.3 |
Economizer | 69.76 | 140.6 | 183.1 | 209.3 | 209.3 | 225 | 242.4 | 267.8 | |
Fuel & consumption | Fuel type | Class II Soft Coal, Biomass, Wood Chips, Wood Pellets, | |||||||
Coal kg/h | 454.99 | 681.98 | 907.08 | 1128.34 | 1349.08 | 1686.35 | 2240.32 | 2770.29 | |
Biomass kg/h | 657.55 | 985.61 | 1310.93 | 1630.69 | 1949.71 | 2437.14 | 3237.74 | 4003.66 | |
Size of boiler largest parts mm | Length | 7500 | 6800 | 6900 | 7900 | 8100 | 9300 | 11500 | 11500 |
Width | 2800 | 3200 | 3100 | 3400 | 3100 | 3300 | 3300 | 3300 | |
Height | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 | |
Weight of largest | 30 | 40 | 55 | 45/30 | 50/30 | 52/31 | 55/34 | 56/37 |
a
No. | Item | Example/Issuer | Qty | Unit |
1 | Boiler Drawings | General Drawing, Boiler Proper Drawing, PID (Pipes, Instruments & Valves) Drawing, Foundation Drawing, Boiler Room Design Drawing. | 1 | Set |
2 | Boiler Quality Certificate | Issued by the boiler inspection department of China government. | 1 | Set |
3 | Certificate of Origin | Such as CO, Form E, Form F, Form A, etc. | 1 | Set |
4 | Boiler Thermodynamic Calculation Book | Issued by the boiler supplier. | 1 | Set |
5 | Boiler Strength Calculation Book | Issued by the boiler supplier. | 1 | Set |
6 | Installation & Operation Instruction | Issued by the boiler supplier. | 1 | Set |
