Boiler Blowdown Explained: Surface vs. Bottom, Rate Control, and Valve Sequence

In an operating steam boiler, only pure water leaves as steam. Every mineral, chemical precipitate, and suspended particle in the feedwater stays behind and concentrates. Left uncontrolled, those solids scale the heating surfaces, contaminate the steam, or push the boiler toward a low-water event. Boiler blowdown is the controlled discharge of boiler water that holds that concentration in check, and doing it well comes down to three decisions: which method to use, how much to discharge, and in what valve order.

This article is written for plant operators and engineers setting or reviewing a blowdown program on an industrial steam boiler. It covers what blowdown actually controls, how surface and bottom methods differ, the variables that set the correct rate, and the procedural sequence that protects your equipment.

Scope note: This guidance applies to steam boilers running on makeup water, whether firetube or watertube. It does not cover hot-water heating boilers in fully closed loops, which carry no significant makeup water and generally need no blowdown. For high-pressure or utility boilers, allowable limits should be confirmed against ASME guidelines and the manufacturer's data sheet, not against a generic rule.

What Boiler Blowdown Controls (and What It Doesn't)

Boiler blowdown controls the concentration of dissolved and suspended solids in the boiler water, and the correct amount depends on feedwater quality and condensate return. It works by replacing a portion of high-solids boiler water with lower-TDS feedwater. The governing concept is cycles of concentration (COC): the ratio of dissolved solids in the boiler water to those in the incoming feedwater. As steam leaves and solids stay, COC climbs, and blowdown pulls the concentration back down before scale or carryover begins.

What blowdown does not do is fix problems that originate elsewhere. It will not correct carryover caused by a mechanical fault or a foaming additive, and it will not compensate for a feedwater supply that is out of spec. The rate itself is never a fixed number; it shifts with feedwater conductivity, condensate return percentage, operating pressure, and the treatment program. A schedule set once and never checked against conductivity is one of the most common reasons scale appears early.

Why Fixed-Schedule Blowdown Fails

The two most damaging blowdown errors share one root cause: running a fixed time interval without checking water chemistry. The symptom looks harmless until it isn't.

When a boiler is blown down for a set duration once per shift and conductivity is never measured, TDS can drift upward unnoticed. The boiler reads normal right up until scale has insulated the heating surfaces enough to drive metal temperatures up, and by then the fix is acid cleaning or tube replacement rather than a schedule tweak. In boilers fed with softened municipal water and low condensate return, the dissolved-solids load is exactly where this drift tends to begin. Feedwater conductivity is the first thing worth rechecking when scale shows up unexpectedly.

The opposite error, blowing down longer to be safe, wastes heated and chemically treated water, raises fuel and chemical use, and can destabilize level control enough to trip a low-water cutoff. A third mistake is treating surface and bottom blowdown as interchangeable. They target different contaminants in different zones, and when one method is assumed to cover both, the part it never reaches keeps building up. Where load, makeup quality, or condensate return move during operation, conductivity-based automatic surface blowdown is more reliable than any fixed timer, because it responds to the actual solids concentration rather than the clock.

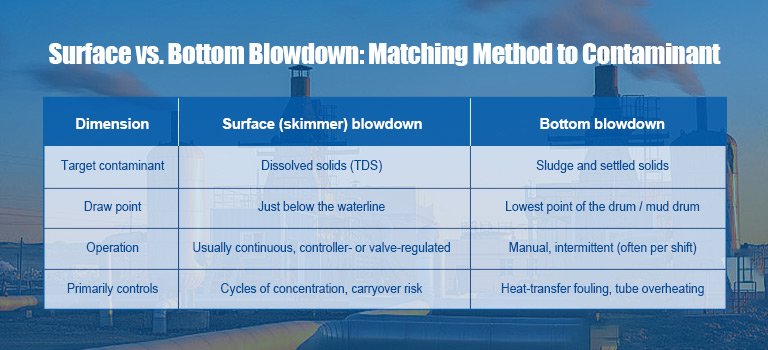

Surface vs. Bottom Blowdown: Matching Method to Contaminant

The right blowdown method depends on which contaminant you need to remove, and most industrial steam boilers need both surface and bottom blowdown. Surface (or skimmer) blowdown draws water from a few inches below the waterline, where dissolved-solids concentration is highest, making it the primary tool for controlling COC. Bottom blowdown removes the heavier sludge and settled solids that collect at the lowest point of the drum, where surface blowdown cannot reach.

Two different distinctions get blurred here. "Surface versus bottom" describes where the water is drawn and which contaminant it targets; "continuous versus intermittent" describes how the discharge is operated. In most industrial systems, surface blowdown runs continuously or under conductivity control, while bottom blowdown, sometimes called blowoff, is intermittent and done by hand.

The two are complementary, not redundant. A boiler running surface blowdown alone still accumulates bottom sludge that can insulate heat-transfer surfaces and cause localized overheating, while a boiler on bottom blowdown alone never holds dissolved solids at a stable level.

Which method leads depends on the system. Phosphate treatment programs that generate sludge raise the importance of bottom blowdown, while high-purity makeup water shifts the emphasis toward surface control of TDS.

Variables That Set Your Blowdown Rate

The correct blowdown rate depends on a handful of measurable variables, and no single value applies across systems. Each one should be confirmed for the specific boiler before a rate is set:

· Condensate return percentage — the single largest driver of blowdown volume. Less return means more makeup water, more incoming minerals, and a higher required blowdown rate.

· Makeup water quality (TDS, hardness, alkalinity) — sets how many cycles of concentration are possible before limits are exceeded. Reverse-osmosis makeup allows higher COC and lower blowdown, while softened water may be low in hardness but high in sodium.

· Operating pressure — raises carryover and silica-volatility risk, which tightens allowable TDS, silica, and alkalinity limits. Higher-pressure boilers need stricter control, and low-pressure limits should never be carried over to them; confirm specific values against ASME and the manufacturer's data.

· The water treatment program — determines what precipitates form. Phosphate programs create sludge that makes bottom blowdown more important, and polymer programs change how readily that sludge discharges.

When a starting estimate is needed, the rate follows from a simple mass balance between steam output and the solids it leaves behind: BD = S × F / (B − F), where S is the steam generation rate, F is feedwater solids (conductivity is often used as a practical proxy), and B is the allowable boiler-water concentration. The formula only returns a number once B is fixed, and B itself depends on operating pressure, the treatment program, and the manufacturer's limit. So the calculation sizes a target; it does not replace the variable check above.

Bottom Blowdown Valve Sequence and Why Order Matters

The bottom blowdown procedure depends on a specific two-valve sequence, and reversing it is a common cause of valve and piping damage. The arrangement pairs a quick-opening valve near the boiler with a slow-opening valve downstream, and the order exists to keep high-velocity flow off the valve that has to hold a tight seal. Before starting, confirm the water level sits in the normal range, since a low level can expose tubes during the blow.

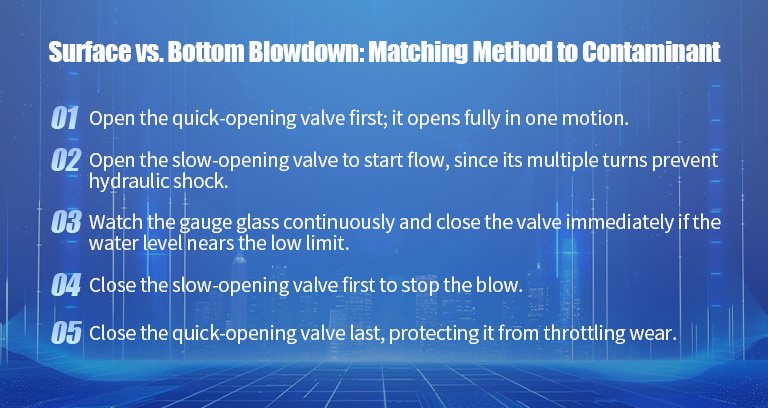

The sequence runs in this order:

1. Open the quick-opening valve first; it opens fully in one motion.

2. Open the slow-opening valve to start flow, since its multiple turns prevent hydraulic shock.

3. Watch the gauge glass the whole time, and close the slow-opening valve at once if the level approaches the low limit.

4. Close the slow-opening valve first to stop the blow.

5. Close the quick-opening valve last, protecting it from throttling wear.

The reasoning behind the order is the part worth keeping. The quick-opening valve sits closest to the boiler and faces the most stress, so it should never be the valve throttling hot, high-velocity flow. Pumping it to create short bursts causes water hammer that damages pipes and valves, and an open blowdown valve should never be left unattended. The discharge should run into a properly sized blowdown vessel or tank rather than an open drain, because the water leaves hot and pressurized. Boilers with two bottom connections need the full sequence run on each one separately.

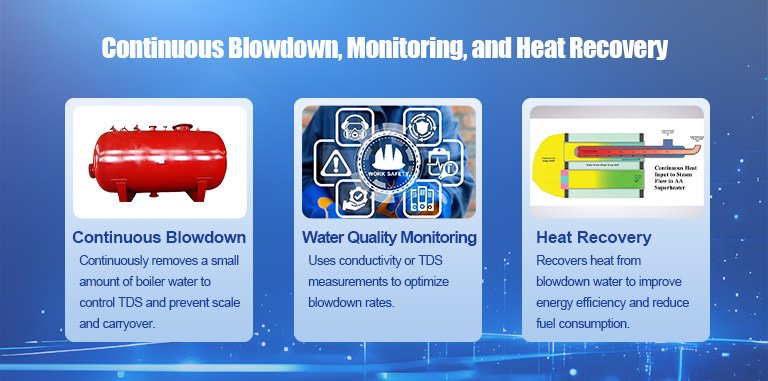

Continuous Blowdown, Monitoring, and Heat Recovery

Continuous blowdown manages dissolved solids through a small, steady discharge from the surface zone, and its main advantage is that it responds to actual water chemistry rather than a fixed clock. It is typically governed by a conductivity sensor that opens the valve as TDS rises, which lowers the risk of both over- and under-blowing. Where automation is not installed, manual surface blowdown with a conductivity meter gives similar control, provided readings are taken often enough to track how fast TDS is changing.

The discharged water leaves hot and pressurized, so the energy question is worth raising alongside the rate question. As a rough screening point, heat recovery tends to pay off once continuous blowdown reaches roughly 5% or more of steam output: a flash tank can recover flash steam for the deaerator, and a heat exchanger can capture residual heat to preheat feedwater. The higher the continuous blowdown volume, the stronger that case becomes, and on boilers with swinging loads, several short blows track chemistry better than one long one.

Conclusion

Effective blowdown rests on three linked decisions: match the method to the contaminant, set the rate from real feedwater and condensate data, and follow a valve order that protects the equipment. They depend on one another. The right rate with the wrong valve sequence still damages hardware, and the right procedure at the wrong moment still lets TDS run out of spec.

In practice, the variable that quietly undoes a sound program is condensate return that drifts as a plant's process load changes, because the rate that was correct at commissioning slowly stops matching the mineral load. We design our boilers with blowdown connections matched to the application's operating conditions, and for systems with variable return or shifting water quality we recommend verifying conductivity targets during commissioning rather than carrying over a generic setpoint. The numbers that set a correct program stay specific to each system.

If you are specifying a new boiler or reviewing an existing program, send our technical team your operating pressure, steam rate, feedwater and boiler-water conductivity, condensate return percentage, and current blowdown frequency. As an industrial boiler manufacturer, we can confirm whether your blowdown arrangement and valve setup match your operating conditions, and whether heat recovery fits your blowdown volume.

FAQ

Does a hot-water boiler need blowdown?

Closed-loop hot-water boilers with no significant makeup water generally do not need blowdown, because no new minerals enter the system. If a loop takes frequent makeup water because of leaks, blowdown can become necessary, so the answer depends on makeup volume rather than boiler type alone.

How do I find the correct blowdown frequency?

Correct frequency depends on feedwater TDS, condensate return, operating pressure, and target COC, confirmed through water testing rather than a default schedule. A fixed interval set without conductivity data is unreliable for most industrial systems.

What is the risk of excessive blowdown?

Excessive blowdown wastes heated, chemically treated water and raises fuel use, and it can destabilize level control enough to trip a low-water cutoff. It also increases chemical consumption, since treatment chemicals leave with the discharged water.

Why open the quick-opening valve first?

The quick-opening valve sits closest to the boiler and takes the most stress, so opening it first and closing it last keeps it out of the throttling role. The slow-opening valve absorbs the high-velocity flow instead, which protects the seal nearest the boiler.

What causes carryover?

Carryover, meaning boiler water carried into the steam line, comes from high solids concentration, high water level, foaming, or rapid load swings. Surface blowdown controls the dissolved-solids portion, but carryover from mechanical or chemical causes will not be solved by blowdown alone.

How does condensate return affect blowdown?

Higher condensate return means less makeup water and fewer incoming solids, so the boiler can hold higher COC with less blowdown. When return drops, the blowdown rate should rise to match the heavier mineral load.
