How Do CHP Plants Work?

Under the double pressure of global energy crisis and environmental protection, improving energy efficiency and reducing carbon emissions have become the common goal of all industries. CHPof heat and power (CHP), as an efficient energy solution, greatly improves the energy utilization efficiency and significantly reduces the negative impact on the environment by simultaneously producing electricity and heat.

The traditional fossil fuel energy system generally has the problem of energy waste, especially in the process of power generation, a large amount of heat energy is discharged into the environment through the cooling tower in the form of waste heat. Such inefficient energy conversion not only wastes valuable energy resources, but also intensifies greenhouse gas emissions. In contrast, CHP has become an effective way to solve the problem of traditional energy waste by recycling and utilizing the waste heat generated in the process of power generation and converting it into usable heat energy to provide heat for industry, commerce and residents.

The implementation of CHP not only has obvious advantages in energy efficiency, but also provides a solid foundation for reducing carbon emissions and supporting sustainable development. Therefore, it is very important to understand the working principle of CHP system for exploring modern energy solutions.

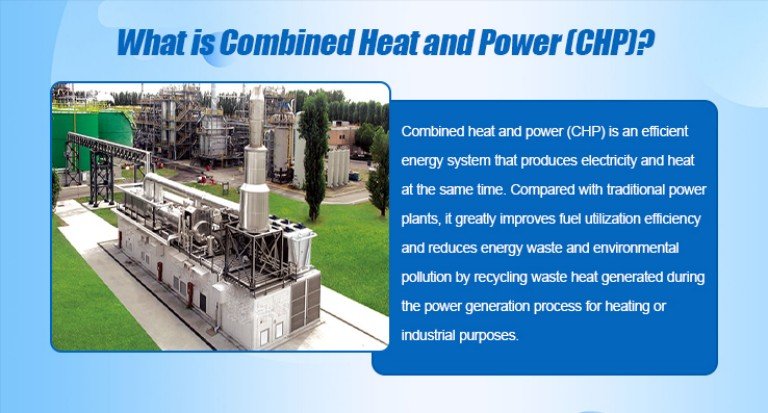

What is Combined Heat and Power (CHP)?

Combined heat and power (CHP), also known as CHPheating or CHPsystem, is an efficient energy production mode. It uses a single fuel source (such as natural gas, coal, biomass, etc.) to produce electricity and heat at the same time, and uses waste heat recovery for industrial production, commercial use or residential heating. This high-efficiency energy utilization system, which can produce electricity and heat at the same time, is different from the traditional power plant. It recovers waste heat while generating electricity and uses it for heating or industrial production, thus greatly improving fuel utilization and reducing energy waste. Its core principle is to drive the turbine to generate electricity by burning fuel, and at the same time, use the heat exchanger to convert the waste heat generated in the process of power generation into usable heat energy, so as to realize the dual output of energy.

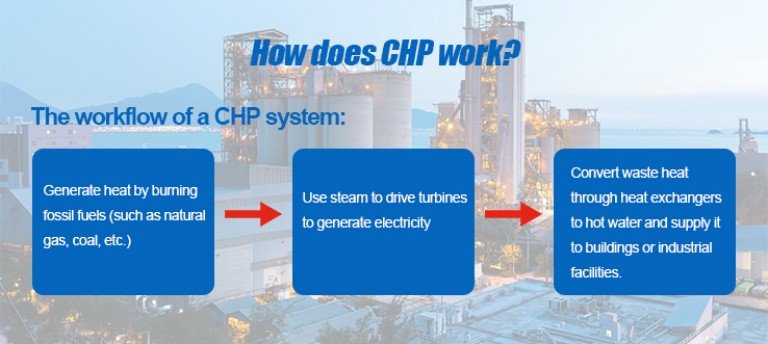

How does CHP work?

Workflow of CHP System

CHP system is an efficient energy system that combines power generation with heat energy recovery. Its main process includes burning fossil fuels (such as natural gas, coal or biomass fuel) to generate high-temperature heat energy to drive the core of system operation. The heat energy generated by fuel combustion heats the water in the boiler to generate high-pressure steam, and the steam turbine drives the generator to generate electricity. At the same time, the waste heat generated in the process of power generation is recovered through the heat exchanger and converted into hot water or low-pressure steam for the heat demand of building heating or industrial facilities. The system can flexibly adjust the output ratio of electric power and heat energy, realize the dual utilization of energy, meet the needs of different scenarios to the greatest extent, and significantly improve the fuel utilization efficiency.

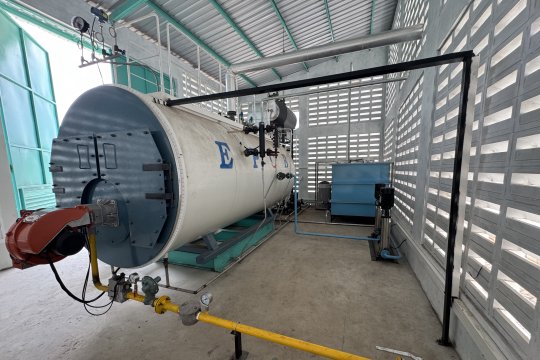

The Role of Industrial Boilers in CHP System

In CHP system, industrial boiler is not only the main source of heat energy, but also plays a vital role in the recovery and reuse of waste heat.

Efficient combustion and heat energy supply:Industrial boilers generate high-temperature heat energy by burning fuel, which is used to generate steam to drive turbines. This is the starting point of the whole CHPsystem, which provides a foundation for power production and subsequent waste heat utilization.

Waste heat recovery and reuse:In the traditional power generation system, waste heat is usually directly discharged, resulting in energy waste. In the CHPsystem, industrial boilers recover the heat in waste gas or steam and convert it into usable heat energy through additional heat recovery devices (such as heat exchangers). These heat energy can be used to supply hot water or heat industrial equipment, thus significantly improving energy efficiency.

Stable operation and flexible adjustment:The industrial boiler can adjust the fuel combustion intensity and heat output according to the demand in the system, so that the whole system can operate efficiently under different loads. In addition, its design usually has high reliability to ensure the long-term stable operation of CHPsystem.

Environmental protection and cost saving:By combining industrial boilers with heat recovery devices, CHP system not only reduces waste heat emission and environmental pollution, but also significantly saves operating costs by improving energy utilization efficiency.

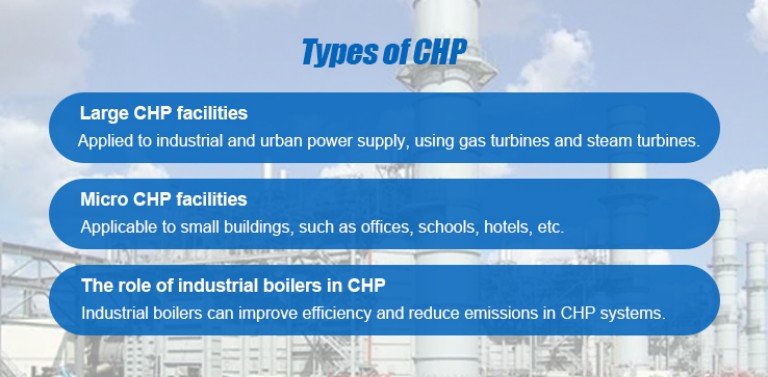

Types of CHP Systems

Large CHP facilities

Large-scale CHP facilities mainly serve industrial and urban power and thermal energy supply needs. By using gas turbines or steam turbines, the thermal energy generated by the combustion of fuels (such as natural gas, coal, biomass, etc.) is used for power generation, and at the same time, waste heat is recovered for heating or industrial use. Such facilities are often used in industrial parks, power plants and urban central heating systems, which have the advantage of high energy utilization rate and can meet large-scale and long-term power and heat demand.

Micro CHP facilities

Micro CHP facilities are suitable for small-scale buildings, such as offices, schools, hotels and residences, and are usually based on internal combustion engines or small gas turbines, with the characteristics of small floor space and flexible operation. They are often used in community heating, commercial buildings and rural houses. By producing and using energy locally, the loss of power transmission and heat transmission can be reduced, and at the same time the energy cost can be effectively reduced.

The role of industrial boilers in CHP

Industrial boiler is the key heat energy production equipment in CHP system, and its main functions include providing high-temperature steam by burning fuel to drive turbines to generate electricity, which becomes the core source of system heat energy; Cooperate with the heat exchanger to efficiently recover the waste heat generated in the process of power generation and use it for heating or industrial production, thus significantly improving the energy utilization efficiency. At the same time, modern industrial boilers are equipped with low-nitrogen combustion technology and waste gas treatment system, which can effectively reduce pollutant emissions and meet environmental protection standards. In addition, industrial boilers are highly flexible and reliable, and can adjust their operation according to the load demand, so as to ensure that the CHP system remains stable and efficient under different working conditions.

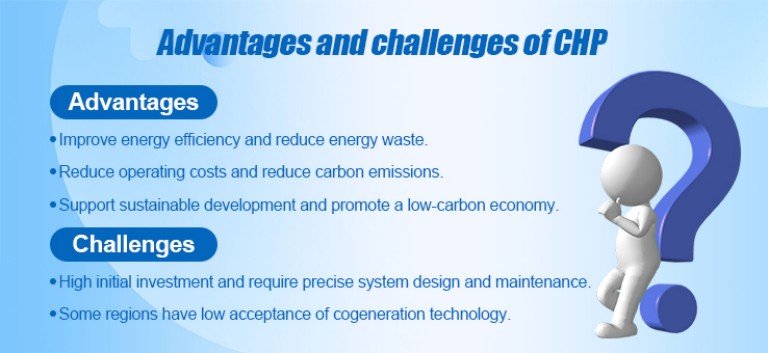

Advantages and challenges of CHP

Advantages of CHP

• Improve energy efficiency and reduce energy waste:CHP can significantly improve fuel utilization by combining power generation with heat energy recovery. The fuel efficiency of traditional power plants is usually 30%-40%, while the CHP system can reach more than 80%, effectively reducing energy waste and making full use of every fuel.

• Reduce operating costs and carbon emissions:Because the energy is efficiently used locally, the CHP system greatly reduces the loss in the process of power transmission and heat transmission, and at the same time reduces the dependence on a single energy supply. This not only significantly saves energy costs, but also reduces fuel consumption and greenhouse gas emissions, which is in line with the global carbon neutrality goal.

• Support sustainable development and promote low-carbon economy:CHP system can flexibly use a variety of energy sources, including natural gas, biomass and other renewable energy sources, which is conducive to the optimization of energy structure. By improving energy efficiency and reducing environmental pollution, CHP promotes the development of low-carbon economy and is an important technical path to achieve sustainable development.

Challenges of CHP

High initial investment, requiring accurate system design and maintenance:The construction of CHP system needs high initial investment, including equipment cost and supporting facilities construction cost. In addition, in order to ensure the long-term efficient operation of the system, the design and planning need to be accurately calculated in combination with specific application scenarios, and regular maintenance is required, which puts higher demands on financial and technical support.

 The acceptance of CHP technology in some areas is low:In some areas, the penetration rate of CHP technology is still low, due to insufficient understanding of technology, limited policy support and limitations of existing energy infrastructure. This limitation may hinder the popularization and application of CHP system.

Conclusion

CHP, as an efficient energy utilization technology, plays an important role in solving global energy waste and climate change problems. By combining power generation with waste heat recovery, CHP system greatly improves energy efficiency and reduces energy waste caused by fuel combustion and energy transmission. More importantly, it promotes the development of low-carbon economy by significantly reducing greenhouse gas emissions, which is one of the important ways to achieve global carbon neutrality. CHP has shown outstanding energy and environmental benefits in industrial, commercial and residential fields.

In the future energy system, industrial boilers will continue to play a key role. As the core equipment of CHP system, industrial boiler is not only the guarantee of efficient heat supply, but also effectively promotes the development of high efficiency and low carbonization of energy system through waste heat recovery and low pollution combustion technology. With the progress of technology and the popularization of application, industrial boilers will not only meet the diversified energy demand, but also provide powerful assistance for the realization of global energy conservation and emission reduction targets, and lay a solid foundation for building a sustainable energy future.

FAQ

What is the initial investment cost of CHP system?

The initial investment cost of CHP system is high, mainly including equipment procurement, installation and supporting facilities construction costs. However, in the long run, the system has achieved remarkable economic benefits by improving fuel utilization efficiency, reducing energy waste and reducing operating costs. In addition, many countries or regions provide policy incentives or subsidies, which can effectively reduce the initial investment pressure.

Can CHP replace traditional power plants?

CHP system can replace traditional power plants in specific application scenarios, such as industrial parks, urban central heating and small building energy supply. However, because traditional power plants still have the advantages of large-scale centralized power generation, CHP system is more suitable as a means to supplement and optimize the energy structure, rather than completely replacing traditional power plants.

How to choose a CHP system suitable for your own enterprise?

The selection of CHP system needs to comprehensively consider the energy demand, site conditions, budget and long-term economic benefits of the enterprise. First of all, it is necessary to evaluate the power and heat demand of enterprises to determine the system scale; Secondly, choose the appropriate fuel type (such as natural gas, biomass or other energy sources); Finally, cooperate with professional suppliers to ensure the best effect of system design, installation and operation, and maximize energy utilization efficiency and economic returns.
