Selecting the Suitable Gas Steam Boiler for Your Chemical Plant

Gas steam boilers play a crucial role in chemical production. Choosing the right gas steam boiler can not only enhance production efficiency but also reduce operating costs and ensure safe production. However, with numerous models and brands available in the market, how do you choose the most suitable gas steam boiler for your chemical plant? EPCB Boilers, with its extensive experience and expertise in the industry, can provide you with comprehensive guidance and assistance. This article will discuss the performance, energy efficiency, safety, environmental friendliness, and cost of boilers, combined with EPCB Boilers' professional advice, to support you in making an informed decision.

Introduction to Gas Steam Boilers

Gas steam boilers are high-efficiency energy devices that use gas as their primary energy source. They hold an important position in chemical plants. Firstly, steam boilers can produce high-temperature and high-pressure steam, which provides the necessary thermal energy for various processes in chemical production, such as chemical reactions, distillation, drying, heating, and sterilization. Secondly, the stability and reliability of steam boilers directly affect the continuity of chemical production and product quality.

When it comes to choosing the right steam boiler, the most critical factors are efficiency and safety. As a crucial and energy-intensive component in the internal operations of chemical plants, good efficiency can significantly reduce corporate costs and improve production efficiency, while safety directly impacts the entire system and the physical and mental health of employees.

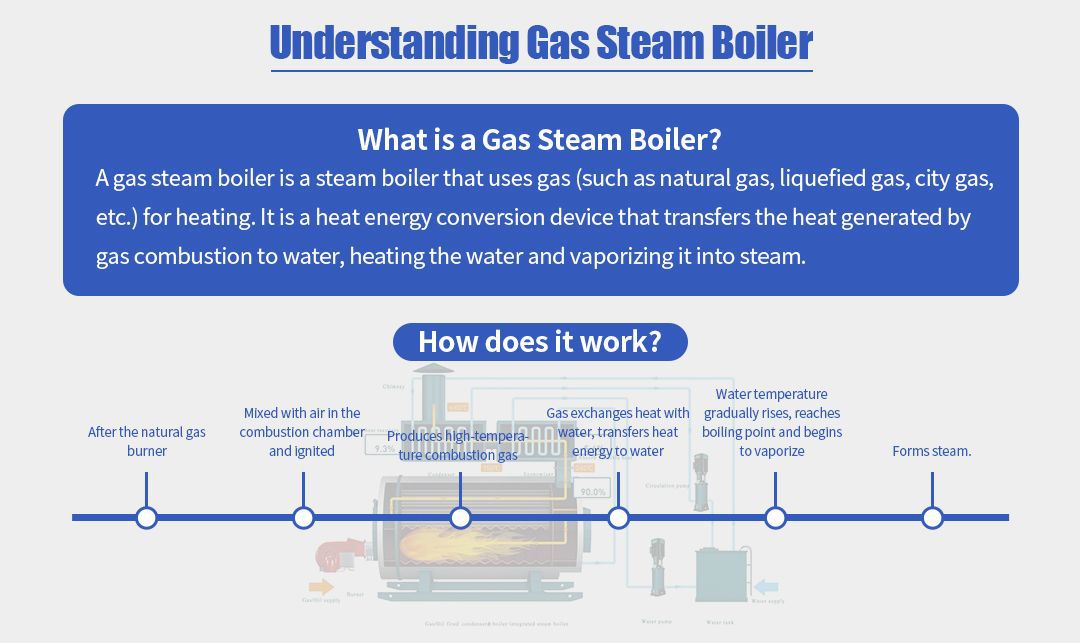

Understanding Gas Steam Boilers

Definition and Function

What is a gas steam boiler? A gas steam boiler uses gas (such as natural gas, liquefied gas, city gas, etc.) for combustion heating. It is a thermal energy conversion device that transfers the heat generated by gas combustion to water, heating the water and vaporizing it into steam.

How Does It Work?

The working principle of a gas steam boiler is relatively simple and efficient. Natural gas enters the burner, where it mixes with air in the combustion chamber and is ignited, producing high-temperature combustion gases. These combustion gases flow through pipes and flue tubes inside the boiler, exchanging heat with the water in the pipes and flue tubes. As the heat transfer continues, the water temperature gradually rises until it reaches the boiling point and begins to vaporize, forming steam. The steam is then discharged from the boiler and can be used for various process needs or as a power source.

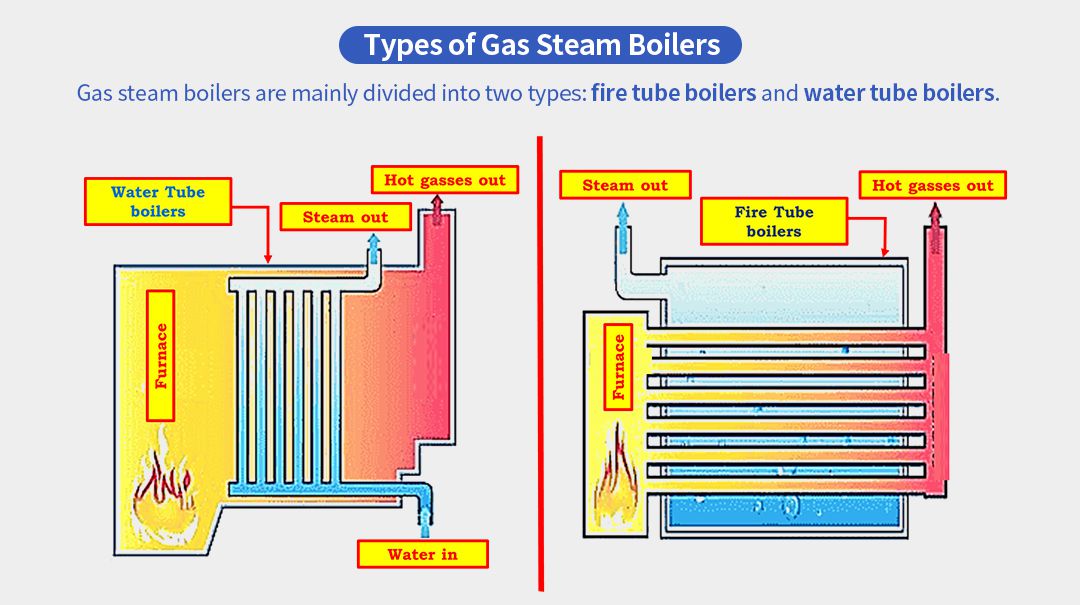

Types of Gas Steam Boilers

Understanding the main types of gas steam boilers is crucial when making a selection. Gas steam boilers are primarily divided into two types: fire-tube boilers and water-tube boilers. Each type has its unique features and applicable scenarios, so understanding their differences can help you make a choice that best suits your chemical plant’s needs.

Fire-tube Boilers: The core of fire-tube boilers lies in the high-temperature flue gases generated by the burner heating the water or mixture surrounding the outside of the threaded smoke tubes. For example, the WNS series fire-tube boiler adopts this structure. Fire-tube boilers are suitable for small-scale and low-pressure applications.

Water-tube Boilers: The principle of water-tube boilers involves water circulating inside the tubes to be heated. For example, the SZS series uses a full membrane water-cooled wall structure. Water-tube boilers are suitable for large-scale and high-pressure

environments.

Fire-tube boilers are widely used in chemical plants, especially where medium and small steam supplies are needed. Due to their compact structure, stable operation, and easy maintenance, they have become the preferred choice for many chemical plants. Water-tube boilers are more commonly used in large chemical plants, particularly where high-pressure steam supply is required, offering high thermal efficiency and good safety performance. However, they are larger in size, and installation and maintenance are relatively complex.

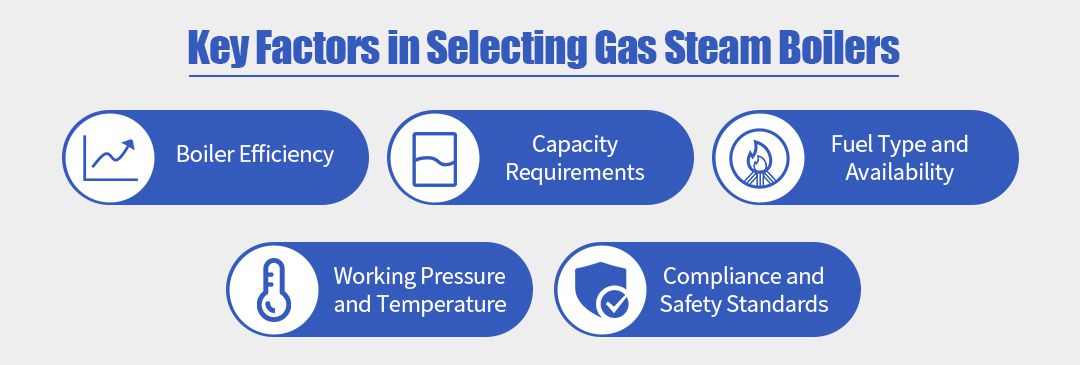

Key Factors in Choosing a Gas Steam Boiler

When selecting a gas steam boiler, it is essential to ensure that the chosen equipment can meet the plant's specific needs, improve efficiency, reduce costs, and ensure safety. The following are key factors to consider when choosing a gas steam boiler, forming the basis for decision-making to ensure long-term benefits and reliable operation.

Boiler Efficiency

Boiler efficiency is a crucial indicator for evaluating its performance, providing significant guidance for improving energy utilization efficiency and reducing energy waste. A high-efficiency boiler can produce more steam with the same fuel consumption, thereby reducing production costs.

How to Measure Boiler Efficiency?

· Direct Method (Positive Balance Method): This method calculates thermal efficiency by measuring the mass of steam output per unit time under stable operating conditions and the enthalpy increase of the steam, as well as the lower heating value of the fuel.

· Indirect Method (Negative Balance Method): This method estimates heat loss by measuring parameters such as flue gas temperature, flue gas volume, and fuel consumption. Then, it calculates thermal efficiency by comparing the total input energy with the effective utilized energy.

Capacity Requirements

The capacity of the boiler is usually expressed in tons of steam per hour. For example, the capacity of small boilers is below 2 tons of steam per hour, medium-sized boilers range from 2 to 75 tons of steam per hour, and large boilers have capacities above 75 tons of steam per hour. You need to consider the plant’s actual demand and scale, as well as the steam usage during the production process, to choose a capacity suitable for your plant.

Typically, small boilers occupy less space and are suitable for places with limited space, but their efficiency and steam supply capacity are relatively low. Large boilers have higher efficiency and steam supply capacity but correspondingly require more space and maintenance costs.

Fuel Type and Availability

The main fuel types for gas steam boilers include natural gas, liquefied petroleum gas (LPG), and city gas. Among these, natural gas is the most ideal fuel for boilers due to its clean, efficient, and environmentally friendly properties.

You can choose the appropriate fuel type based on the local energy supply situation and price. At the same time, consider the storage and transportation costs of the fuel, as well as its stability and reliability.

Operating Pressure and Temperature

Different industries and plants have different requirements for steam pressure and temperature. For example, the textile industry usually requires lower temperature and pressure steam, while the chemical industry may require high-temperature, high-pressure steam. The food processing industry’s steam pressure requirements vary by process. For example, sterilization and disinfection processes may require higher steam pressure, while cooking and drying processes may require lower steam pressure. When selecting a gas steam boiler, you must understand the plant’s specific needs to ensure the chosen equipment can meet these requirements while achieving efficient, safe, and economical operation.

The operating pressure and temperature range of the boiler should meet the actual needs of the plant. High-pressure boilers can provide higher steam temperatures and pressures, but their investment cost and operating risk are also higher.

Compliance and Safety Standards

When choosing a gas steam boiler, you must consider the relevant safety standards and regulations, such as safety requirements for boiler design, manufacturing, installation, operation, and maintenance. The design and manufacturing of the boiler must comply with local laws and standards. For example, the ASME (American Society of Mechanical Engineers) Boiler and Pressure Vessel Code is a globally recognized authoritative standard that imposes strict quality control requirements on the manufacturing process of boilers. The installation and operation of the boiler must follow relevant safety operating procedures and regulations to ensure the safe and stable operation of the equipment. For example, GB 50273 "Code for Construction and Acceptance of Industrial Boiler Installation Engineering" details the technical requirements and safety measures during the boiler installation process.

EPCB Case Study: Successful Implementation of Gas Steam Boiler

EPCB Boiler has over 70 years of experience and expertise in the boiler industry. Over the years, EPCB has continuously accumulated boiler installation and production experience, evolving from a boiler manufacturer to a comprehensive boiler system solution provider, offering boiler design, manufacturing, installation, and maintenance services. The products include various types of boilers such as coal-fired boilers, biomass-fired boilers, and oil and gas-fired boilers. EPCB's boiler equipment is well-received in the market for its high efficiency, energy-saving, and environmental protection characteristics.

Case Study

One of EPCB's clients in the chemical industry sought to update their boiler equipment and approached EPCB with the following specific needs:

· They needed a boiler capable of providing stable and efficient steam to meet their production line's requirements.

· With increasingly stringent environmental regulations, the client required the new boiler to significantly reduce pollutant emissions.

· They also hoped the new boiler would have low maintenance costs and be easy to maintain.

Before installing the new boiler, the chemical plant faced several challenges:

· The plant needed to consider equipment compatibility; the new boiler had to seamlessly integrate with the existing production line and other equipment to ensure smooth production.

· The chemical plant had limited space, requiring the new boiler installation not to occupy too much space.

· Due to the tight production line schedule, the client requested the new boiler installation and commissioning be completed in the shortest possible time.

EPCB provided a customized gas steam boiler solution tailored to the chemical plant's specific needs. The boiler used advanced combustion technology and control systems, featuring a high-efficiency burner and heat exchanger capable of quickly generating large amounts of steam to meet production line needs. The combustion process produced very low pollutants, well below national environmental standards. The boiler system was equipped with multiple safety protection systems to ensure safe operation under any circumstances.

By installing EPCB's gas steam boiler, the chemical plant achieved several efficiency improvements:

· The new boiler's steam output increased by 60% compared to the old boiler.

· Energy consumption decreased: due to high combustion efficiency, the new boiler's energy consumption was 50% lower than the old boiler.

· Additionally, the new boiler's pollutant emissions were far below national environmental standards, achieving green production.

EPCB's multiple safety protection systems ensured the boiler's safe operation under any circumstances. Moreover, the boiler's design and production met national and industry safety standards and environmental regulations, enhancing the chemical plant's safety and compliance.

Conclusion

Choosing the right boiler is crucial for any industrial, commercial, or household application. When selecting a gas steam boiler for a chemical plant, ensuring that the chosen equipment can meet production needs while excelling in safety and efficiency is vital. This article has detailed how to select a suitable gas steam boiler for a chemical plant from aspects such as performance, efficiency, safety, environmental friendliness, and cost.

The choice of boiler is not just a purchasing decision but a long-term investment. A suitable boiler can bring long-term economic and social benefits. Therefore, the selection process should be taken seriously to ensure the most suitable boiler for specific needs is chosen.

Finally, consulting professional boiler suppliers or industry experts, such as EPCB Boiler, for personalized advice and guidance is an essential step in ensuring the right boiler choice. Suppliers with extensive experience like EPCB can provide professional advice and comprehensive solutions based on your specific needs, helping you make the optimal choice.
