Strategies to Reduce Electricity Production Costs with Biomass Boilers

What is a Biomass Boiler?

A biomass boiler is a device that converts biomass energy into thermal energy by burning biomass fuel to heat water, generating steam or hot water for industrial or domestic use. The definition of this type of boiler is based on its characteristic as a renewable energy source, which has a relatively small impact on the environment.

The main components of a biomass boiler include the furnace, fuel feeding system, combustion system, heat exchanger, ash removal system, and control system. The working principle involves burning biomass fuel inside the furnace to release thermal energy, which is then transferred to water through a heat exchanger, heating it and producing steam.

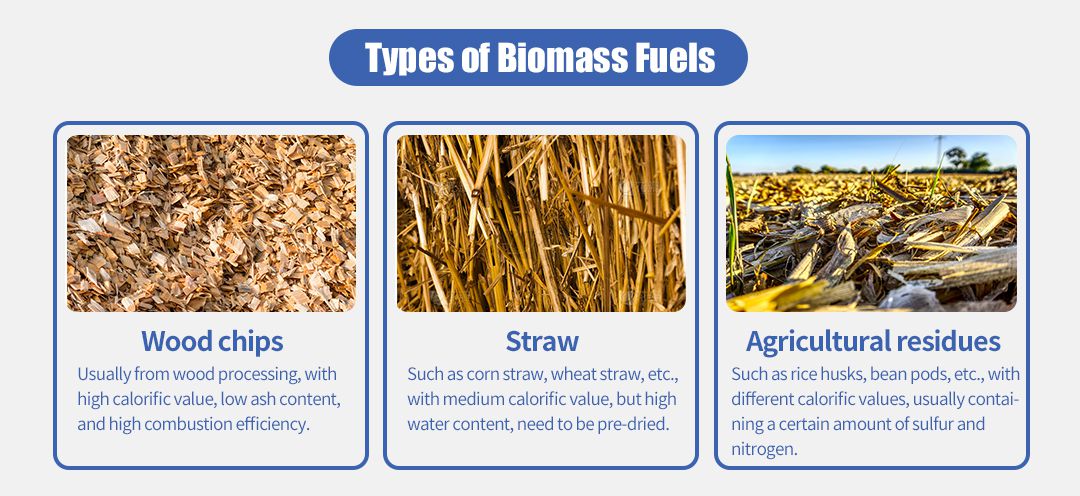

Types of Biomass Fuels

Biomass fuels mainly include organic materialssuch as wood chips, straw, and agricultural crop residues. These fuels come from by-products of industries such as agriculture, forestry, and wood processing, and are characterized by their renewability and environmental friendliness. Different types of biomass fuels have different calorific values and characteristics for use:

Wood chips: Typically sourced from wood processing, they have a high calorific value and low ash content, resulting in high combustion efficiency.

Straw: Such as corn stalks and wheat straws, have a moderate calorific value but contain high moisture content, which may require pre-drying treatment.

Agricultural residues: Such as rice husks and pods, with varying calorific values, usually contain certain amounts of sulfur and nitrogen, and attention should be paid to emission control during combustion.

The advantage of biomass boilers lies in their sustainability, reducing dependence on fossil fuels and lowering greenhouse gas emissions. However, the collection, storage, and processing of biomass fuels also present certain challenges. Choosing the right type of biomass boiler and fuel requires a comprehensive consideration of thermal efficiency, environmental impact, and economic costs. With technological advancements and increasing demand for renewable energy, biomass boilers are expected to play a more important role in the future energy structure.

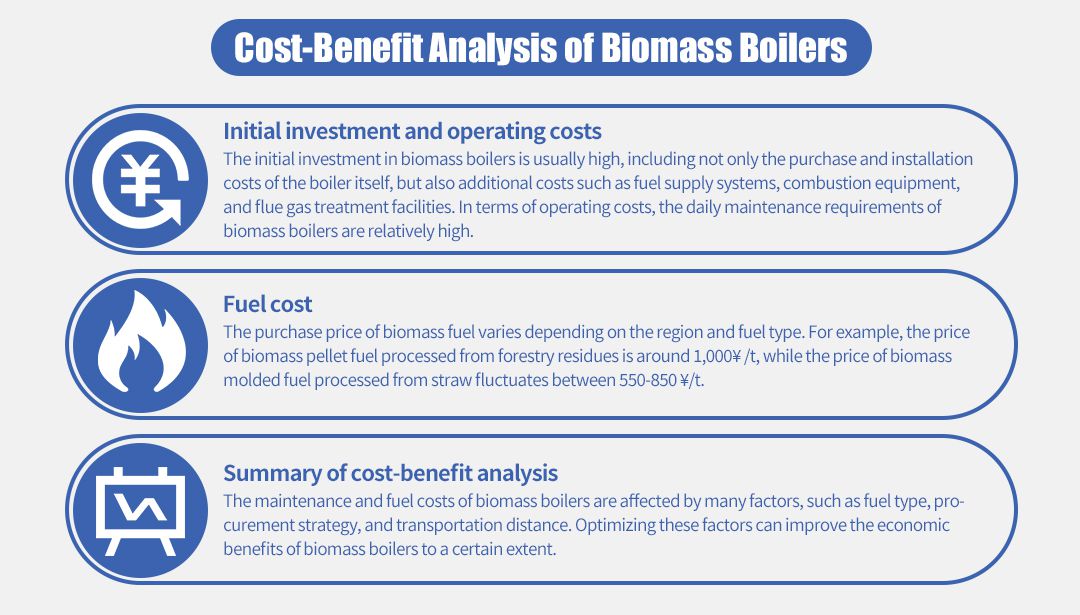

Cost-Benefit Analysis of Biomass Boilers

Initial Investment and Operating Costs

Compared to traditional coal-fired boilers, biomass boilers typically require a higher initial investment. This includes not only the cost of purchasing and installing the boiler itself but also additional costs associated with the fuel supply system, combustion equipment, and flue gas treatment facilities. However, as technology matures and production scales up, the initial investment cost for biomass boilers is gradually decreasing.

In terms of operating costs, biomass boilers have relatively high daily maintenance needs, but this can be mitigated by efficient fuel utilization and advanced combustion technology, thereby reducing energy consumption and operating costs.

Fuel Costs

The purchase cost of biomass fuel is a significant component of the operating costs for a biomass boiler. Prices can vary depending on the region and type of fuel. For example, the price of biomass pellet fuel processed from forestry residues in the southern regions is about 1000 yuan/ton, while the price of biomass briquette fuel processed from straw in the northern regions fluctuates between 550 and 850 yuan/ton. Fluctuations in fuel prices can significantly affect the overall cost of operating a biomass boiler. The transportation cost of biomass fuel also accounts for a considerable proportion, especially when the transportation distance exceeds 50 kilometers, the cost can rise sharply. Therefore, the economic benefits of a biomass boiler largely depend on the cost of fuel procurement and transportation.

Summary of Cost-Benefit Analysis

Although the initial investment and fuel costs for biomass boilers are relatively high, they offer a renewable energy solution that helps reduce dependence on fossil fuels and lower greenhouse gas emissions. In the long term, operating costs for biomass boilers are expected to decrease further with technological advancements and economies of scale. In addition, the maintenance and fuel costs for biomass boilers are influenced by various factors, including the type of fuel, procurement strategies, and transportation distances. Optimizing these factors can improve the economic benefits of biomass boilers to some extent. Ultimately, whether a biomass boiler is cost-effective needs to be comprehensively assessed based on specific project situations and long-term operating costs.

Strategies for Optimizing Biomass Boiler Operation

Improving Combustion Efficiency

The combustion efficiency of a biomass boiler is a key performance indicator. Firstly, fuel pretreatment technologies, such as drying and crushing, can significantly improve the uniformity and rate of fuel combustion, thereby enhancing combustion efficiency. Secondly, optimizing the combustion chamber design, such as increasing furnace height and stoker speed, can improve aerodynamics, ensuring adequate mixing of fuel with oxygen, and further improving combustion efficiency.

Advanced Control Systems

The application of automated control systems is crucial for the stable operation of biomass boilers. By monitoring and adjusting boiler operating parameters in real time, such as temperature, pressure, and fuel supply rates, the boiler can always operate at its best. Automated control systems can promptly respond to changes in the external environment and internal conditions, optimizing the combustion process through intelligent algorithms, reducing energy waste, and improving overall energy efficiency.

Regular Maintenance and Cleaning

Cleaning the interior of the boiler is essential for maintaining high efficiency and longevity. Regular cleaning not only removes accumulated ash and soot from the furnace, flue, and heat exchanger but also prevents corrosion and blockages, maintaining the boiler's heat exchange efficiency. In addition, establishing a maintenance plan that includes inspections, lubrication, and replacement of key components can prevent failures and ensure the reliability and safety of the boiler. Timely troubleshooting of common issues, such as leaks and drips, is also an indispensable part of maintenance work.

By implementing these strategies, biomass boilers can not only improve energy utilization efficiency and reduce operating costs but also reduce environmental pollution, achieving sustainable development. Regular assessments and upgrades, combined with the latest technological advancements, can further enhance the performance and economic benefits of biomass boilers.

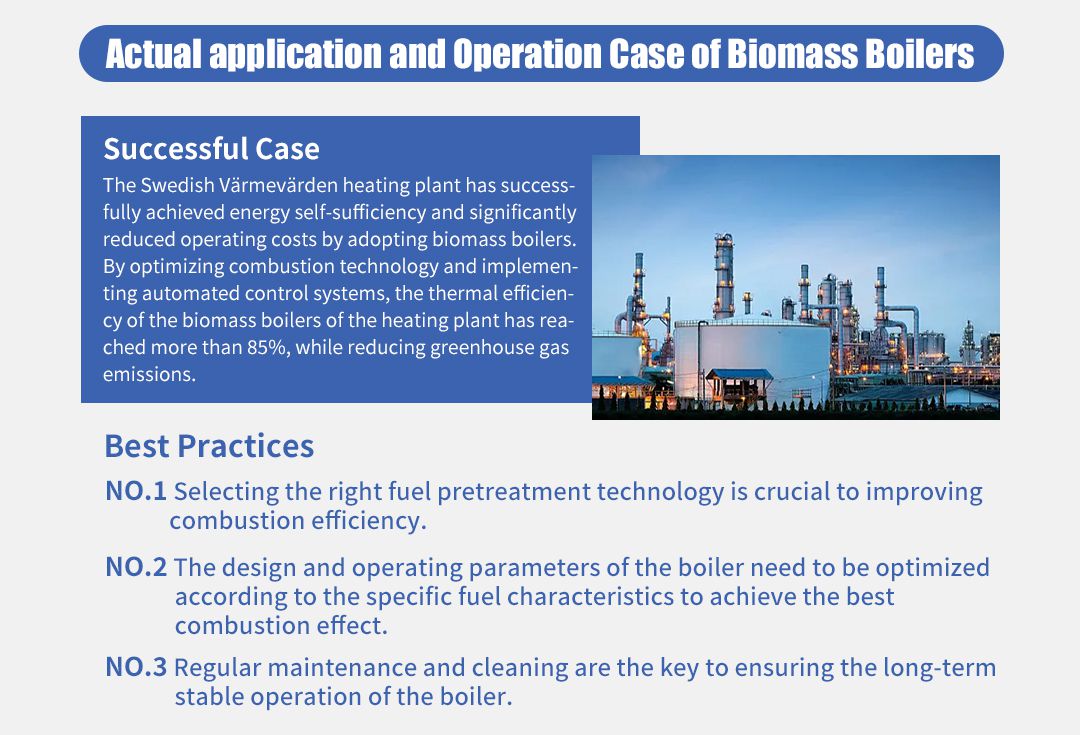

Case Studies of Biomass Boiler Operation in Practical Applications

Successful Case Studies

There are numerous successful applications of biomass boilers both domestically and internationally. For example, Sweden's Värmevärden heating plant has successfully achieved self-sufficiency in energy and significantly reduced operating costs by using biomass boilers. The plant uses locally abundant forestry waste as fuel and, through an efficient biomass boiler system, has not only reduced dependence on fossil fuels but also lowered energy costs by about 30%. Moreover, by optimizing combustion technology and implementing automated control systems, the heating plant's biomass boilers have achieved a thermal efficiency of over 85% while reducing greenhouse gas emissions.

Experience Sharing

From these successful cases, we can summarize some best practices. Firstly, selecting the appropriate fuel pretreatment technology is crucial for improving combustion efficiency. For instance, proper drying and crushing can enhance the calorific value and combustion rate of the fuel. Secondly, the design and operating parameters of the boiler need to be optimized based on the specific fuel characteristics to achieve the best combustion results. The application of automated control systems can monitor and adjust boiler operations in real-time, improving energy efficiency and reducing labor costs. Finally, regular maintenance and cleaning are key to ensuring the long-term stable operation of the boiler. By developing a detailed maintenance plan and promptly addressing issues, the boiler's lifespan can be extended, and the risk of unexpected shutdowns can be minimized.

Through these practical application cases, we can see the potential of biomass boilers in providing renewable thermal energy and the possibility of achieving cost-efficiency through technological innovation and meticulous management. These experiences offer valuable references for other regions and industries, helping to promote the widespread use of biomass energy.

Summary

From the above discussion on biomass boilers, cost-benefit analysis, operation optimization strategies, and practical application cases, we can see that biomass boilers, as a renewable energy technology, show unique advantages and potential in the context of global efforts to promote green and low-carbon development. From the successful case of the Värmevärden heating plant in Sweden, we have learned the economic and environmental benefits that biomass boilers can bring in practical applications.

To further enhance the performance of biomass boilers, reduce operating costs, and achieve sustainable energy utilization, EPCB Boiler is committed to providing customized solutions. We have a professional technical team and extensive industry experience to design and implement the most suitable biomass boiler systems according to the specific needs of different customers.

We encourage customers interested in biomass boilers to contact EPCB Boiler for more detailed information on products, technical support, and customized services. Let us work together to explore and achieve more efficient and environmentally friendly energy solutions, contributing to a greener and more sustainable future.

FAQs

What is a biomass boiler?

A biomass boiler is specifically designed to burn biomass fuels to produce thermal energy. Utilizing materials such as wood, agricultural waste, and forestry by-products, these boilers convert organic matter into energy sustainably. They are a more environmentally friendly alternative to traditional coal or oil-fired boilers, reducing reliance on fossil fuels and lowering greenhouse gas emissions.

What are the main advantages of biomass boilers?

The main advantages of biomass boilers include their environmental benefits and sustainability. They significantly reduce carbon emissions due to the carbon-neutral cycle of biomass growth and combustion. Additionally, biomass is a renewable resource that does not deplete like oil and coal. Economically, biomass fuels can offer potential cost savings, especially when sourced locally, reducing transportation costs and supporting the local economy.

How to optimize the operation of biomass boilers?

Optimizing the operation of biomass boilers can be achieved through various methods. Firstly, improving combustion efficiency can be done through fuel preprocessing such as drying, crushing, or pelletizing, which aids in more uniform and complete combustion. Secondly, using advanced control systems for real-time monitoring and adjustment of boiler parameters ensures optimal operation. Lastly, regular maintenance is essential for the boiler's reliability and safety, including cleaning, inspections, and part replacements.

What is the cost of biomass fuels?

The cost of biomass fuels is influenced by factors such as fuel type, regional availability, supply chain efficiency, and transportation distances. Although costs can fluctuate, biomass fuels are generally considered more cost-effective than traditional fossil fuels, particularly when considering long-term environmental benefits and sustainability. Technological advancements and economies of scale are expected to further reduce the cost of biomass fuels. Some users may opt for local sourcing of agricultural or forestry waste to manage costs, reduce transportation expenses, and support local economies.
