The Role of Steam Boilers in Textile Manufacturing

In the modern textile manufacturing process, the steam boiler plays a vital role. No matter spinning, weaving, dyeing and setting, stable and efficient heat energy supply is indispensable. By providing continuous and balanced high-temperature steam, the steam boiler not only ensures the smooth progress of each process, but also significantly improves the production efficiency and product quality. At the same time, the application of high-efficiency and energy-saving boilers will help reduce energy consumption and production costs and help textile enterprises achieve green and sustainable development.

EPCB Boiler, as a leading enterprise in boiler manufacturing in China, has been deeply involved in textile industry for decades. Today, it will discuss the types, applications, advantages and selection points of steam boilers, and reveal its irreplaceable role in modern textile manufacturing.

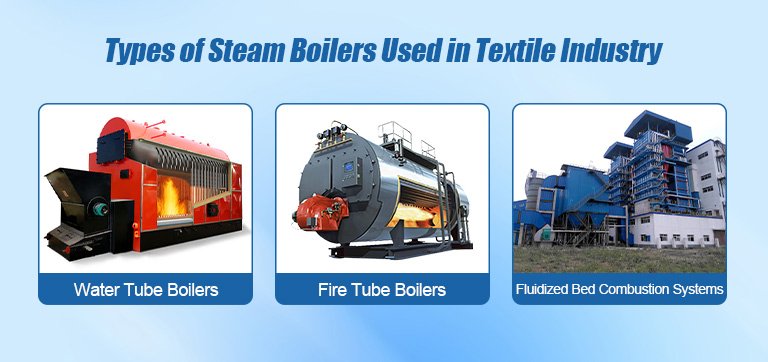

Types of Steam Boilers Used in Textile Industry

In the textile manufacturing process, different types of steam boilers play different roles according to process requirements, factory scale and energy efficiency requirements. Common types of steam boilers mainly include fire tube boilers, water tube boilers and fluidized bed combustion systems.

Fire Tube Boilers

Fire-tube boiler is a kind of boiler with relatively simple structure. Its working principle is to heat the high-temperature flue gas generated by the combustion of fuel (such as natural gas, diesel oil or coal) through the boiler pipeline and heat the water surrounding the pipeline, thus generating steam. This design makes the fire tube boiler easy to operate and maintain, and the initial investment cost is low.

Fired tube boilers are usually suitable for medium and low pressure applications, and the working pressure range is generally between 5 and 15 bar. Its thermal efficiency is mostly 70% to 80%, although it is slightly lower than other types of boilers, but it is enough for processes that do not need high-pressure steam.

Fire-tube boilers are usually suitable for small and medium-sized textile mills, especially for technological links with relatively small steam demand and low pressure requirements, such as fabric pretreatment, simple washing and drying processes. Its low cost and simple operation make it an entry choice for many textile enterprises.

Water Tube Boilers

The design of water-tube boiler is relatively complicated, and its working principle is that water flows in the boiler pipe, and the water pipe is heated by the high-temperature flue gas released by combustion outside. This structure helps to bear higher pressure and temperature, so it can provide a large number of high-quality steam to meet the needs of high temperature and high pressure in textile production.

The steam pressure of water-tube boiler can easily reach 30 bar or even higher, and the thermal efficiency is usually between 85% and 90%. Compared with fire tube boiler, water tube boiler has more advantages in energy efficiency and steam output.

Water tube boiler is more suitable for large textile enterprises, especially for dyeing, setting and other complex heat treatment processes that require high temperature and high pressure steam. Its efficient steam supply not only improves the production efficiency, but also ensures the dyeing uniformity and quality stability of textiles.

Fluidized Bed Combustion Systems

Fluidized bed combustion system is an advanced combustion technology, which realizes full combustion by suspending solid fuels (such as coal, biomass, waste, etc.) in high-speed flowing air. Its combustion temperature is lower and evenly distributed, thus improving the fuel utilization rate and reducing the emission of harmful gases.

The thermal efficiency of the fluidized bed combustion system can be as high as 90%, and at the same time, the emission of pollutants can be effectively reduced, in which the emission of sulfur dioxide (SOx) and nitrogen oxides (NOx) can be reduced by about 50%. In addition, the system can flexibly adapt to a variety of low-quality fuels and reduce operating costs.

Fluidized bed combustion system is especially suitable for textile enterprises that pay attention to environmental protection and energy saving. It not only helps enterprises to meet strict environmental protection laws and regulations, but also reduces energy expenditure through diversified fuel choices, which is suitable for large and medium-sized textile production bases with sustainable development strategies.

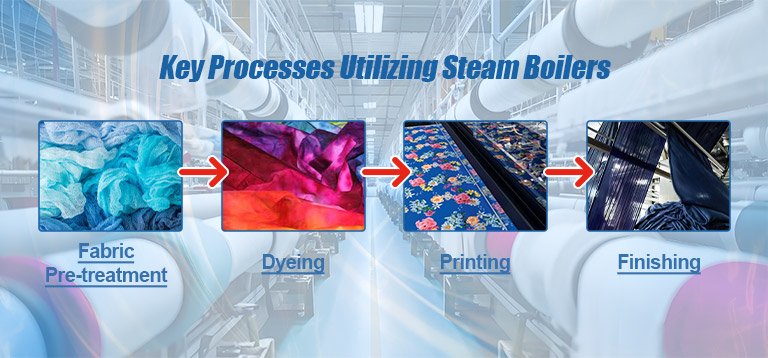

Key Processes Utilizing Steam Boilers

In the textile manufacturing process, steam not only acts as a power source, but also plays a core role in many key processes. From fabric pretreatment to dyeing, printing and finishing, the efficient and stable steam provided by steam boiler is directly related to product quality and production efficiency.

Fabric Pre-treatment

Fabric pretreatment is an important initial step of textile processing, which mainly includes cleaning, bleaching, degreasing and decontamination. The purpose of this link is to remove impurities and natural grease on the fiber surface and improve the effect of subsequent processes (such as dyeing and printing). In the pretreatment process, stable heat energy input is very important, and it is usually necessary to keep the treatment liquid at a constant temperature of 80-100 C by steam heating water bath or direct heating to ensure the removal effect.

In the process of Scouring and Boiling, it is usually necessary to use high-pressure steam of 10-15 bar to ensure that chemicals can give full play and improve treatment efficiency. Fire tube boiler is widely used in fabric pretreatment section of small and medium-sized textile mills because of its simple operation and satisfying pressure.

Dyeing

Dyeing is an important link to impart color to textiles, and high temperature and high pressure steam is helpful for dye molecules to penetrate into the fiber and fix color evenly. In the dyeing process, steam is usually needed to provide a stable high temperature environment of 120-150°C to ensure full color and good color fastness.

Because the dyeing process requires high steam pressure and temperature, water-tube boiler has become the first choice for dyeing workshops of large textile enterprises because of its high pressure capacity and high thermal efficiency. Its steam pressure can reach 30 bar, which ensures the accurate control of dye solution temperature and improves dyeing consistency and efficiency.

Printing

Textile printing needs to transfer the pattern to the fabric surface by mechanical means, and cure the pattern by steam. Steam can activate dyes or pigments in printing paste, improve permeability and adhesion, and thus enhance color vividness and durability. Printing process usually requires steam temperature to be maintained in the range of 100-130°C to ensure clear patterns and stable colors.

Fire tube boiler is widely used in small and medium-sized printing plants because of its simple structure and flexible response. Its steam pressure and temperature are enough to meet the requirements of ordinary printing process, and it is an ideal heat source for printing steam setting equipment.

Finishing

Finishing is the last process of textile processing, aiming at improving the appearance and properties of fabrics. Steam is widely used in shaping, ironing and softening processes to improve the dimensional stability, surface smoothness and hand feel of fabrics. This process usually requires the steam temperature to be kept at 90-110 C to ensure that the fabric achieves the expected texture and effect.

For textile enterprises with large production scale and pursuing energy conservation and environmental protection, fluidized bed combustion system is a preferred scheme. Its continuous and stable steam supply and high fuel utilization rate (thermal efficiency as high as 90%) are particularly suitable for high-load continuous operation requirements in finishing process, and at the same time, it can significantly reduce emissions and energy costs.

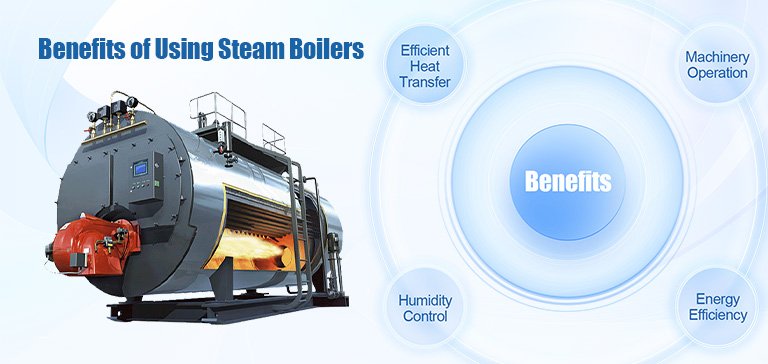

Benefits of Using Steam Boilers

In the textile industry, steam boilers play an important role in improving production efficiency, improving product quality and reducing operating costs.

Efficient Heat Transfer

Because of its high specific heat capacity (4.18 kJ/kg k) and latent heat characteristics, steam can transfer a lot of heat energy in a short time. Compared with other heating methods, such as electric heating, steam has faster heat transfer speed and higher efficiency. Steam releases latent heat in the exothermic process, which can instantly realize temperature equilibrium and ensure the accuracy and stability of heat treatment in textile processing process.

In actual production, the heating speed of steam heating is 20-30% higher than that of traditional electric heating system, which significantly shortens the heating time and improves the overall production efficiency. This is especially critical for temperature-sensitive processes such as dyeing and setting, and helps to ensure the uniformity of product quality.

Machinery Operation

Steam is not only used as heat energy, but also can directly drive the mechanical operation of textile equipment. For example, rolling mills, dryers and steam calenders in traditional textile mills realize mechanical power by driving pistons or turbines with steam. This way reduces the dependence on additional power or hydraulic power devices, simplifies the equipment system and improves the comprehensive operation efficiency.

In many textile mills, using steam to drive main production equipment can effectively reduce the configuration and maintenance requirements of other power systems, and reduce equipment complexity and operating costs. Compared with the traditional electric drive system, it simplifies the energy consumption structure of equipment and improves the energy efficiency.

Humidity Control

The steam boiler not only supplies steam for production, but also creates an ideal textile processing environment by adjusting the humidity in the workshop. Maintaining the environmental humidity between 50-60% is helpful to reduce the static electricity and brittle cracking of textile fibers during processing, improve the softness and strength of textiles and reduce the yarn breakage rate.

After adopting steam humidification system in textile workshop, the qualified rate and quality consistency of products are obviously improved. According to statistics, reasonable humidity control can reduce the fiber breakage rate and improve the overall product quality by about 5-10%, especially for high-grade cotton textiles and silk products.

Energy Efficiency

Modern steam boilers adopt energy-saving design and technology, such as waste heat recovery device (Economizer), condensate return water utilization and combustion optimization control, which can greatly improve energy efficiency. Waste heat recovery technology can improve boiler thermal efficiency by 10-15% and reduce energy waste. In addition, the fluidized bed combustion system further reduces the energy cost with its high combustion efficiency and fuel adaptability.

Textile enterprises that use fluidized bed combustion boilers can effectively reduce fuel procurement costs by using a variety of cheap fuels (such as biomass and low-quality coal). The overall operation data show that compared with the traditional coal-fired boiler, the fuel cost of fluidized bed system is reduced by about 20% on average, and it can meet the requirements of environmental regulations and realize the dual benefits of energy saving and emission reduction.

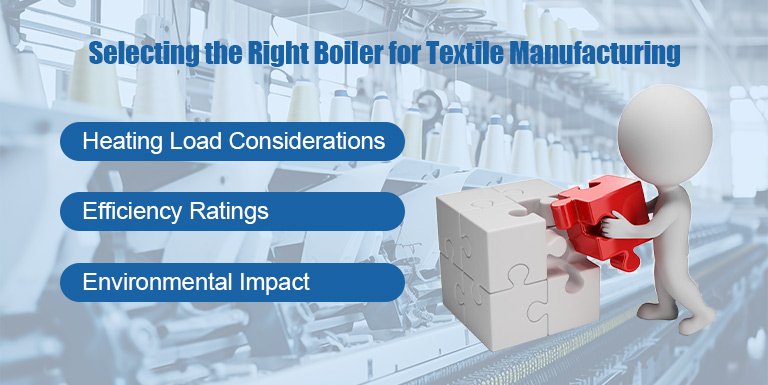

Selecting the Right Boiler for Textile Manufacturing

In the process of textile production, it is very important to choose a suitable steam boiler. It is not only related to the production efficiency and product quality of enterprises, but also directly affects energy consumption and environmental emissions. EPCB boiler will systematically analyze how to scientifically select the most suitable steam boiler for textile mills from three aspects: heat load demand, efficiency grade and environmental impact.

Heating Load Considerations

Correctly evaluating the heat load demand of a factory is the first step in choosing a boiler. Different production processes (such as pretreatment, dyeing, printing and finishing) in textile mills require different steam, so the required steam quantity must be calculated according to the process flow. The commonly used unit is kg/h (kg per hour), which indicates how much steam the boiler should provide per hour.

Factors to be considered in determining heat load requirements include:

• Production scale (capacity demand)

• Process temperature and pressure requirements

• Number of devices running at the same time

• Difference between peak and average steam demand

For example, a medium-sized textile factory may need a boiler to output 5,000-10,000 kg/h steam when performing high-temperature processes such as dyeing and setting. The factory should ensure that the rated steam output of the boiler not only meets the current demand, but also has 10-20% redundant capacity to cope with production expansion or load fluctuation.

Efficiency Ratings

The thermal efficiency of boiler directly affects energy consumption and operating cost. Generally, it is recommended to choose an efficient boiler with thermal efficiency above 85%. Especially in the context of rising energy costs and stricter environmental protection policies, boiler efficiency has become a key indicator to measure equipment performance.

In addition to paying attention to the efficiency index of the boiler, it is also necessary to consider the fuel type comprehensively. Natural gas boiler has high efficiency and low emission, and is the first choice for modern environmental protection textile mills. Biomass boilers are also environmentally friendly, but fuel supply depends on local resources; Although the operation cost of coal boiler is low, it needs to be equipped with perfect emission control facilities due to the restriction of environmental protection policy.

Give priority to boilers equipped with waste heat recovery device (Economizer) and condensation recovery system. These technologies can further improve the comprehensive energy efficiency by 10-15%. For example, the use of a water-tube boiler with a condensing waste heat recovery device can not only improve efficiency, but also reduce the exhaust temperature of the boiler and save fuel costs.

Environmental Impact

With the global attention to carbon emission control, the environmental performance of boilers has become an important standard for textile enterprises. Choosing boilers with high efficiency combustion system and low emission technology will help enterprises meet the requirements of local and even international environmental protection laws and regulations.

Key environmental indicators include:

• CO2 emission: Adopting efficient combustion system can reduce CO2 emission by 20%.

• NOx and SOx emissions: Choosing low-nitrogen burners and desulfurization systems will help reduce the emissions of nitrogen oxides and sulfur dioxide.

• Particulate matter emission: equipped with high-efficiency dust removal equipment to reduce dust pollution.

• Fluidized bed combustion boiler is a better choice for environmental protection. It can effectively reduce NOx and SOx emissions (by about 50%) through fuel suspension combustion and staged combustion technology, and allow the combustion of a variety of low-pollution fuels, such as biomass and waste, to help enterprises achieve green production.

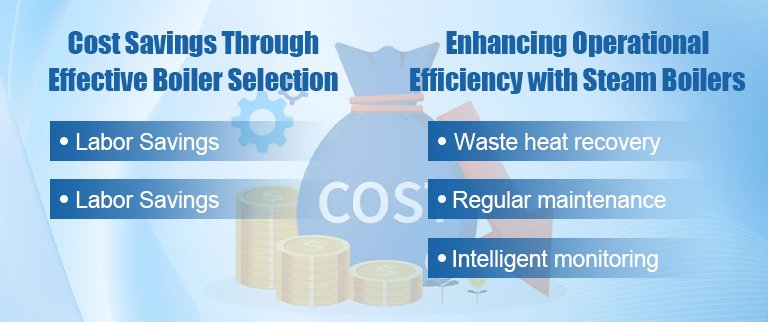

Cost Savings Through Effective Boiler Selection

In textile manufacturing industry, steam boiler is a big energy consumer, and its operation efficiency and management level directly affect the overall production cost. By selecting and configuring the boiler system scientifically and reasonably, we can not only improve the energy utilization efficiency, but also significantly reduce the operating expenses such as labor and maintenance, and help enterprises achieve cost optimization and profit growth.

Labor Savings

Modern automatic boiler system integrates advanced control technologies, such as automatic ignition, automatic water intake, automatic pressure and temperature adjustment, fault alarm system, etc., which greatly reduces the dependence on manual operation. Traditional boilers need full-time operators to monitor and adjust frequently, while highly automated boilers can realize remote monitoring and automatic operation through intelligent control systems, thus reducing the need for operating posts and manual attendance.

The data show that the steam boiler with automatic control system can reduce the labor cost by 10-15% compared with the traditional manual operation. After upgrading automation, only 1-2 technicians are needed to monitor and inspect the boiler room, which originally required 3-5 boiler workers to be on duty in shifts, thus greatly reducing manpower expenditure. At the same time, the automation system effectively reduces human operation errors, improves operation safety and boiler life, and indirectly reduces accident handling and emergency maintenance costs.

Maintenance Costs

The maintenance cost of different types of boilers is different, so the reasonable selection of boiler model and structure will significantly affect the maintenance frequency and cost in the later period.

• The structure of Fire Tube Boilers is relatively simple, which is convenient for overhaul and maintenance. According to industry experience, the annual maintenance cost of fire tube boilers is generally about 5% of the purchase cost of boilers. The equipment has low initial investment, simple maintenance and relatively low annual maintenance cost, which is suitable for small and medium-sized textile mills.

• Although Water Tube Boilers are more efficient, the maintenance cost is relatively increased due to the complex structure. Especially under high pressure and high temperature operation conditions, there are higher requirements for water quality treatment and wear-resistant parts replacement. Strict water quality management and periodic maintenance are needed, but efficient operation can reduce energy consumption and bring energy-saving benefits, which can make up for part of maintenance investment.

• The boiler with fluidized bed combustion system has high combustion efficiency and stable operation. Although the initial investment is high, the long-term maintenance cost is low because of less wear and fouling. Equipped with efficient dust removal and combustion system, it can reduce the wear and pollution of combustion chamber, reduce the frequency of maintenance and downtime. From the long-term operation, the maintenance cost control is better than the traditional coal-fired boiler.

Enhancing Operational Efficiency with Steam Boilers

Waste heat recovery: turning waste into treasure and reducing energy waste.

During the operation of steam boilers, a lot of high-temperature flue gas and sewage are often produced. If these waste heat is directly discharged, it will cause huge energy waste. Through the waste heat recovery system, these waste energy can be effectively utilized and the overall thermal efficiency can be improved.

Flue gas waste heat recovery

Using waste heat recovery devices (such as economizer, air preheater, etc.), the sensible heat recovery of flue gas is used to heat boiler feed water or air needed for combustion. This process not only reduces fuel consumption, but also reduces flue gas temperature and prolongs the service life of equipment such as chimneys. Recovery of flue gas waste heat can improve boiler efficiency by about 5% to 10%, and save a lot of fuel costs every year.

Waste heat utilization of sewage

The high-temperature wastewater discharged in the process of sewage discharge can recover heat energy through the heat exchanger to supplement water preheating or other process requirements, thus reducing energy waste. Some enterprises can save energy by 3%-6% annually through waste heat recovery.

Regular maintenance: keep efficient operation and avoid energy loss.

After long-term operation of steam boilers, the furnace tubes and heat exchange surfaces are prone to fouling or scaling, which leads to the decrease of heat transfer efficiency and the increase of fuel consumption. By making a scientific regular maintenance plan, the best working condition of the equipment can be effectively maintained.

Regular cleaning and maintenance every year.

Regular cleaning of key parts such as boiler water wall, heating surface and flue pipe to remove scale and smoke scale can significantly improve heat exchange efficiency. The research shows that thorough cleaning can reduce energy consumption by about 5% every year, reduce operating costs, and standardize maintenance can also prolong the life of equipment and reduce failure rate and downtime.

Preventive maintenance and inspection

Through regular inspection and testing, hidden dangers such as equipment wear and corrosion can be found in time to prevent accidents and ensure safe and efficient operation of boilers.

Intelligent monitoring system: real-time optimization to achieve intelligent energy saving.

With the development of industrial automation and digitalization, the application of intelligent monitoring system for steam boilers has become an important means to improve operational efficiency.

Real-time data acquisition and analysis:Cleaning the water wall, heating surface and smoke pipe regularly to remove scale and smoke scale can improve thermal efficiency, reduce energy consumption by about 5%, reduce operating cost, prolong equipment life and reduce the risk of failure and shutdown.

Remote monitoring and fault early warning:With the help of Internet of Things and cloud platform, remote monitoring and automatic alarm can be realized, and faults can be checked in time to reduce unplanned downtime. At the same time, the boiler operation efficiency is improved and the cost of manual inspection is reduced.

Alternative Heating Systems: Thermal Oil Boiler

In the modern industrial heating system, thermal oil boiler, as an efficient and stable alternative heating solution, has attracted more and more attention in different fields, especially in the application scenarios that require high temperature, stable heating and avoid high-pressure boiler systems.

Working principle

Heat conduction oil heater uses organic heat transfer oil as the medium to transfer heat energy through a closed circulation system. The burner burns natural gas or diesel oil to heat the heat transfer oil in the heat exchange tube bundle, and then the high-temperature heat transfer oil is transported by the oil pump to the reaction kettle, dryer and other equipment to release heat and then return to the heater for circulation. The system adopts closed-circuit design to avoid high-temperature medium contacting with air, reduce oxidation and pollution, and improve safety. It is characterized by using heat transfer oil as heat transfer medium, relying on high-temperature oil pump to force liquid phase circulation, and realizing the heating demand up to 300°C under normal pressure.

Advantages

1. High temperature and low pressure operation, strong safety.

Heat transfer oil system can achieve high temperature above 300°C under normal pressure, avoiding high-pressure operation, reducing explosion risk, and improving safety and operation convenience.

2. The system is simplified and easy to operate.

The water treatment and condensation recovery system is omitted, the structure is simpler, the operation is intuitive, frequent water replenishment and sewage discharge are not needed, and the workload of operation and maintenance is reduced.

3. Stable heat transfer and high temperature control accuracy.

Heat transfer oil has large heat capacity and stable flow, and is suitable for processes with high temperature control accuracy (controllable within ±1°C), especially for precise industrial processes such as chemical industry, pharmacy and food.

4. No scale scaling problem.

There is no need to worry about scale, corrosion, tube explosion and other issues, and the heat transfer oil system has a long maintenance cycle and low failure rate.

Shortcomings

1. Low thermal efficiency

The comprehensive thermal efficiency of heat conduction oil heater is generally 70%-80%, which is lower than that of steam boilers, with low energy utilization rate and high fuel consumption in long-term operation.

2. Deterioration of thermal oil

Heat transfer oil is easy to oxidize and crack when it runs at high temperature for a long time, resulting in increased acid value and carbon deposition, which needs to be tested and replaced regularly, increasing operating costs. Overtemperature or improper use will accelerate the deterioration of oil products.

3. Environmental protection issues

The replacement and treatment of heat transfer oil should meet the requirements of environmental protection, and the cost of waste oil treatment is high. Although the risk of oil leakage is small, once it leaks, it is complicated to deal with and affects environmental protection and safety.

4. Investment cost

The initial construction investment is high, especially the high-temperature heat transfer oil system and supporting equipment (such as high-temperature oil pump and pipeline insulation) have high requirements for materials, which leads to increased costs.

Conclusion

Steam boiler plays an indispensable role in modern textile manufacturing, providing reliable and efficient heat energy for key processes such as fabric pretreatment, dyeing, printing and finishing. By providing stable and accurate heat, the steam boiler can not only improve the product quality, but also improve the production efficiency, ensure the best mechanical performance and maintain the necessary humidity level in the textile mill. In addition, choosing the right boiler type-whether it is fire tube, water tube or fluidized bed combustion system-can significantly save energy, reduce environmental impact and reduce operating costs.
