What Is Thermal Shock In A Boiler? A Comprehensive Analysis Of Epcb Boiler

In the operation of industrial steam boilers, "thermal shock" is a crucial concept, which refers to the mechanical stress borne by boiler components due to the rapid change of temperature. If this phenomenon is not effectively controlled, it may lead to boiler structural damage, component fatigue and even serious failure, which will further affect the service life of the equipment and the overall operation safety. Therefore, understanding the causes and consequences of thermal shock is very important to ensure the safe operation of boilers.

In order to solve the problem of thermal shock, effective management measures can not only significantly improve the safety of boilers, but also optimize operating efficiency and reduce maintenance and energy costs. Therefore, choosing a boiler with excellent thermal shock resistance is a crucial investment for enterprises.

As a reliable boiler manufacturer, EPCB Boiler has always been committed to providing safe and reliable boiler solutions. With advanced technology and rich industry experience, EPCB Boiler ensures that its products can effectively meet the challenges brought by thermal shock and help enterprises achieve efficient and stable steam supply.

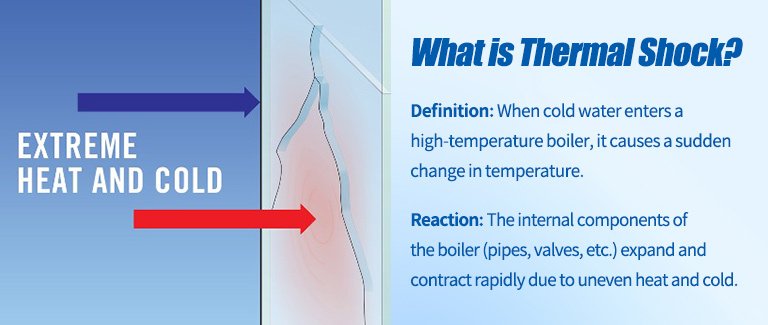

What is Thermal Shock?

Thermal shock refers to the physical stress phenomenon caused by the drastic change of temperature when cold water enters the boiler running at high temperature. This drastic temperature change will cause the boiler structure to experience extreme thermal stress changes in a short time, which will affect the stable operation of the equipment.

Under the action of thermal shock, the key components inside the boiler, such as pipes, valves and heating surfaces, have uneven thermal expansion and contraction due to uneven cold and heat. This rapid change may lead to material deformation, damage to the joint, and even affect the sealing and heat transfer efficiency of the boiler.

It is difficult for boiler materials to fully adapt to temperature changes under the influence of instantaneous temperature difference, which leads to the continuous accumulation of internal stress. If this happens for a long time, metal fatigue, microcracks and even fractures may occur in boiler parts, which may lead to boiler leakage or failure in serious cases, threatening the safety and service life of equipment. Therefore, controlling and preventing thermal shock is an important link to ensure the stable operation of the boiler.

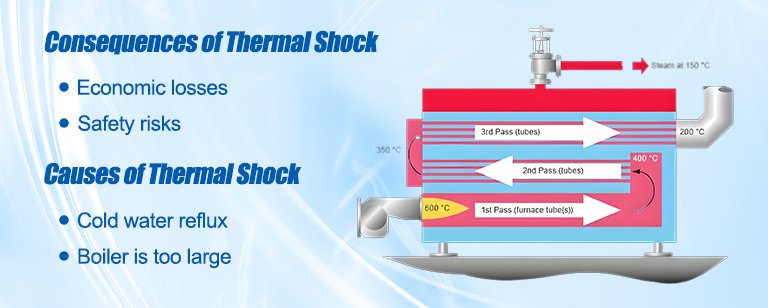

Consequences of Thermal Shock

The consequence of thermal shock is not only the damage of equipment, but also huge economic losses. In extreme cases, the risk of boiler explosion will also cause great property losses and personal injuries.

Economic Losses

Thermal shock will cause serious damage to the key components of the boiler, such as pipes, valves and heating surfaces. Due to uneven cold and heat, materials fatigue and cracks may occur, and damaged parts may need frequent maintenance or replacement, and the maintenance cost may be as high as thousands or even tens of thousands of yuan. In addition, the downtime caused by boiler failure will affect the normal production and operation, further increasing the economic losses of enterprises.

Security Risk

In extreme cases, long-term thermal shock may cause structural damage to the boiler, and even lead to explosion accidents, resulting in serious property losses and personal injuries. This not only affects the normal operation of the factory, but also may lead to legal responsibility and regulatory punishment. Therefore, controlling thermal shock is the core problem to ensure the safe operation of boilers.

EPCB Boiler adopts advanced boiler design and manufacturing technology to reduce the risk of thermal shock from the source. By optimizing the water circulation system, using high-quality heat-resistant materials and equipped with intelligent temperature control system, EPCB boiler can effectively reduce the influence of temperature fluctuation on the internal structure of boiler and improve the operation stability. Choosing EPCB Boiler can not only reduce the maintenance and operation costs, but also ensure the long-term safe and reliable operation of boilers and avoid the potential risks caused by thermal shock.

Causes of Thermal Shock

The main causes of thermal shock include cold water reflux and boiler oversize.

Cold Water Reflux

When the cooled backwater directly enters the high-temperature boiler system, the sharp change of temperature will lead to strong thermal stress impact on the internal structure of the boiler. Especially in the case that the backwater temperature is too low or has not been preheated, uneven cooling and heating will aggravate the expansion and contraction of boiler pipes and heating surfaces and increase the risk of material fatigue.

Boiler is too Large

If the boiler is improperly selected, the capacity is too large, and the actual steam consumption of the system is low, the circulating water will be reduced, which will increase the temperature difference of water in the boiler. In this case, the temperature changes more violently, and the boiler is more susceptible to thermal shock. In addition, too large a boiler may lead to a decline in combustion efficiency, further affecting the operation stability and economy.

EPCB Boiler has rich experience in boiler customization and selection, and can accurately match the appropriate boiler model according to the specific needs of customers, so as to avoid thermal shock caused by excessive boiler capacity. At the same time, EPCB adopts an optimized water circulation system to ensure uniform temperature distribution inside the boiler, reduce local temperature difference, reduce the risk of thermal shock from the source, and improve the safety and service life of the boiler.

How to Prevent Thermal Shock

In the operation of industrial boiler system, thermal shock is a common but serious hazard, which may lead to equipment damage, pipeline cracking and even safety accidents. Therefore, it is very important to take effective preventive measures to ensure the smooth operation of the system, reduce maintenance costs and improve overall safety and efficiency.

Operation Cycle Control

Frequent startup and shutdown of the boiler or short operation cycle will easily lead to cold water flowing back into the high-temperature system, which will lead to drastic temperature changes. The risk of thermal shock can be effectively reduced by optimizing operation strategy and reducing unnecessary start-stop times. In addition, keeping the boiler running in a stable load range is helpful to improve the overall operating efficiency and service life.

Temperature Equalization

When the boiler is running, the temperature of the furnace body and shell should be kept consistent or similar as far as possible to avoid uneven heating of boiler materials due to excessive temperature difference. By optimizing the insulation design, preheating the inlet water or adopting a reasonable heat distribution scheme, the local stress inside the boiler can be reduced and the influence of thermal shock can be reduced.

Flow Control

The control of water inflow speed and water quantity is very important for the stable operation of the boiler. A large amount of cold water enters the boiler in an instant, which will lead to a sudden drop in local temperature, thus causing the non-uniformity of material expansion and contraction. Using frequency conversion water pump or buffer water tank and other adjustment means can realize smooth water flow adjustment, ensure more uniform temperature change and reduce the risk of thermal shock.

Suitable Size

Choosing a boiler that matches the capacity demand is one of the key factors to reduce thermal shock. Excessive boiler size will lead to uneven water circulation and increased temperature difference, which will further aggravate the thermal shock phenomenon. EPCB Boiler provides tailor-made boiler solutions, accurately matches the appropriate boiler model according to customers' production needs, ensures efficient and stable operation, reduces the risk of thermal shock from the source, and provides safe and reliable steam supply solutions for enterprises.

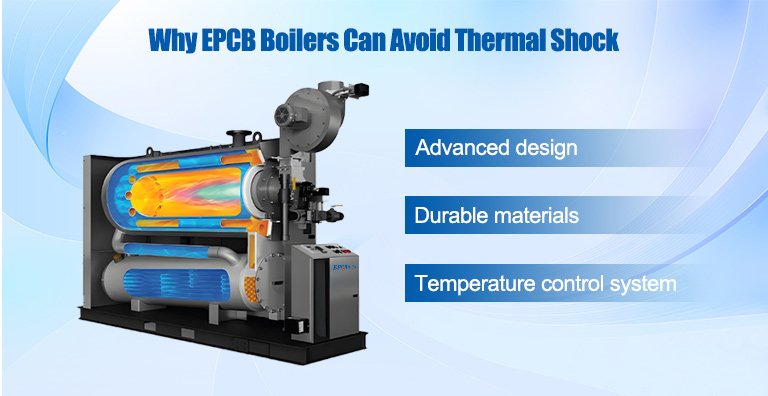

Why can EPCB boiler avoid thermal shock?

In the process of boiler operation, thermal shock may lead to equipment damage, pipeline cracking and system instability, and EPCB boiler can effectively avoid this problem through advanced design and intelligent control.

Advanced Design

EPCB boiler adopts optimized structural design, such as water tube boiler or other mixed boilers, which can effectively disperse temperature shock and reduce the influence of local temperature difference on boiler components. The water circulation of water tube boiler is smoother, which makes the temperature distribution of heating surface more uniform, thus reducing the stress accumulation caused by uneven cold and hot, and improving the operation stability of boiler.

Durable Material

EPCB boiler adopts high-quality boiler special steel and high-temperature resistant accessories to ensure that the equipment can withstand long-term heat load and temperature changes. These materials have excellent thermal fatigue resistance, which can maintain structural integrity even under long-term operation or large temperature fluctuation, effectively prolong the service life of boilers and reduce maintenance costs.

Temperature Control System

EPCB boiler is equipped with an accurate temperature control system, which can monitor the inlet water temperature and flow rate in real time and make intelligent adjustment, so as to avoid sharp temperature difference caused by a large amount of cold water entering the boiler instantly. Through this system, the boiler can maintain a more stable temperature gradient, reduce the risk of thermal shock and improve the overall operating efficiency.

EPCB has always been committed to providing customers with boiler solutions with high safety, high efficiency and high stability. Its advanced design, durable materials and intelligent temperature control system work together, which not only reduces the impact of thermal shock on the boiler, but also greatly reduces the equipment maintenance cost and accident rate, ensuring the continuity and reliability of enterprise production. Choosing EPCB boiler means choosing a safer, more energy-saving and more durable steam solution.

Conclusion

Although thermal shock is a common challenge in the operation of industrial boilers, it can be effectively prevented through correct knowledge, scientific operation management and high-quality equipment. Choosing suitable boiler design, durable materials and accurate temperature control system is the key to ensure the safe operation of boilers, prolong service life and reduce operating costs.

With its profound experience and technological innovation in the field of industrial boilers, EPCB Boiler has always been committed to providing safe and reliable boiler solutions. Its advanced design, high-quality materials and intelligent control system ensure that the boiler can run stably and efficiently under various working conditions and help enterprises avoid the risks brought by thermal shock.

The safety and efficiency of boilers are directly related to the production and operation of enterprises and cannot be ignored. We call on all industrial users to give priority to the safety of boilers and choose professional and reliable manufacturers as partners. Choosing EPCB Boiler means choosing a safe, efficient and sustainable steam solution.

FAQ

Q1: What is thermal shock in a boiler?

Thermal shock means that when cold water enters a high-temperature boiler, the internal components of the boiler (such as pipes, valves and heating surfaces) are subjected to severe stress due to extreme temperature changes. This phenomenon will lead to uneven expansion and contraction of materials, which may lead to fatigue, cracks and even serious damage of components in the long run, affecting the safety and service life of boilers.

Q2: How can I judge whether my boiler is at risk of thermal shock?

If the temperature difference between the inlet water temperature and the inside of the boiler is too large, abnormal sound (such as cracking sound or metal rubbing sound), abnormal pressure fluctuation, or frequent damage of components, etc., it may face the risk of thermal shock. These phenomena indicate that the internal structure of the boiler may be affected by stress due to uneven cold and hot, and long-term operation may lead to material fatigue and shortened equipment life. In order to ensure the safe and stable operation of the boiler, it is suggested to contact EPCB Boiler professional team in time for evaluation and obtain targeted solutions.

Q3: Why choose EPCB Boiler to prevent thermal shock?

EPCB Boiler effectively reduces the risk of thermal shock through multiple technical means to ensure the long-term stable operation of the boiler. Accurate selection according to the needs of enterprises to avoid excessive boiler or uneven circulation; Adopt optimized water circulation structure, such as water tube boiler or mixed design, to ensure uniform temperature distribution and reduce stress accumulation; Use high-quality heat-resistant steel and components to improve thermal shock resistance and prolong boiler life; Equipped with intelligent temperature control system, the inlet water temperature and flow rate can be accurately adjusted to prevent cold water from entering the high temperature area instantly and minimize the impact of thermal shock.
